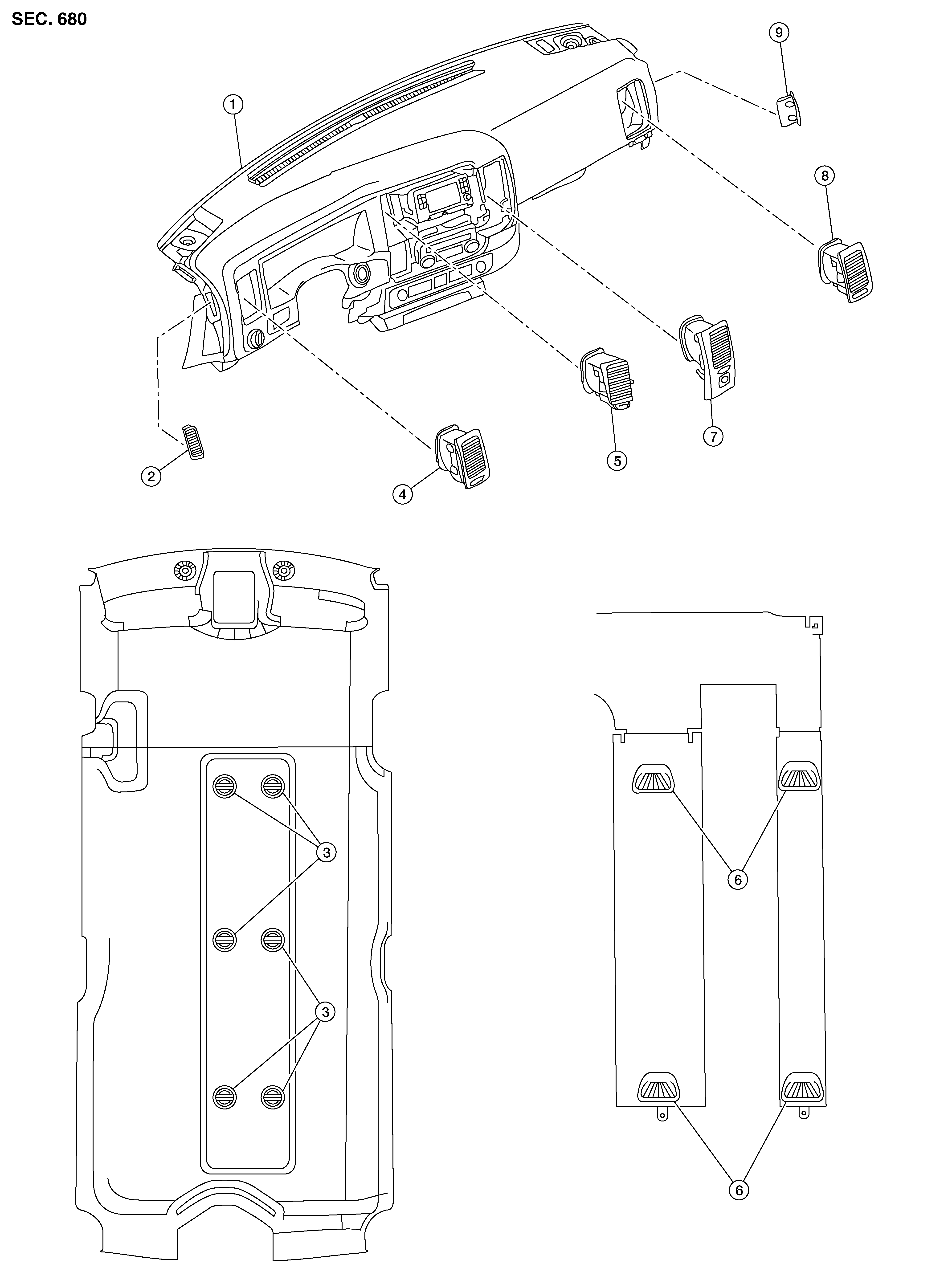

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
Grilles
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Instrument panel
|
2.
|
Side defroster grille (LH)
|
3.
|
Rear ventilator grille (if equipped)
|
|
4.
|
Side ventilator grille (LH)
|
5.
|
Center ventilator grille (LH)
|
6.
|
Rear floor grille (if equipped)
|
|
7.
|
Center ventilator grille (RH)
|
8.
|
Side ventilator grille (RH)
|
9.
|
Side defroster grille (RH)
|
