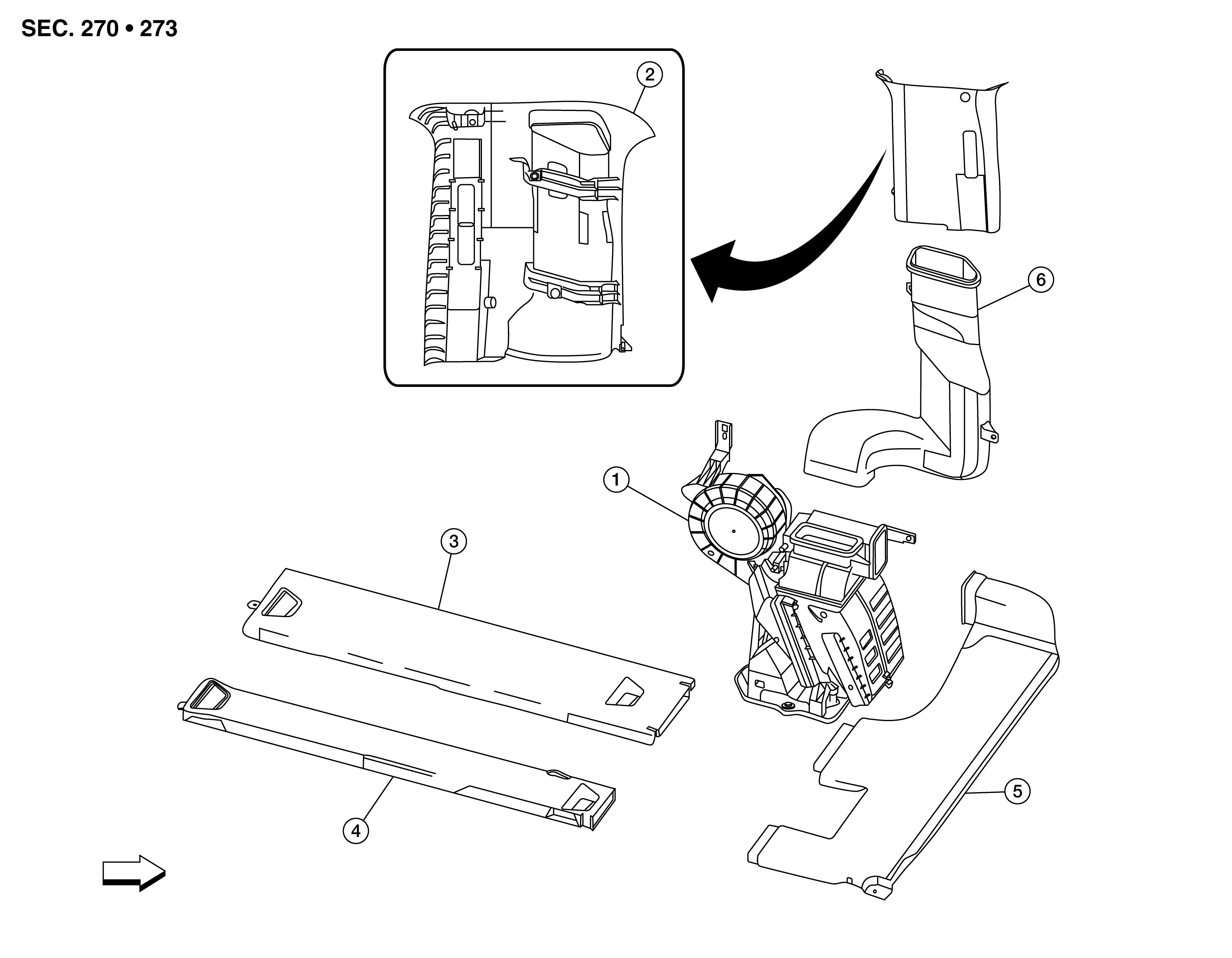

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Rear heating and cooling unit assembly
|
2.
|
Center upper pillar finisher (LH) (rear ventilator duct upper)
|
3.
|
Rear floor duct (LH)
|
|
4.
|
Rear floor duct (RH)
|
5.
|
Rear floor connecting duct
|
6.
|
Rear ventilator duct lower
|
|
|
Front
|
