Blower Motor: Component
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

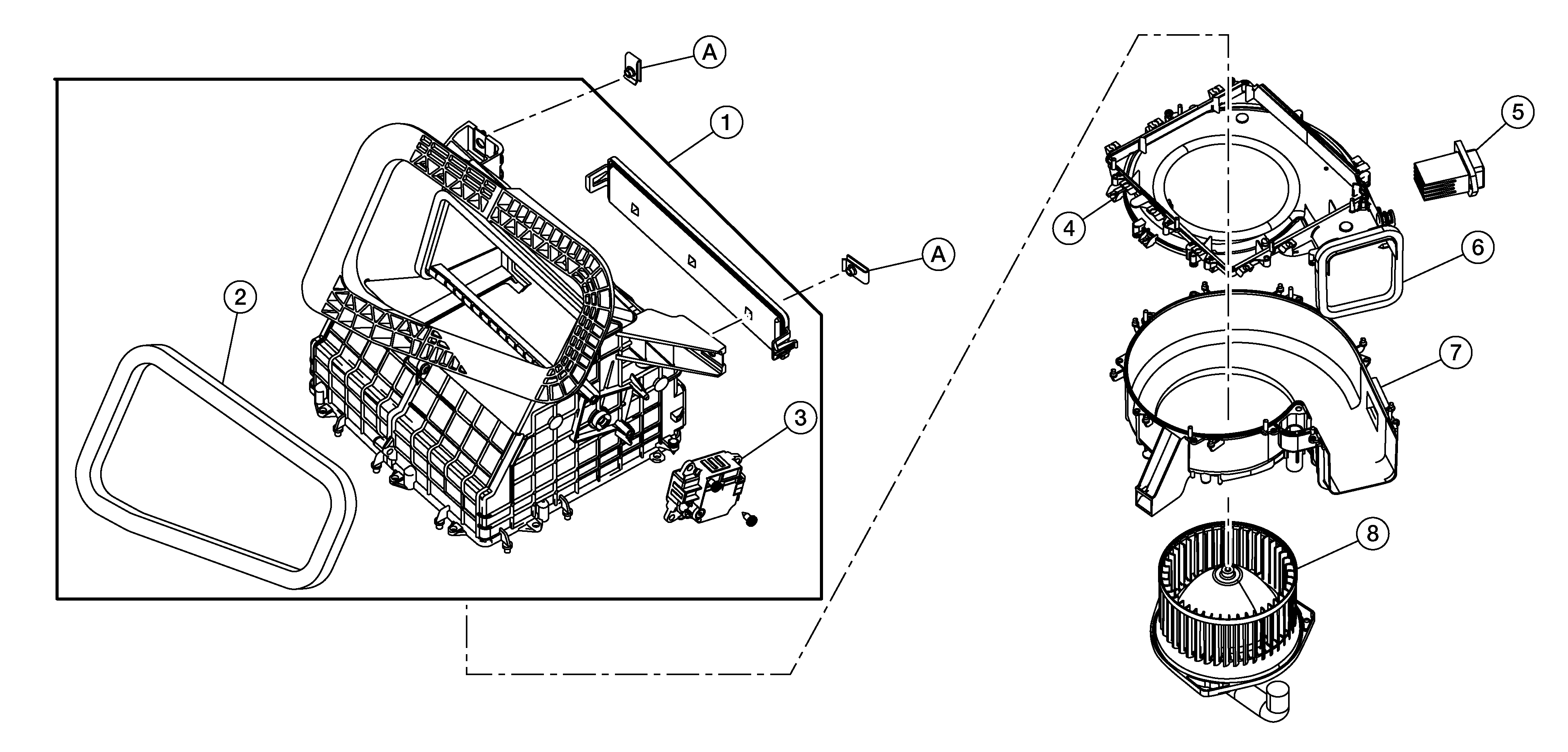

Front Blower Motor Assembly
|
1. |
Upper blower motor unit assembly |
2. |
Blower unit seal |
3. |
Intake door actuator |
|
4. |
Lower blower unit duct |
5. |
Power transistor |
6. |
Blower unit seal |
|
7. |
Lower blower motor cover |
8. |
Front blower motor |
A. |
Nut |

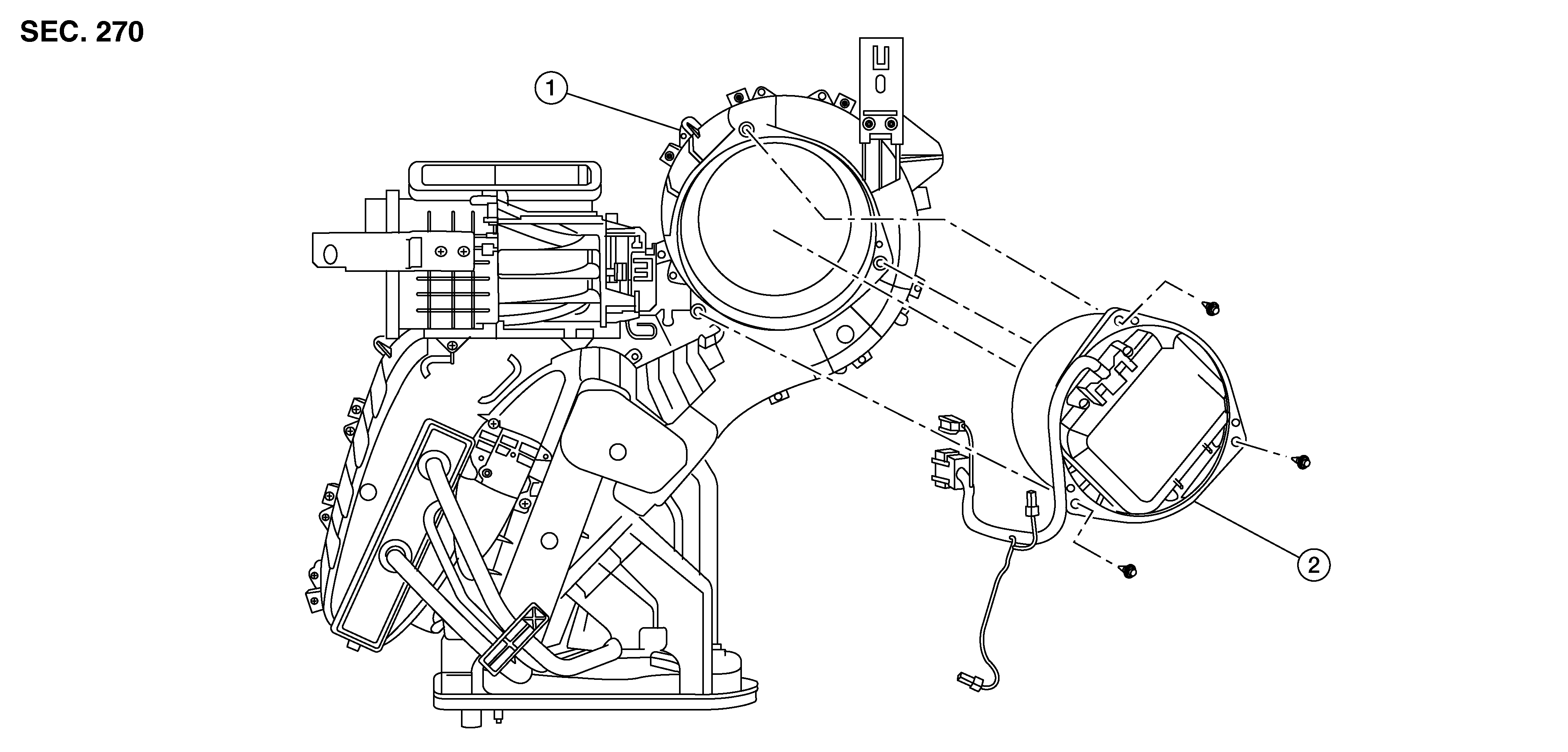

Rear Blower Motor Assembly (If Equipped)
|
1. |
Rear heating and cooling unit assembly |
2. |
Rear blower motor |
