Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

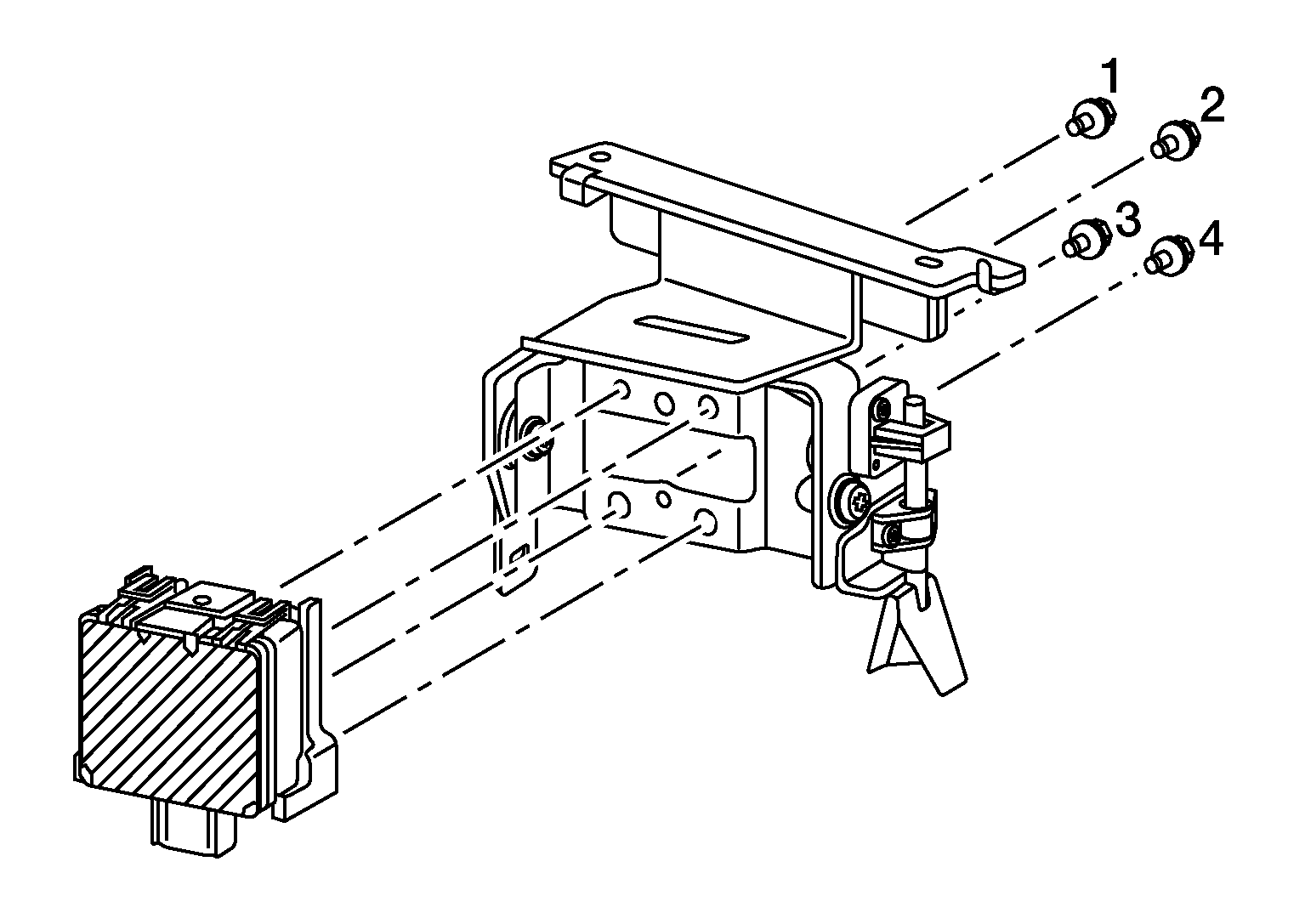

- Install ICC sensor to ICC sensor bracket.
- Install ICC sensor bolts finger tight, then tighten in sequence shown.
ICC sensor bolts
: 10.0 N.m (1.0 kg-m, 7 ft-lb)

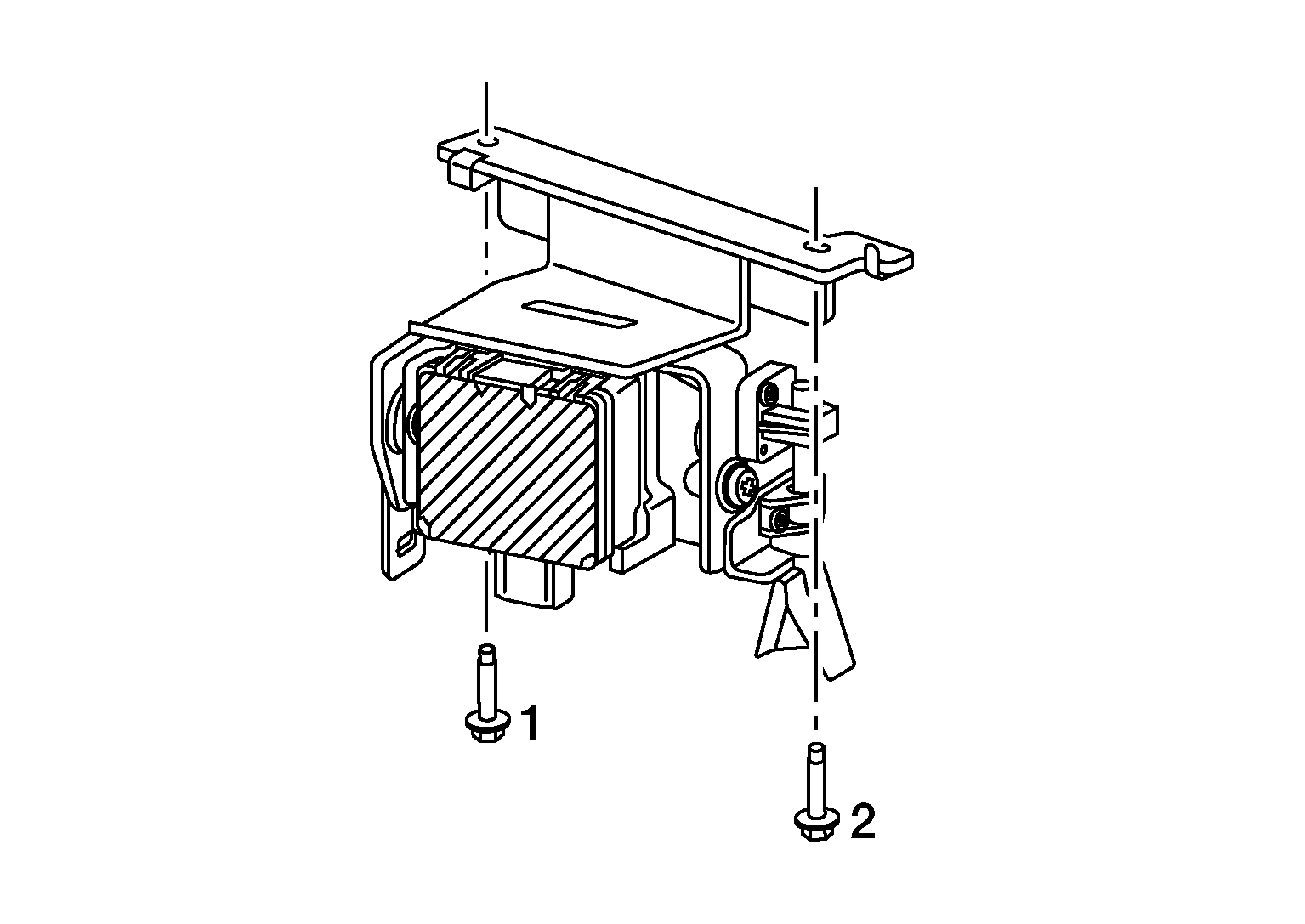

- Install ICC sensor bracket to front bumper reinforcement.
- Install ICC sensor bracket bolts finger tight, then tighten in sequence shown.
ICC sensor bracket bolts
: 10.0 N.m (1.0 kg-m, 7 ft-lb)
- Install remaining components in the reverse order of removal.CAUTION:
- Always perform ICC sensor alignment and check operation after removal, installation or replacement of ICC sensor. Refer to Description .
- Do not touch ICC sensor face.
- Do not drop or shock ICC sensor.
- Make sure ICC sensor harness is installed without any twists.
