Removal and Installation - Front Air Control: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to Removal and Installation .
    CAUTION: The AV control unit and the front air control use the same 24-pin connector. Caution must be used to prevent misconnection. Colored tape has been added to the wiring harness to identify the connectors:

    White = AV control unit

    Green = Front air control

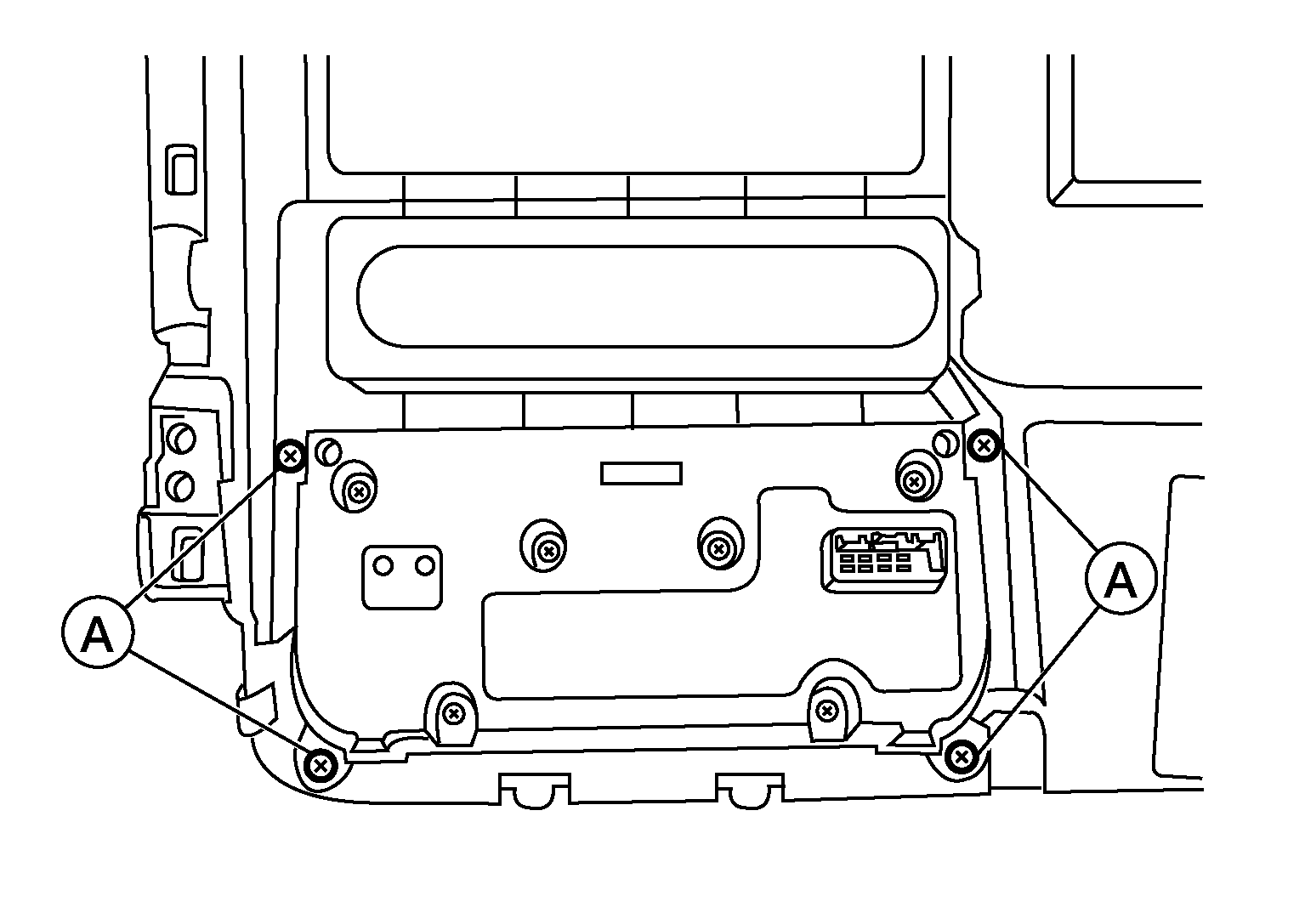

  2. Remove the four screws (A) that retain the front air control to cluster lid C.
    GNSDB112618Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove front air control.
