Switch Name And Function
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|

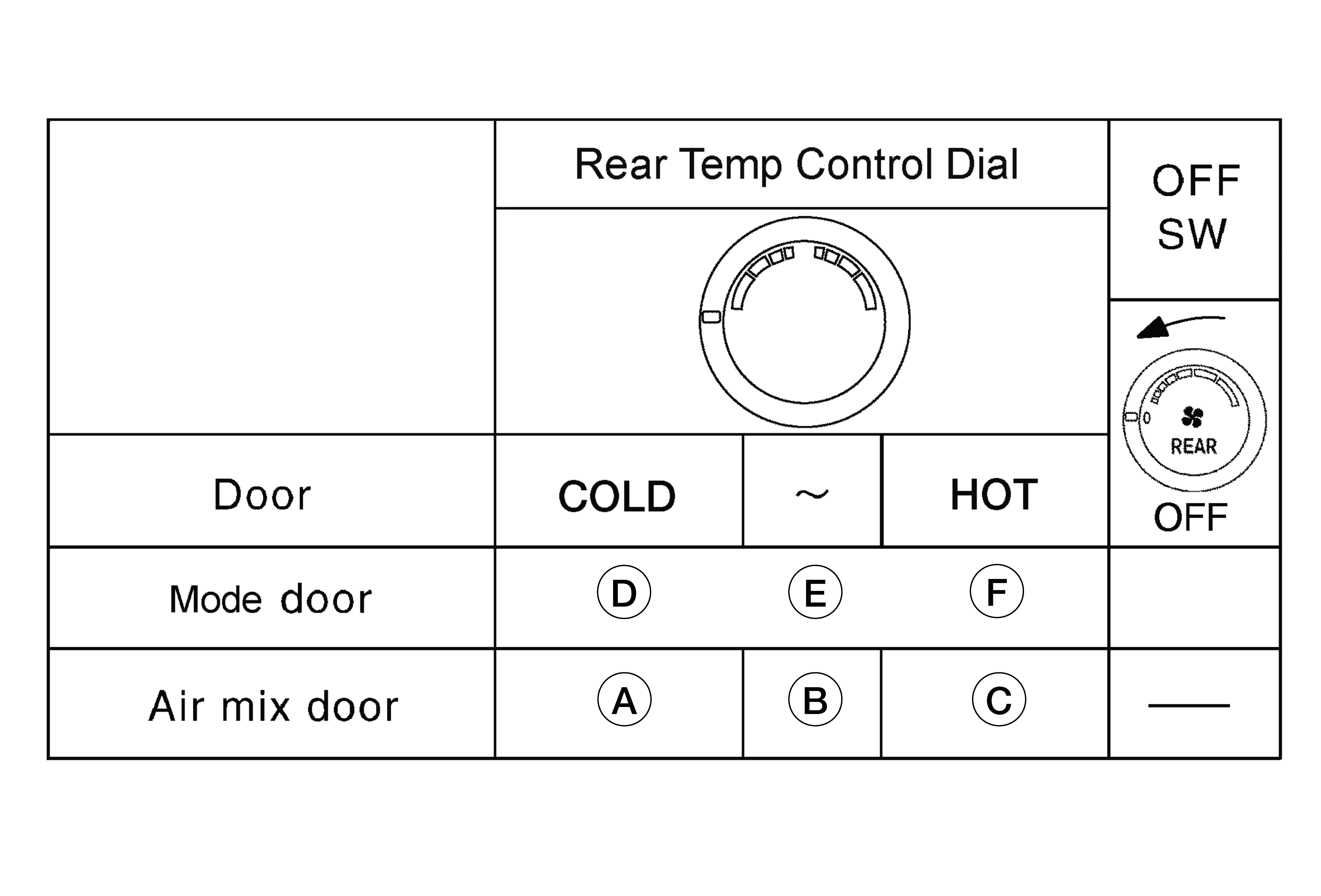

Switch position |
Door position |
|||||
|
Rear mode door |
Rear air mix door |
|||||
|
Temperature control switch (rear air control) |
Full cold |
D |
A |
|||
|
Mix |
E |
B |
||||
|
Full hot |
F |
C |
||||
|
ON.OFF switch (front air control) |
OFF |
F |
-- |
|||
|
OFF switch (rear air control) |
||||||
|

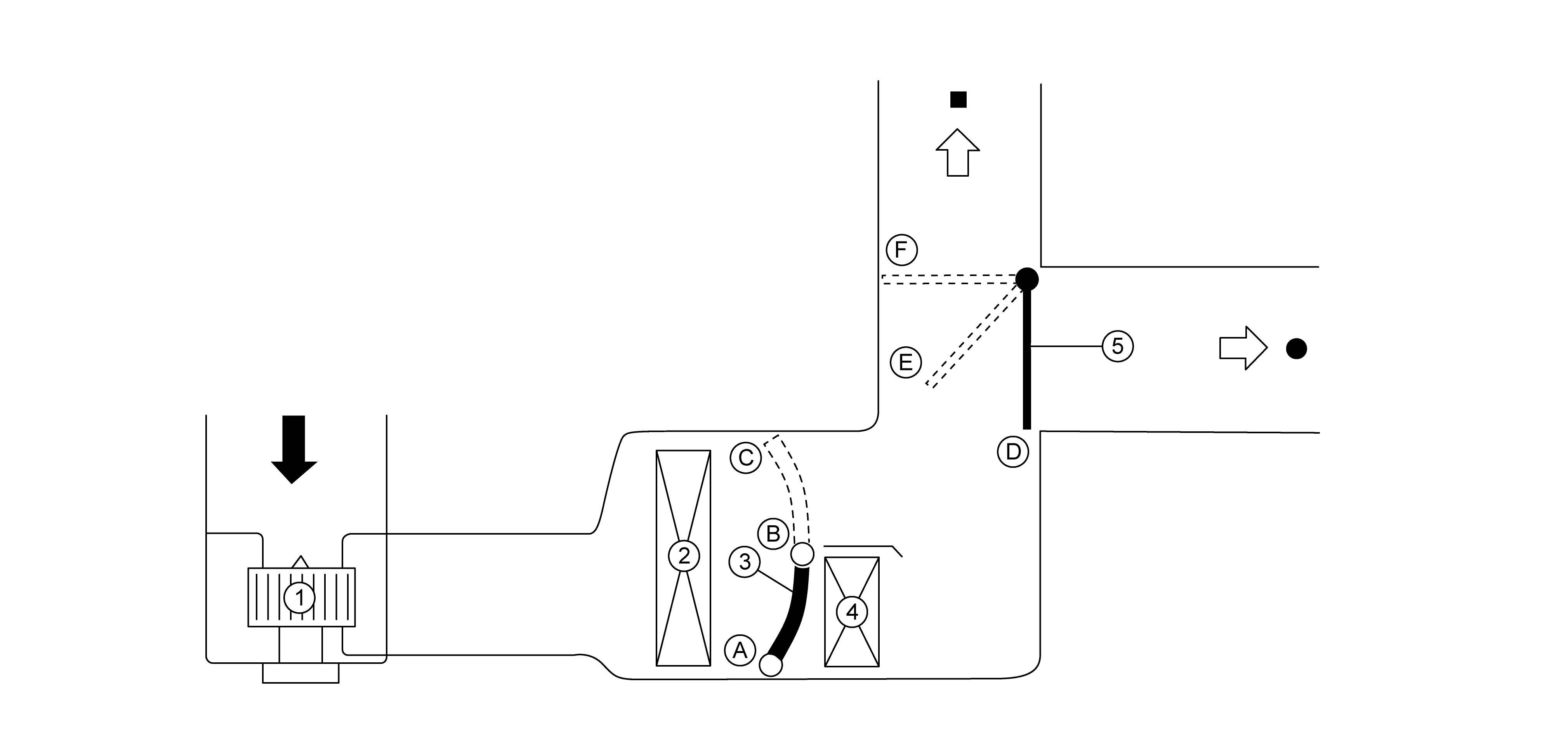

1. |
Rear blower motor |
2. |
Rear evaporator |
3. |
Rear air mix door |
|
4. |
Rear heater core |
5. |
Rear mode door |
||
|
|
Recirculation air |
|
Discharge air |
||
|
|
Rear ventilator |
|
Rear floor |
