Component Part Location
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|

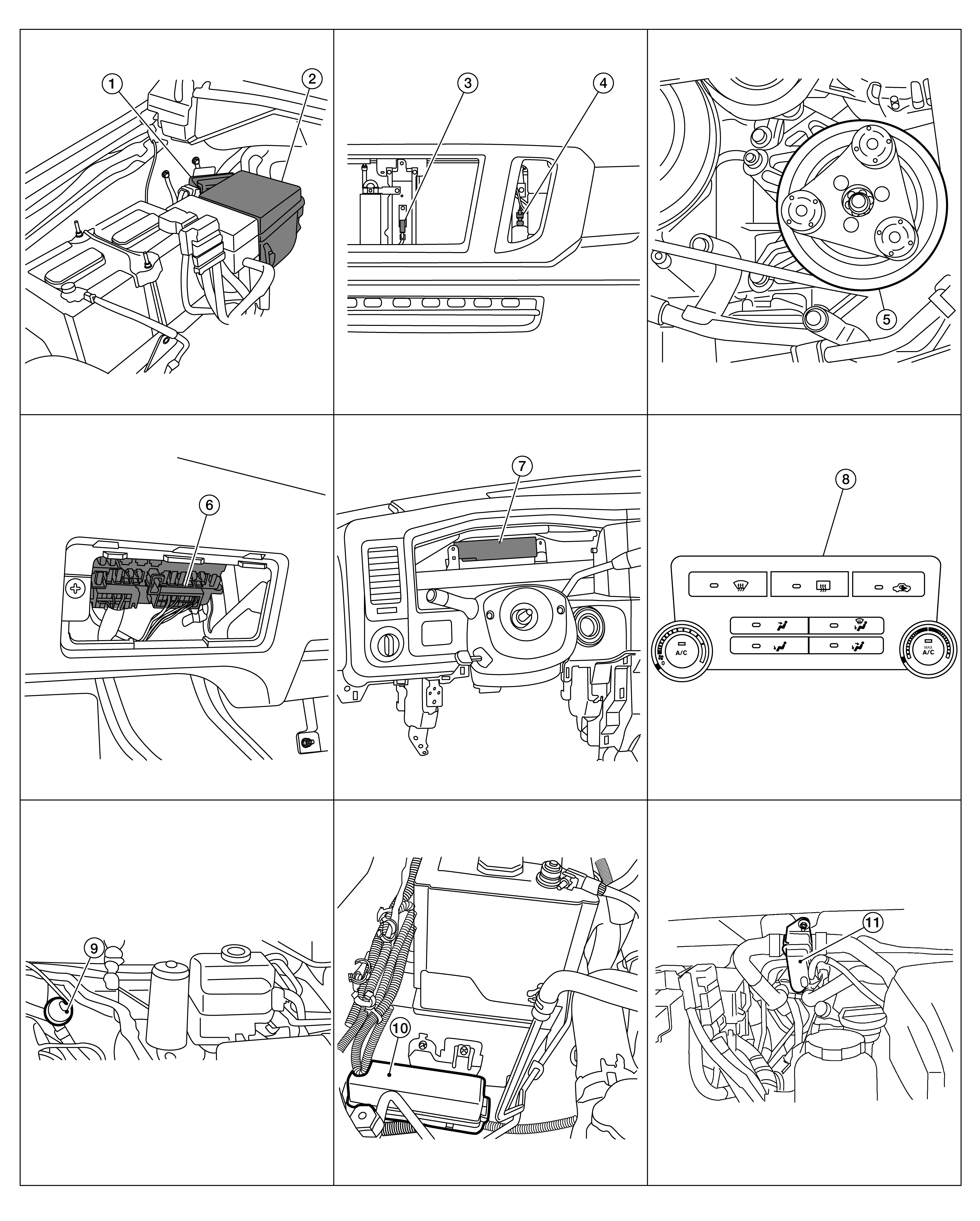

1. |
ECM |
2. |
IPDM E/R |
3. |
Ambient sensor (view with grille removed) |
|
4. |
Refrigerant pressure sensor (view with grille removed) |
5. |
A/C Compressor |
6. |
Fuse Block (J/B), Front blower motor relay-1, Front blower motor relay-2 (taped to harness near Fuse Block [J/B]) |
|
7. |
BCM (view with instrument panel removed) |
8. |
Front air control (shown with optional FRE button. Some models may have REC button instead) |
9. |
Heater pump (if equipped) |
|
10. |
Relay box (heater pump relay, if equipped) |
11. |
Water valve (if equipped) |

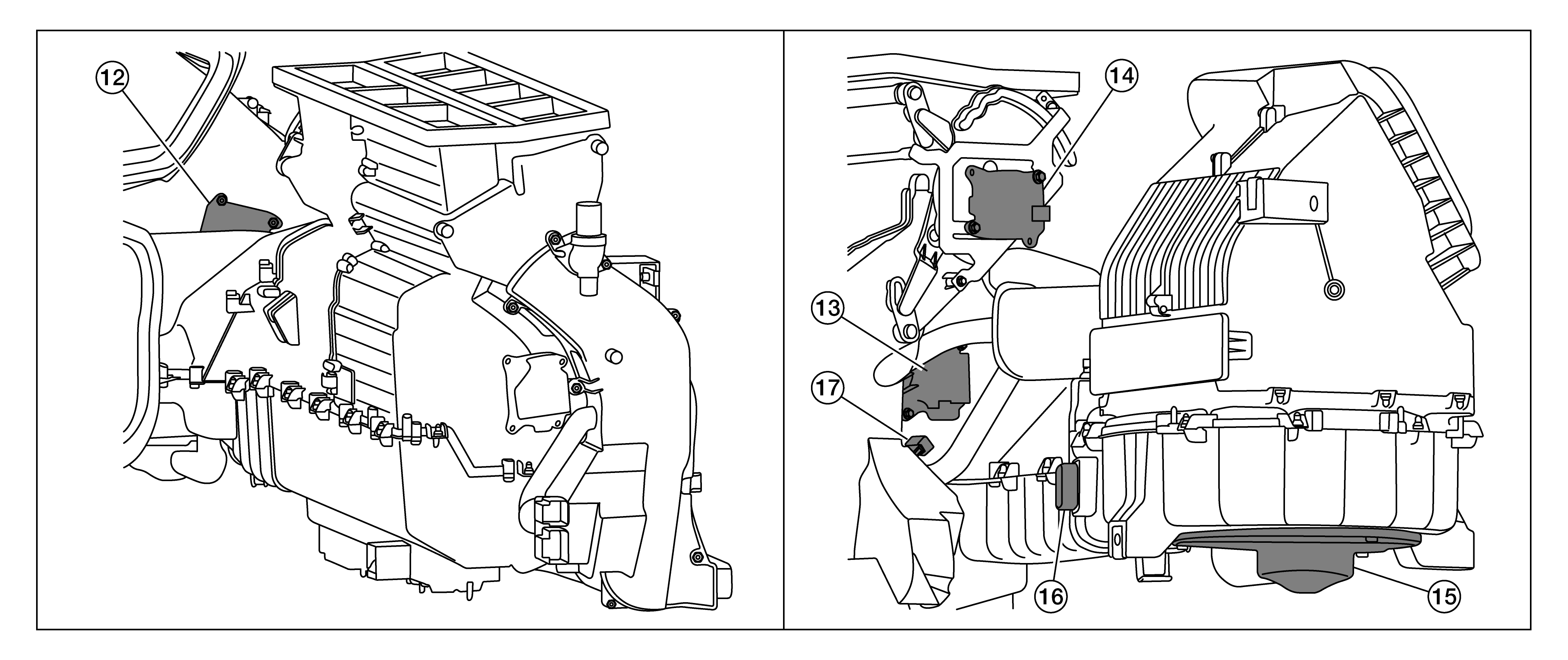

12. |
Intake door motor (view with front air conditioning assembly removed from vehicle) |
|
13. |
Front air mix door motor |
14. |
Front mode door motor |
15. |
Front blower motor |
|
16. |
Power transistor |
17. |
Intake sensor |
