Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Remove the tweeter grille (LH) using a suitable tool. Refer to Exploded View .
CAUTION: Use a plastic or taped suitable tool to prevent damage to the tweeter grill and the instrument panel.
Disconnect the harness connector from the sunload sensor.

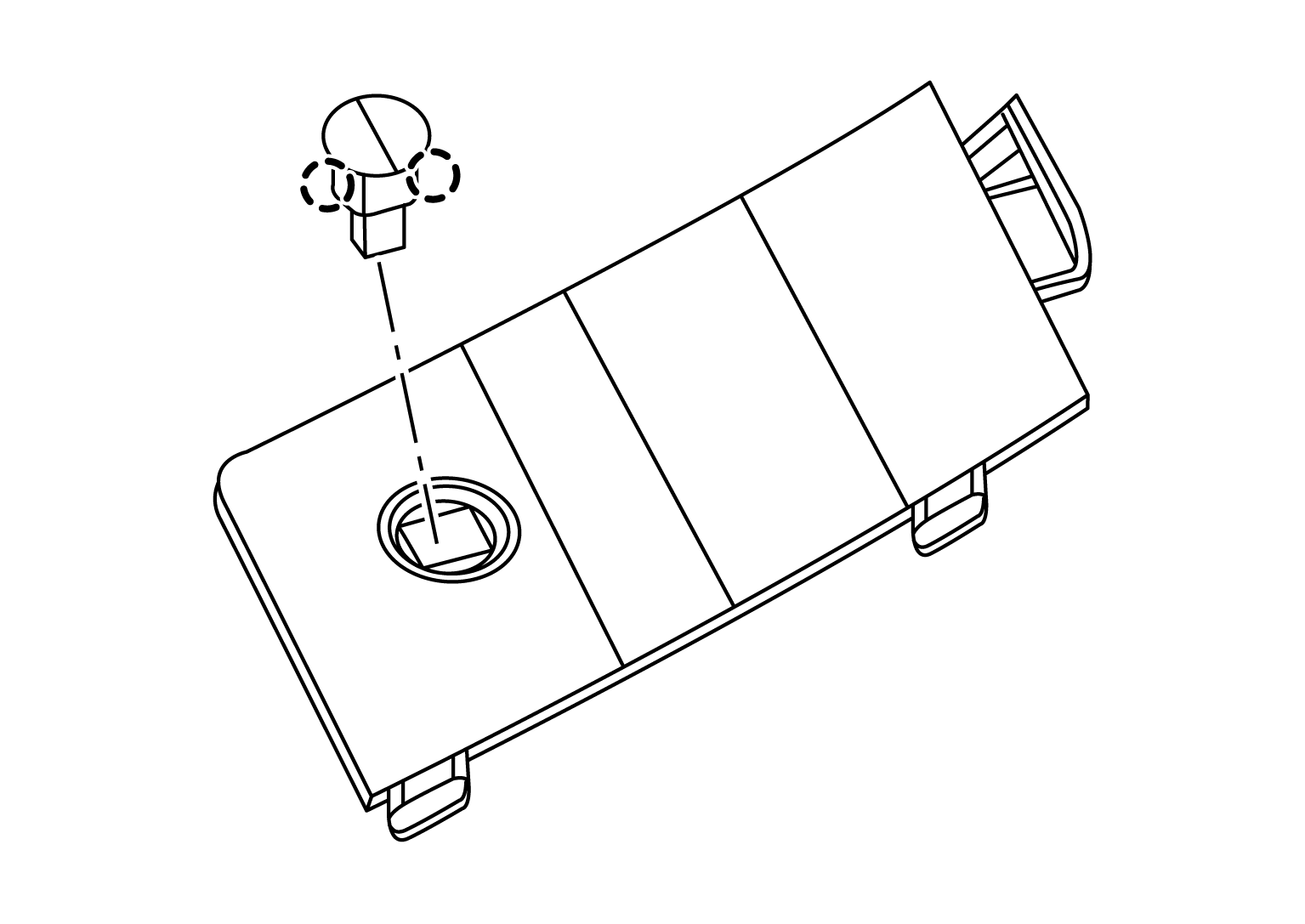

Release the sunload sensor pawls using a suitable tool, then remove the sunload sensor.

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
