Removal and Installation: Removal
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front evaporator. Refer to Removal and Installation - Front Evaporator
.

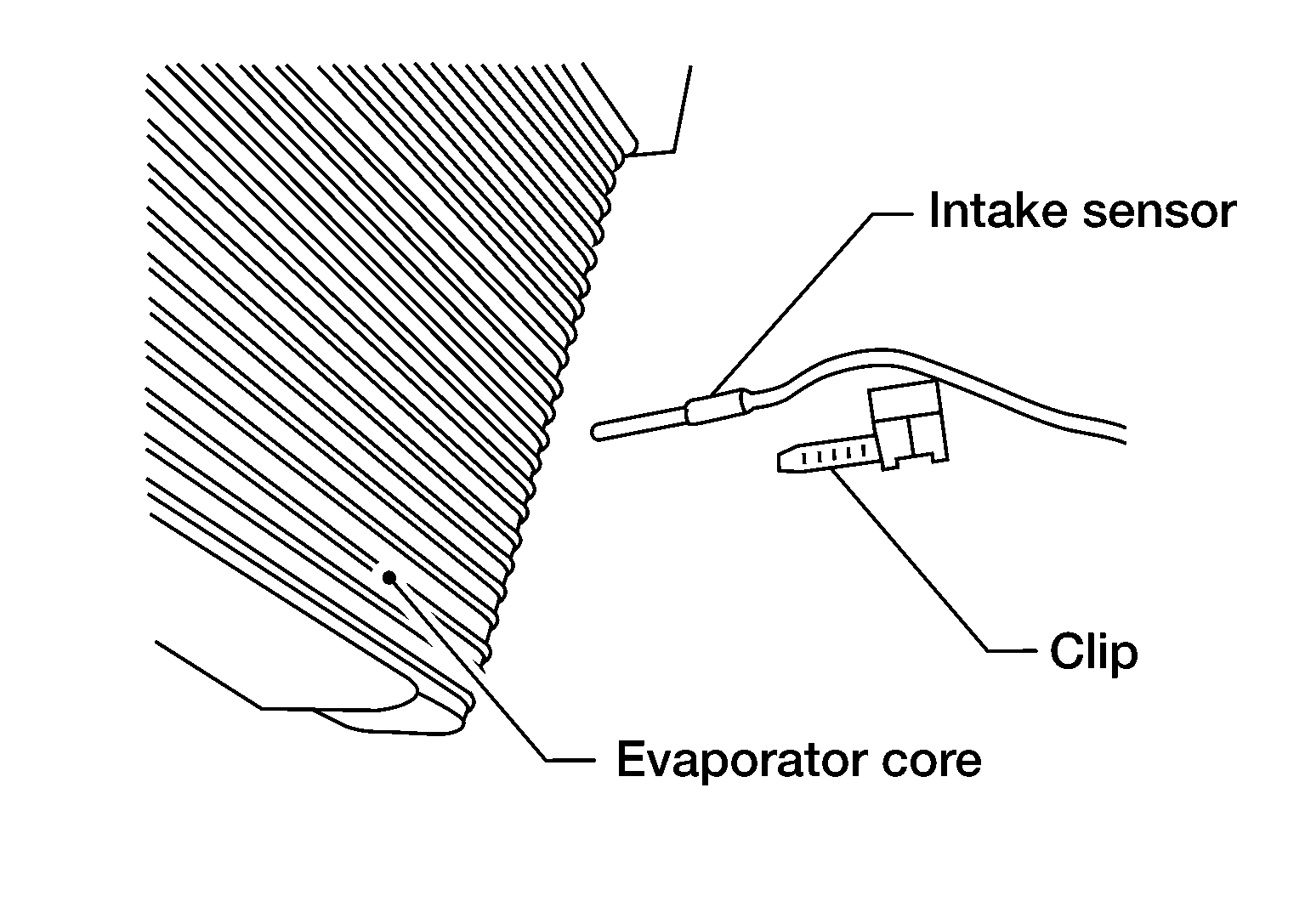

- Release the intake sensor clip and the intake sensor.CAUTION:
- Mark the mounting position of the intake sensor.
- Do not damage the evaporator core.
