Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The ambient sensor is located behind the front grille, below the hood lock assembly.
  1. Remove the front grille. Refer to Removal and Installation .

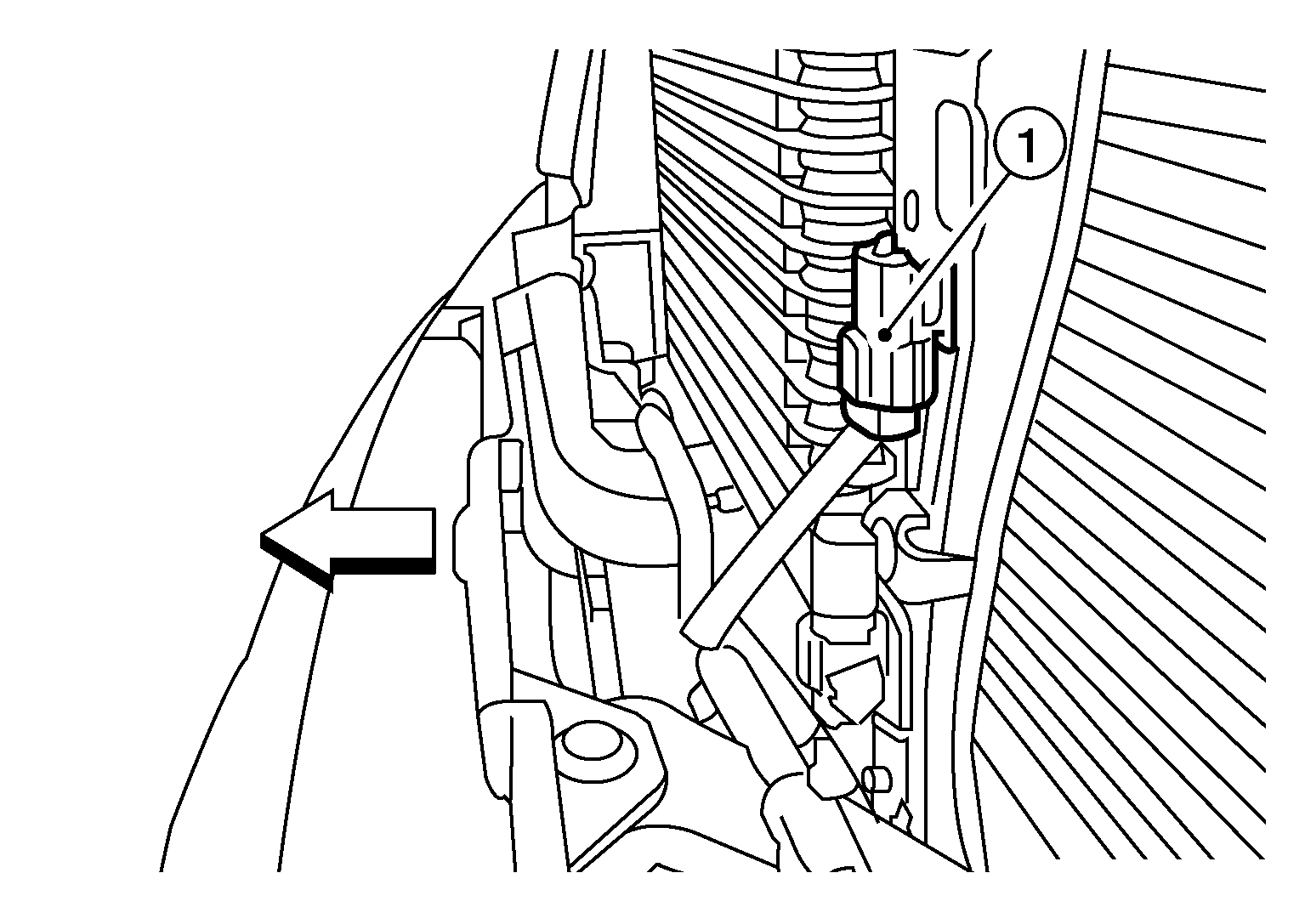

  2. Disconnect the harness connector from the ambient sensor (1) and remove.
    GNSAWIIA0262Z-262Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  3. Release the ambient sensor clip and the ambient sensor.
