Switches And Their Control Function
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|

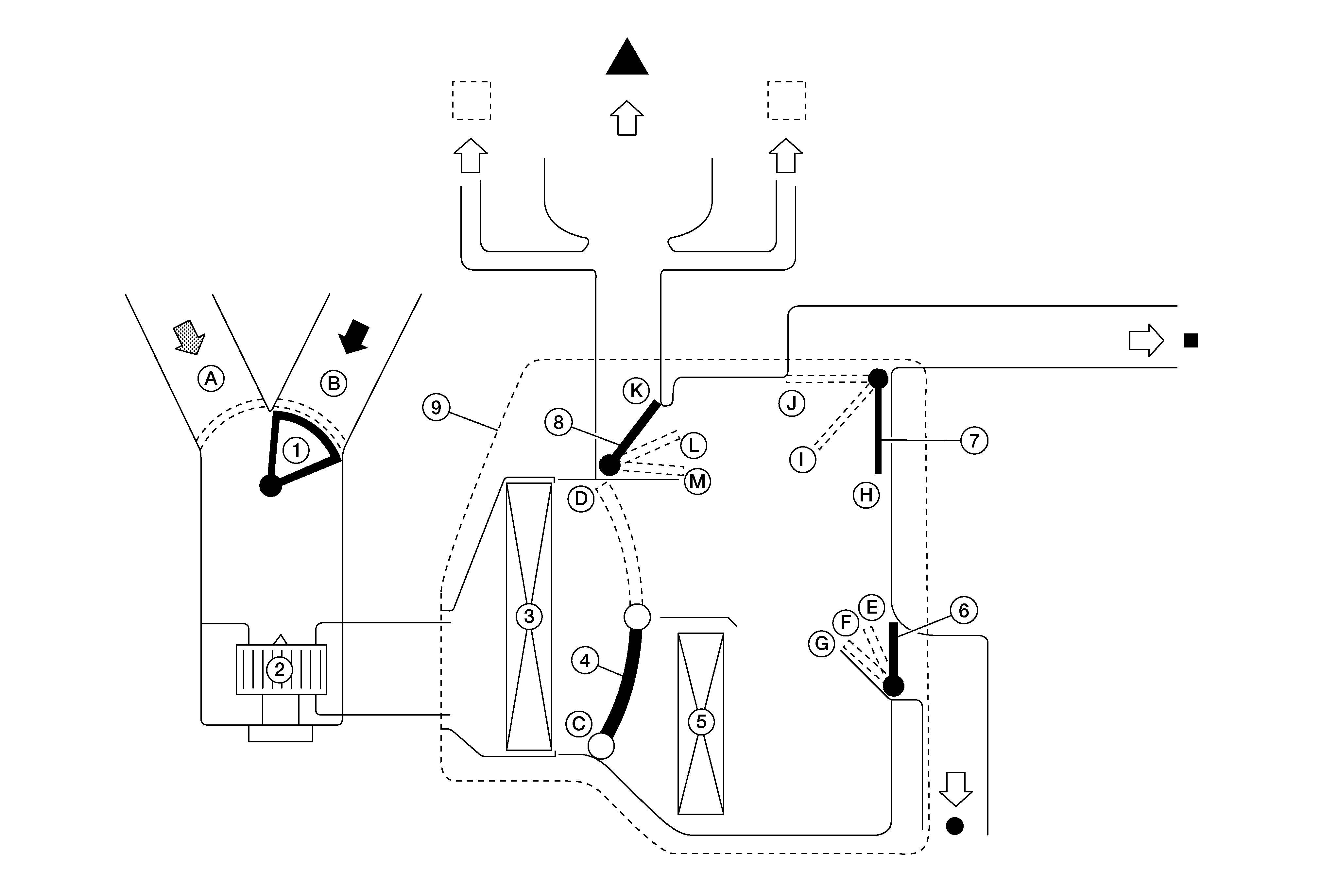

1. |
Intake door |
2. |
Blower motor |
3. |
Evaporator |
|
4. |
Air mix door |
5. |
Heater core |
6. |
Foot door |
|
7. |
Ventilator door |
8. |
Defroster door |
9. |
The structure of the dotted area is independent in RH and LH sides. Driver side and passenger side are divided by a partition. |
|
|
Fresh air intake |
|
Recirculation air |
||
|
|
Ventilator |
|
Side defroster |
|
Defroster |
|
|
Foot |
|
Switch/Dial position |
Door position |
||||||||
|
Ventilator door |
Foot door |
Defroster door |
Intake door |
Air mix door |
|||||
|
MODE switch |
VENT |
|
H |
E |
K |
-- |
|||
|
B/L |
|
I |
F |
K |
-- |
||||
|
FOOT |
|
J |
G |
L |
-- |
||||
|
D/F |
|
J |
G |
L |
B |
-- |
|||
|
DEF switch |
|
|
J |
E |
M |
B |
-- |
||
|
REC switch *1 |
|
|
-- |
B |
-- |
||||
|
|
-- |
A |
-- |
||||||
|
Temperature control dial |
Full Cold |
-- |
C |
||||||
|
Full Cold <=> Full Hot |
-- |
AUTO |
|||||||
|
Full Hot |
-- |
D |
|||||||
*1 : Inlet status is displayed by indicator when activating Max A/C or D/F modes.
