Physical Values
|
Terminal No. |
Wire color |
Item |
Ignition switch |
Condition |
Voltage (V) (Approx.) |
|
|
1 |
Y |
Power supply for BAT |
- |
- |
Battery voltage |
|
|
2 |
R |
Power supply for IGN |
ON |
- |
Battery voltage |
|
|
3 |
B |
Ground |
- |
- |
0V |
|
|
4 |
B |
Ground |
- |
- |
0V |
|
|
5 |
V |
VACTR |
ON |
- |
Battery voltage |
|
|
6 |
LG |

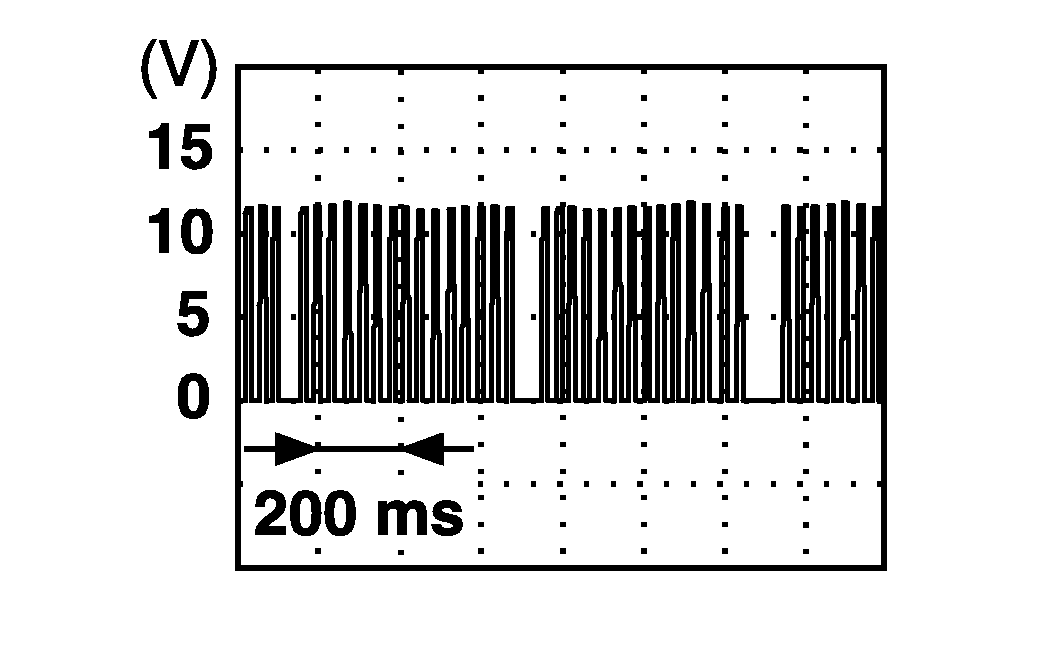

LAN signal |
- |
- |
||
|
9 |
Y |
Water valve |
ON |
Water valve open |
Battery voltage |
|
|
ON |
Water valve closed |
0V |
||||
|
10 |
W |
Water valve |
ON |
Water valve open |
0V |
|
|
ON |
Water valve closed |
Battery voltage |
||||
|
11 |
GR |
Intake sensor |
ON |
- |
0 - 5V |
|
|
12 |
G |
Power supply from front blower motor relay |
ON |
- |
Battery voltage |
|
|
13 |
L |
Front blower motor feedback |
ON |
- |
0 - 12V |
|
|
14 |
LG |
Variable blower control |
ON |
- |
0 - 12V |
|
|
15 |
O |
Ambient sensor |
ON |
- |
0 - 5V |
|
|
16 |
SB |
Sensor ground |
ON |
- |
0V |
|
|
18 |
BR |
Rear Defrost ON signal |
ON |
DEF switch OFF |
12V |
|
|
ON |
DEF switch ON |
0V |
||||
|
19 |
Y |
Fan ON signal |
ON |
Blower switch OFF |
7.0 - 8.0V |
|
|
ON |
Blower switch ON |
0V |
||||
|
20 |
GR |
Compressor ON signal |
ON |
A/C switch OFF |
1.0 - 1.5V |
|
|
ON |
A/C switch ON |
0V |
||||
|
21 |
L |
CAN-H |
ON |
- |
0 - 5V |
|
|
22 |
P |
CAN-L |
ON |
- |
0 - 5V |
|
|
23 |
V |
Illumination + |
- |
Park lamps ON |
||
|
24 |
BR |
Illumination - |
- |
Park lamps ON |
||
|
29 |
G |
Rear fan |
ON |
- |
0 - 5V |
|
|
30 |
SB |
Rear temperature |
ON |
- |
0 - 5V |
|
|
31 |
P |
5V supply |
ON |
- |
0 - 5V |
|
|
33 |
BR |
Rear fan PW/M |
ON |
- |
0 - 5V |
|
|
35 |
O |
Sunload sensor |
ON |
- |
0 - 5V |
|
|
36 |
LG |
In-vehicle sensor |
ON |
- |
0 - 5V |
|
