Component Parts Location

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

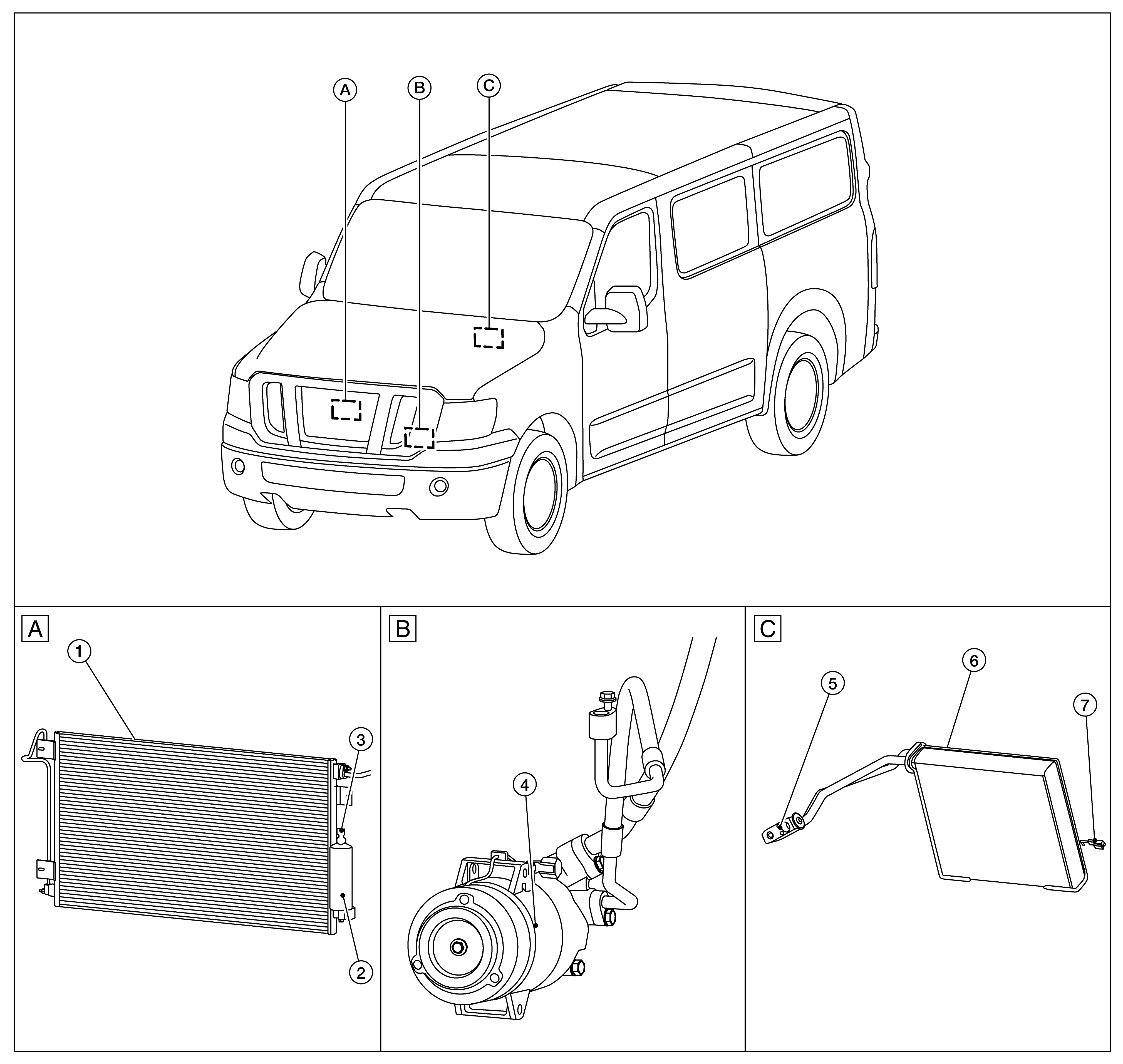

GNSDB119521Courtesy of NISSAN NORTH AMERICA, INC.

1.

Condenser

2.

Liquid tank

3.

Refrigerant pressure sensor

4.

A/C compressor

5.

Expansion valve

6.

Evaporator

7.

Intake sensor
