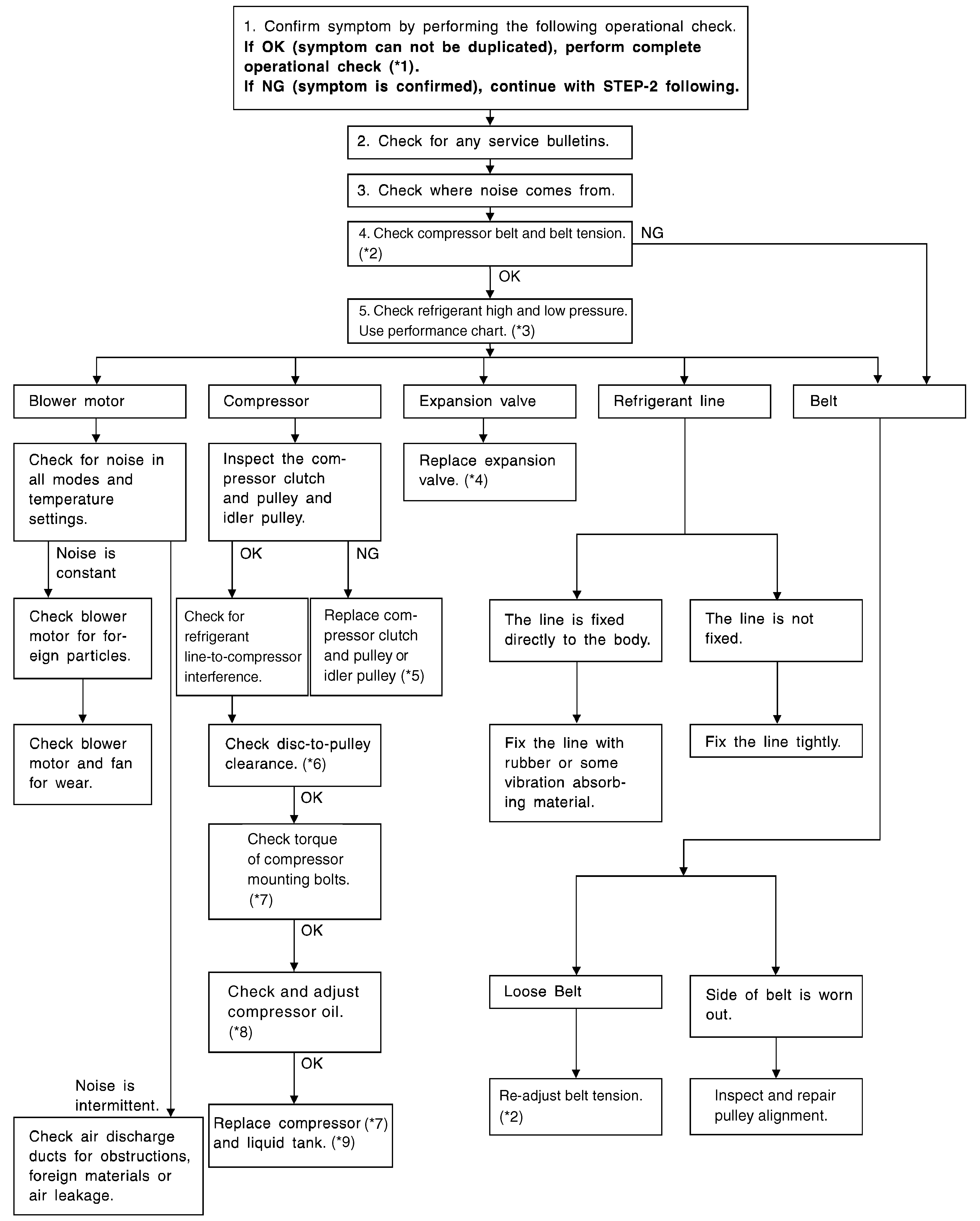

Inspection Flow

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

*1	Work Procedure	*2	Checking Drive Belts (VQ40DE) or Checking (VK56VD).	*3	Checking Drive Belts (VQ40DE) or Checking (VK56VD).
*4	Removal and Installation - Front Expansion Valve	*5	Removal and Installation for Compressor Clutch - VQ40DE or Removal and Installation for Compressor Clutch - VK56VD .	*6	Removal and Installation for Compressor Clutch - VQ40DE or Removal and Installation for Compressor Clutch - VK56VD
*7	Removal and Installation for A/C Compressor - VQ40DE or Removal and Installation for A/C Compressor - VK56VD .	*8	Removal and Installation for A/C Compressor - VQ40DE or Removal and Installation for A/C Compressor - VK56VD .	*9	Removal and Installation
