Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to Changing Engine Coolant (VQ40DE) or Changing Engine Coolant (VK56VD).

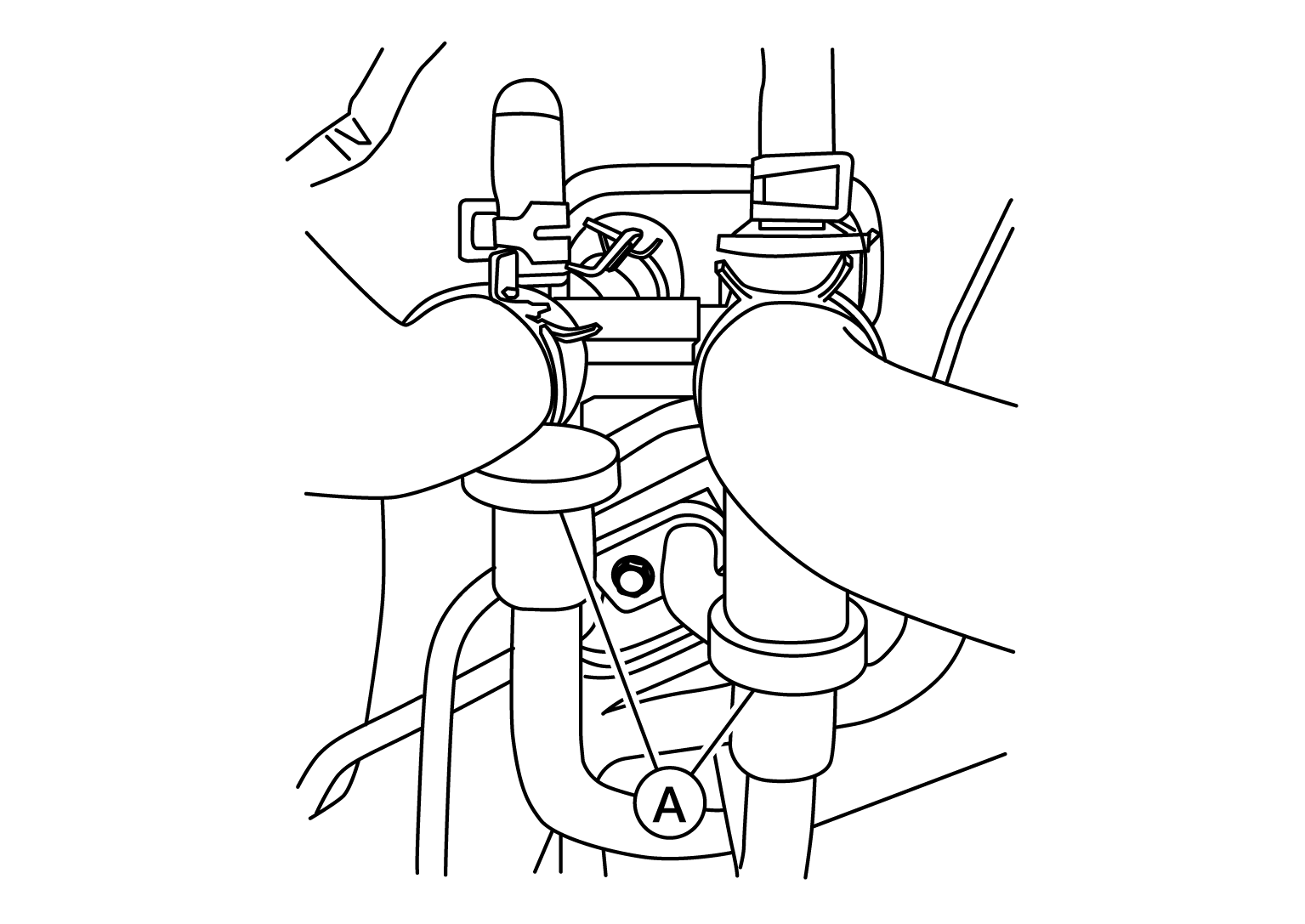

Disconnect the underfloor rear heater core pipes (A) from the coolant valve.

Courtesy of NISSAN NORTH AMERICA, INC.

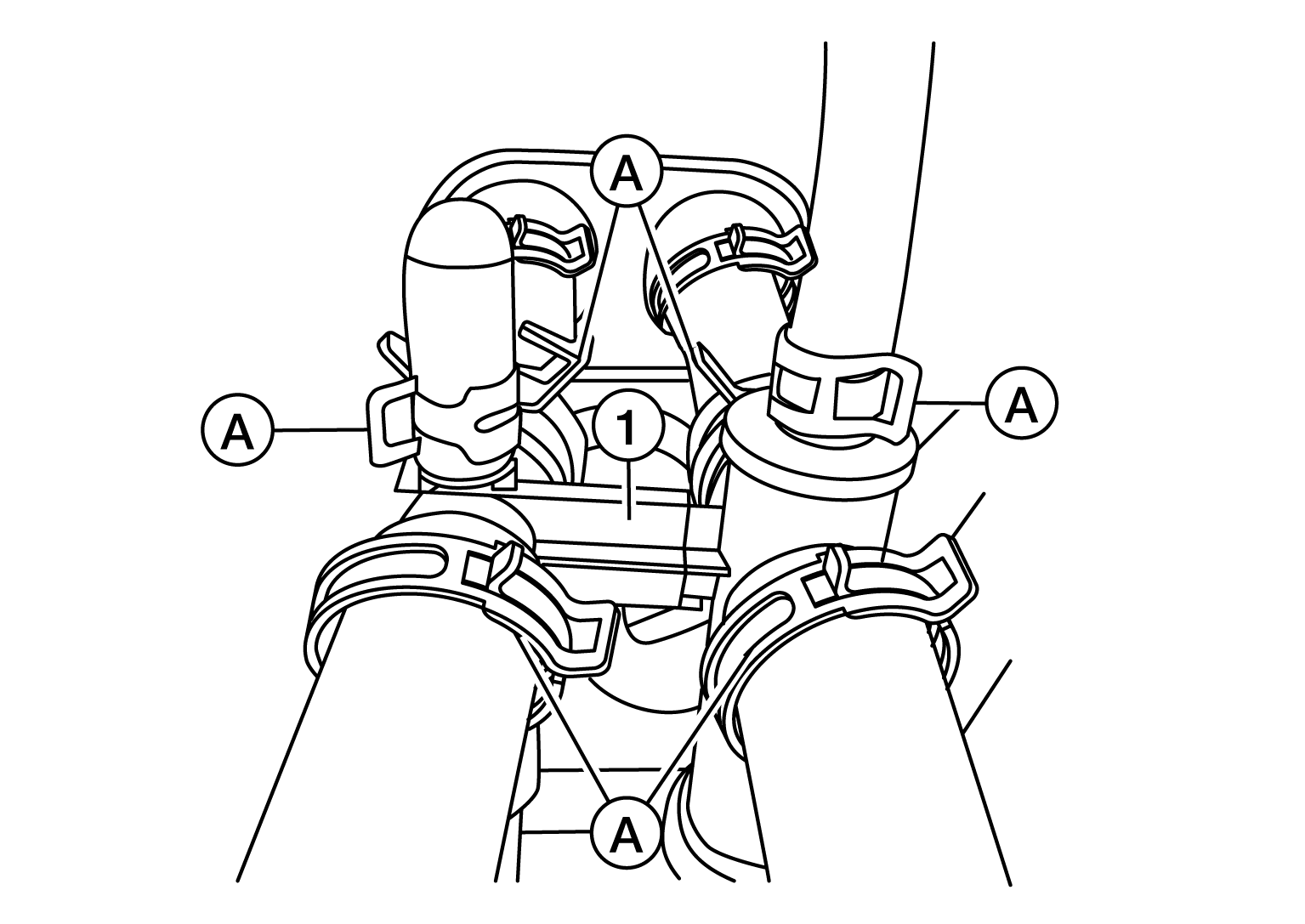

Disconnect the heater hoses (A) from the coolant valve (1).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the coolant valve.
