Removal and Installation - Rear Heating and Cooling Unit: Notes
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|

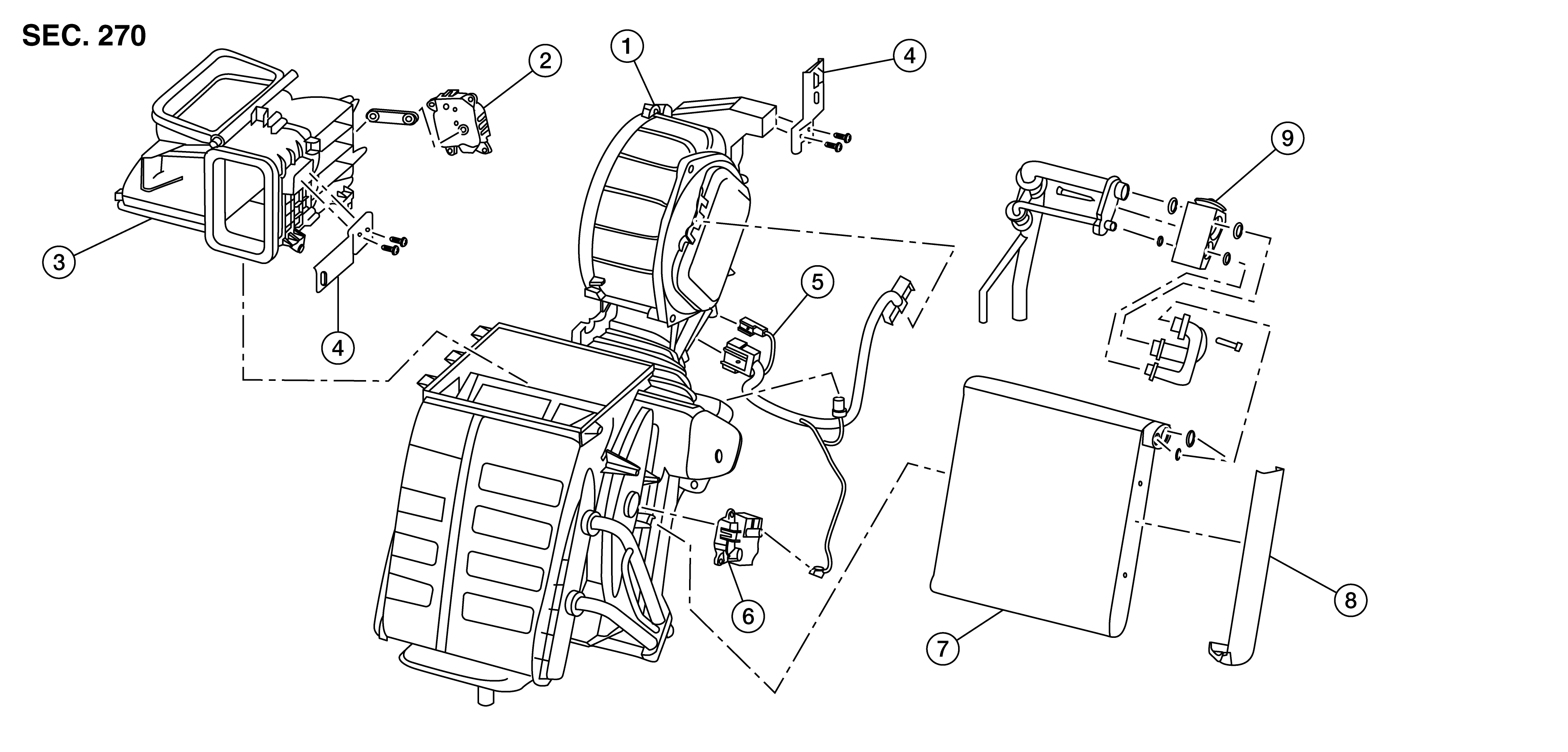

1.
|
Rear heater and cooling unit assembly
|
2.
|
Rear mode door motor
|
3.
|
Rear upper distribution module
|
|
4.
|
Rear case bracket
|
5.
|
Rear HVAC jumper harness
|
6.
|
Rear air mix door motor
|
|
7.
|
Rear evaporator
|
8.
|
Rear heater case side cover
|
9.
|
Rear expansion valve
|
