Setting Of Service Tools And Equipment
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

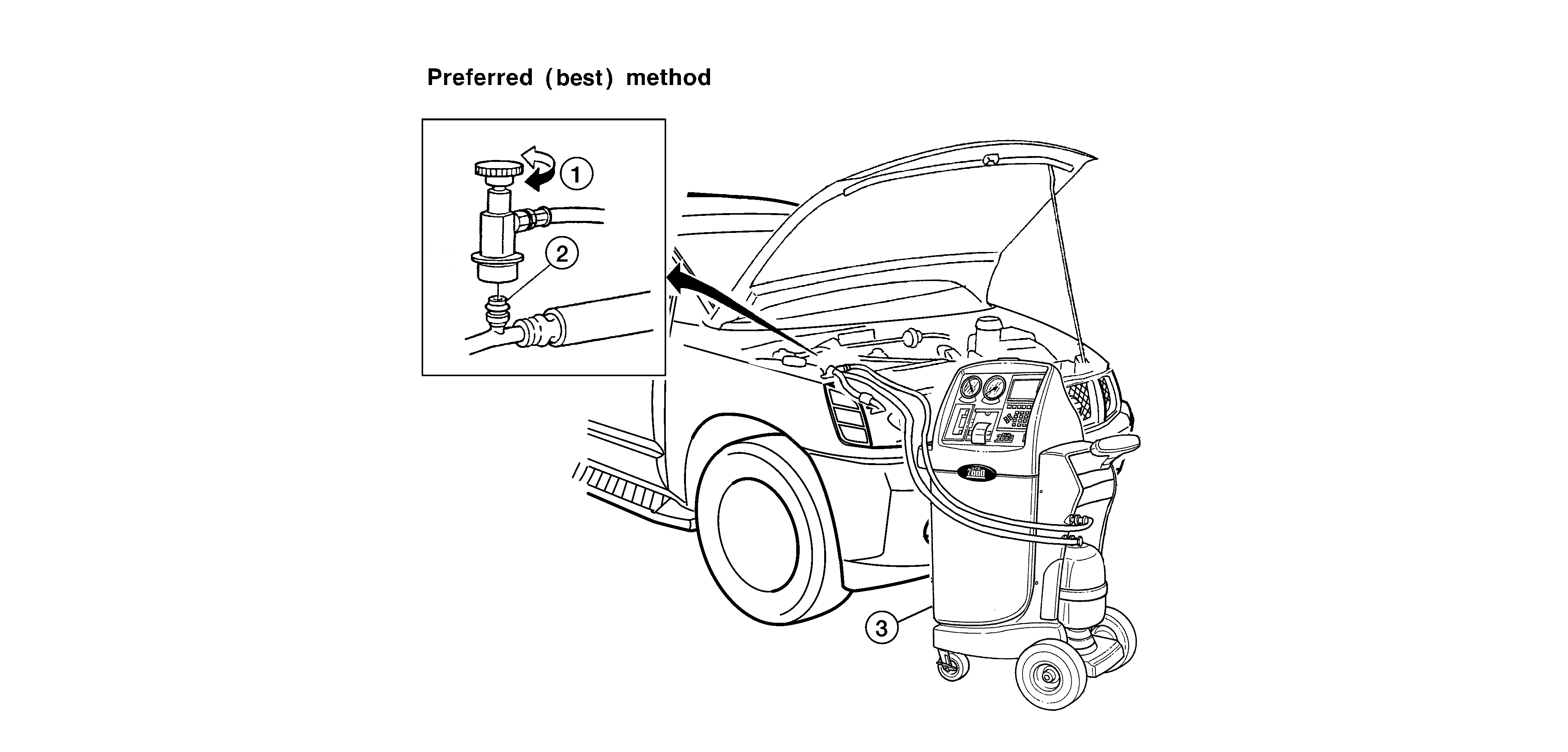

Discharging Refrigerant
|
1. |
Shut-off valve |
2. |
A/C service valve |
3. |
Recovery/recycling equipment |
WARNING:
Avoid breathing A/C refrigerant and oil vapor or mist. Exposure may irritate eyes, nose and throat. Remove HFC-134a (R-134a) refrigerant from the A/C system using certified service equipment meeting requirements of SAE J2210 HFC-134a (R-134a) recycling equipment or SAE J2201 HFC-134a (R-134a) recovery equipment. If an accidental system discharge occurs, ventilate the work area before resuming service. Additional health and safety information may be obtained from the refrigerant and oil manufacturers.

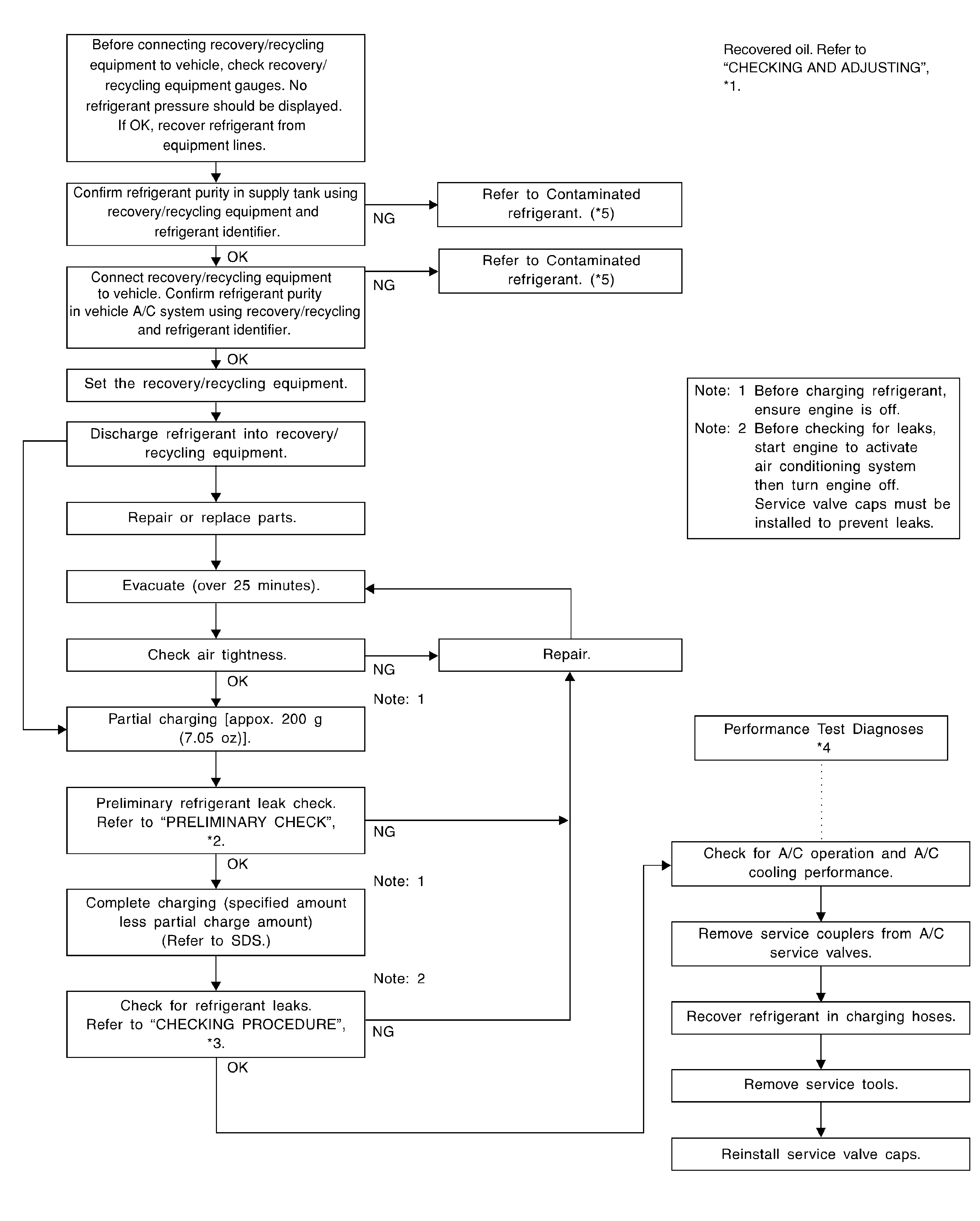

Evacuating System and Charging Refrigerant
|
1. |
Shut-off valve |
2. |
A/C service valve |
3. |
Recovery/recycling equipment |
|
4. |
Refrigerant container (HFC-134a) |
5. |
Weight scale |
6. |
Evacuating vacuum pump |
|
7. |
Manifold gauge set |
|
*1 |
*3 |
*5 |
|||
|
*2 |
*4 |
