Connection Of Service Tools And Equipment

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

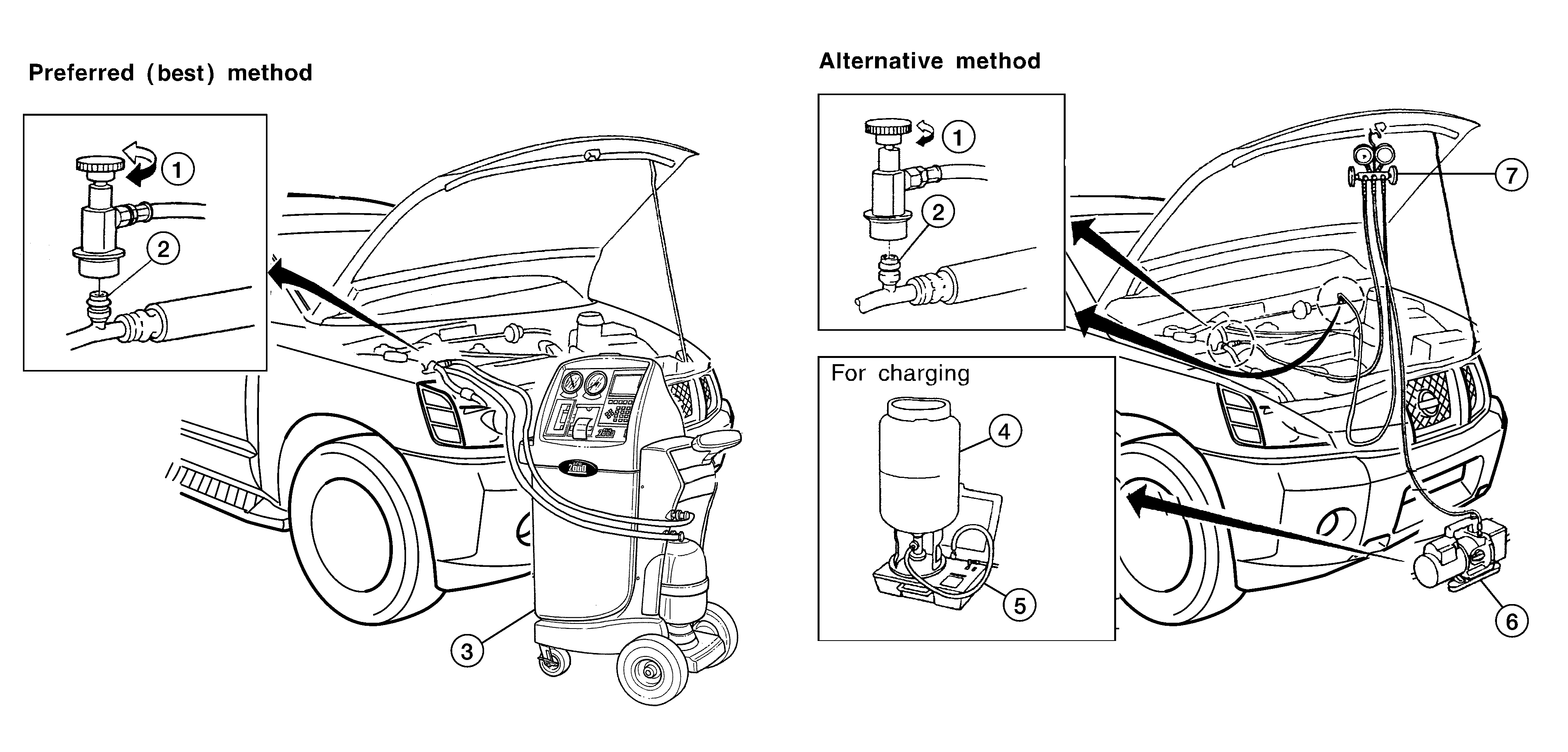

G04213019Courtesy of NISSAN NORTH AMERICA, INC.

1.

Shut-off valve

2.

A/C service valve

3.

Recovery/recycling equipment

4.

Refrigerant container (HFC-134a)

5.

Weight scale

6.

Evacuating vacuum pump

7.

Manifold gauge set
