Exploded View

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

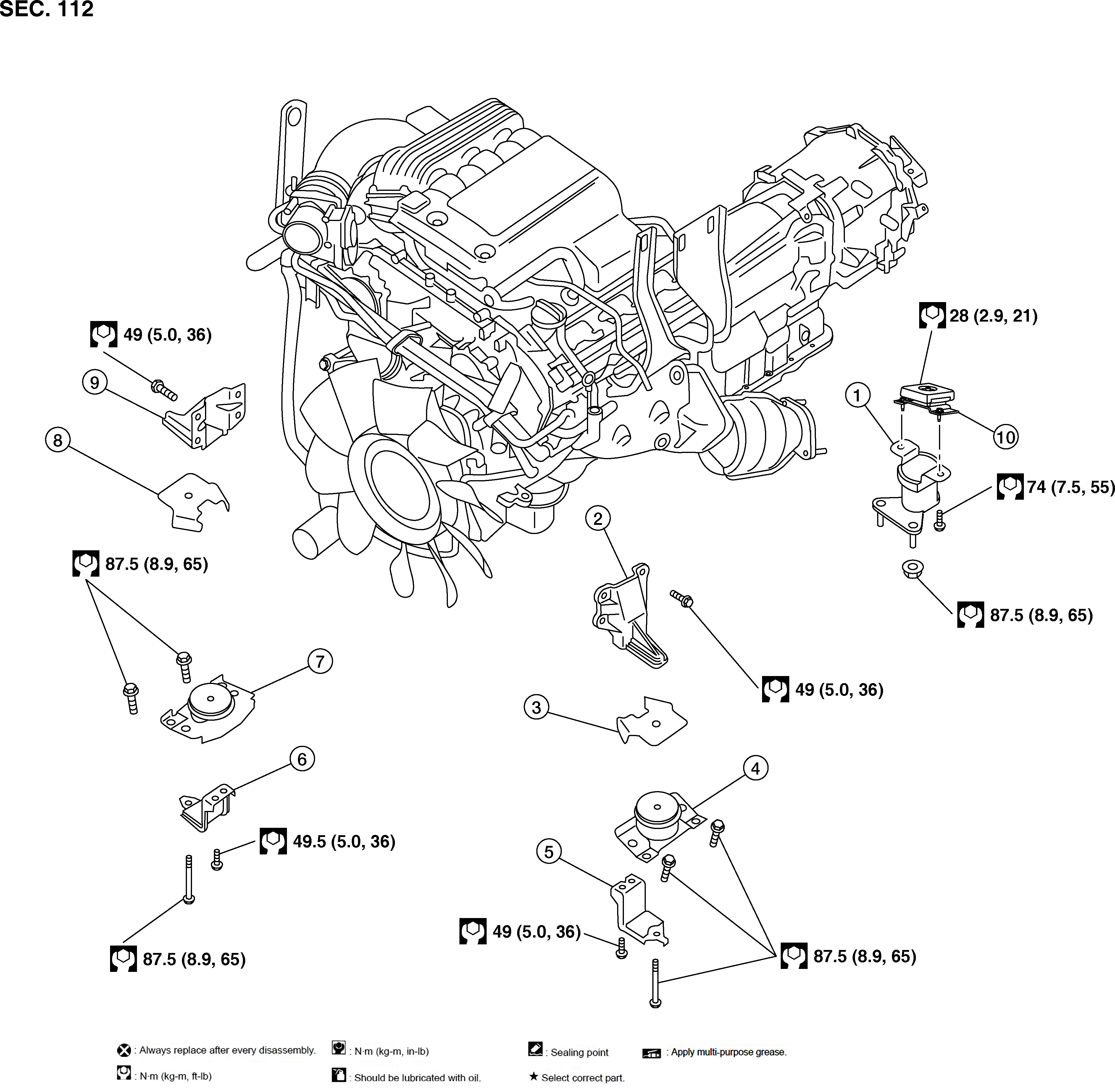

Fig 1: Engine Assembly Components With Torque Specifications
GNSAWBIA0107Z-107Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rear engine mounting insulator

2.

Engine mounting bracket (LH) (upper)

3.

Heat shield plate (LH)

4.

Engine mounting insulator (LH)

5.

Engine mounting bracket (LH) (lower)

6.

Engine mounting bracket (RH) (lower)

7.

Engine mounting insulator (RH)

8.

Heat shield plate (RH)

9.

Engine mounting bracket (RH) (upper)

10.

Dynamic damper
