How To Select Main Bearing

When New Cylinder Block and Crankshaft are Used

1. "Main Bearing Selection Table" rows correspond to bearing housing grade on rear left side of cylinder block.

   Courtesy of NISSAN NORTH AMERICA, INC.

2. "Main Bearing Selection Table" columns correspond to journal diameter grade on front side of crankshaft.

   Courtesy of NISSAN NORTH AMERICA, INC.

3. Select main bearing grade at the point where selected row and column meet in "Main Bearing Selection Table".

When Cylinder Block and Crankshaft are Reused

1. Measure cylinder block main bearing housing inner diameter and crankshaft main journal diameter. Refer to Inspection After Disassembly  and Inspection After Disassembly .
2. Correspond the measured dimension in "Cylinder block main bearing housing inner diameter" row of "Main Bearing Selection Table".
3. Correspond the measured dimension in "Crankshaft main journal diameter" column of "Main Bearing Selection Table".
4. Select main bearing grade at the point where selected row and column meet in following selection table.

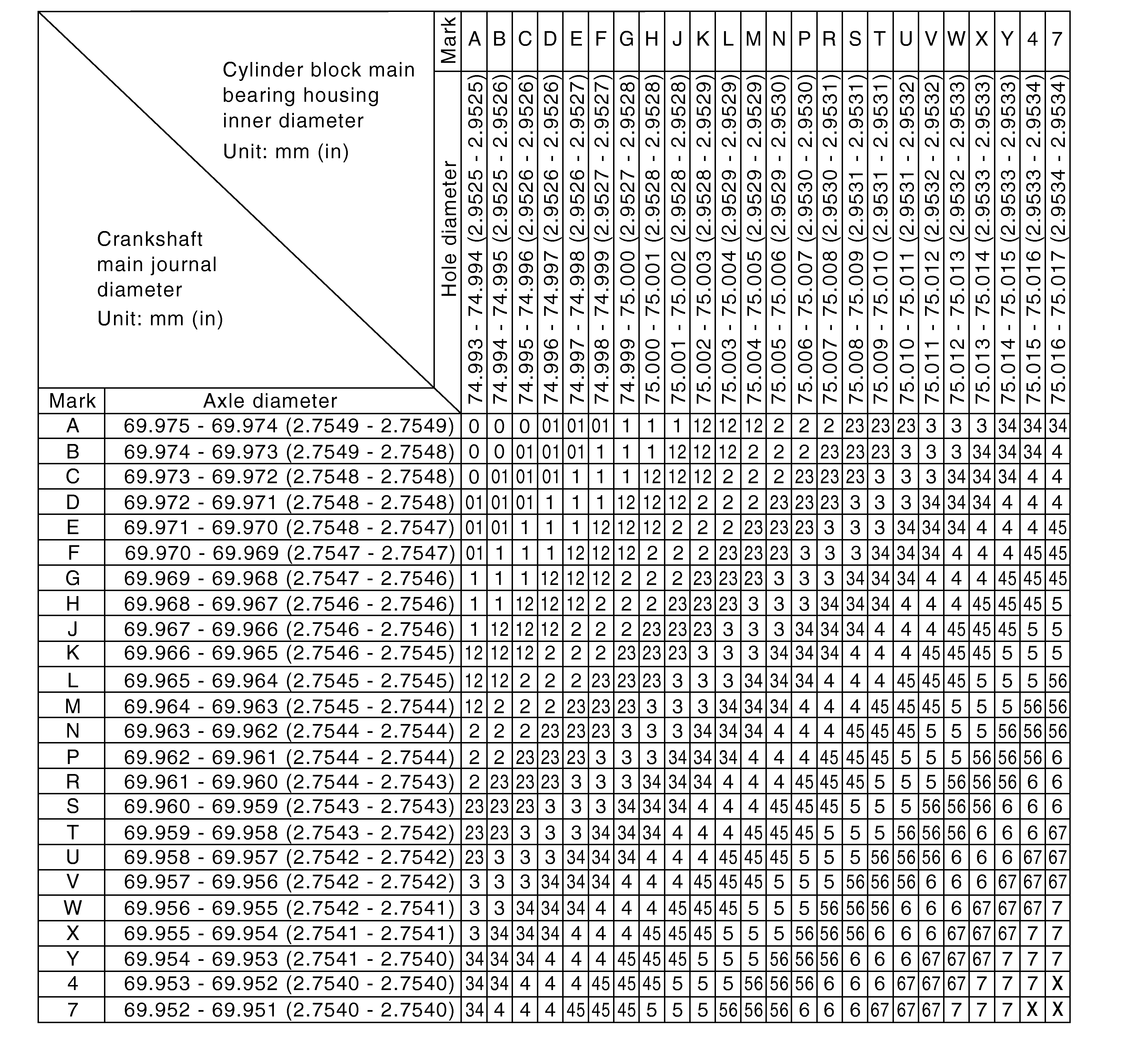

Main Bearing Selection Table

Courtesy of NISSAN NORTH AMERICA, INC.

Main Bearing Grade Table (All Journals)

*: Always check with the Parts Department for the latest parts information.

Undersize Bearing Usage Guide

• When the specified main bearing oil clearance is not obtained with standard size main bearings, use underside (US) bearing.
• When using undersize (US) bearing, measure the main bearing inner diameter with bearing installed, and grind main journal so that the main bearing oil clearance satisfies the standard.
  CAUTION: In grinding crankshaft main journal to use undersize bearings, keep the fillet R [1.5 - 1.7 mm (0.059 - 0.067 in)].

  Courtesy of NISSAN NORTH AMERICA, INC.

Unit: mm (in)
