Lower Cylinder Block Bolt Outer Diameter
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

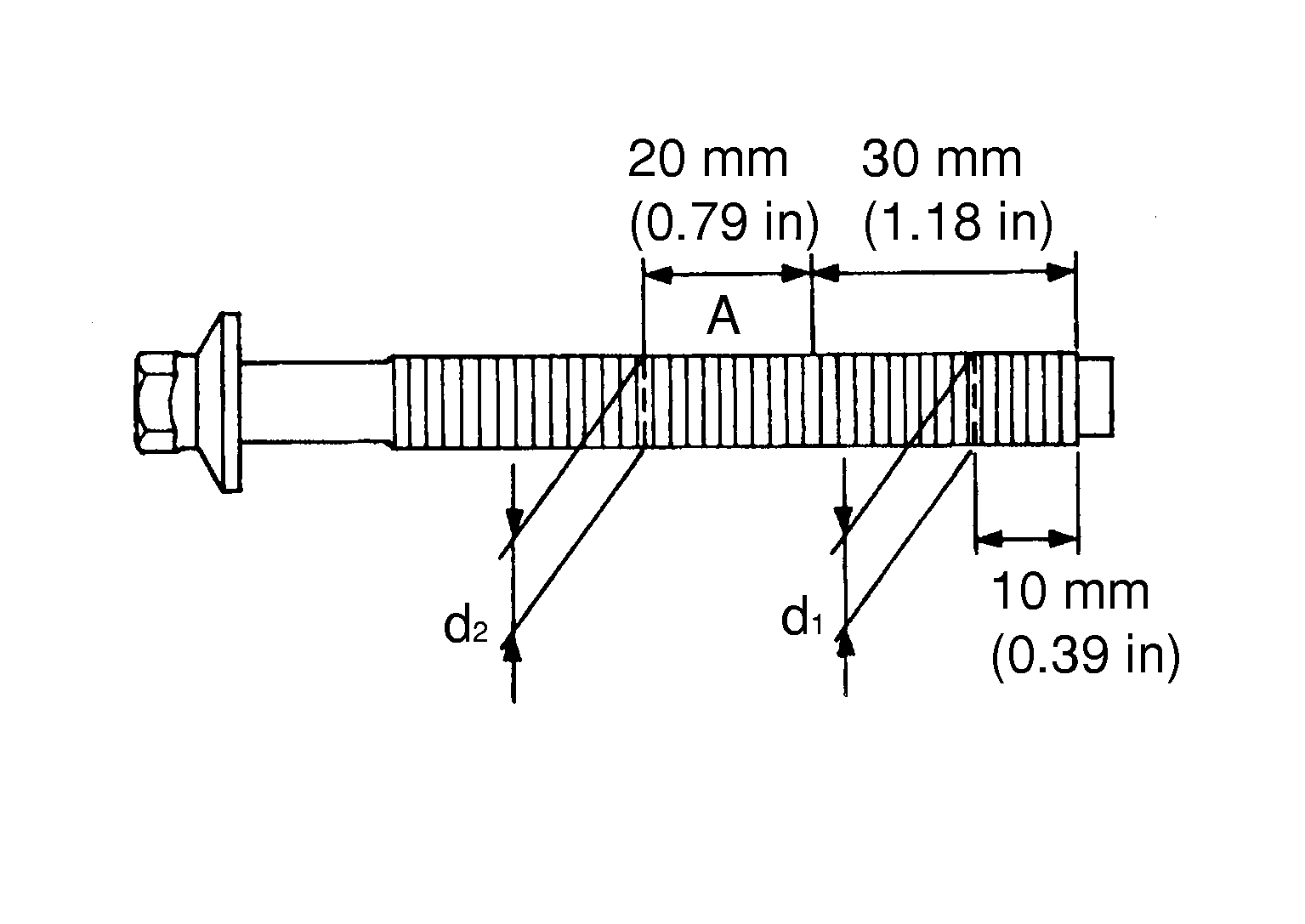

- Measure the outer diameters [(d 1)
, (d 2)]
at two positions as shown.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- If reduction appears in (A) range, regard it as (d 2)
.
|
Limit [(d 1) - (
d 2
)]
|
: 0.11 mm (0.0051 in)
|
- If it exceeds the limit (large difference in dimensions), replace lower cylinder block bolt with new one.
