Crush Height Of Main Bearing

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

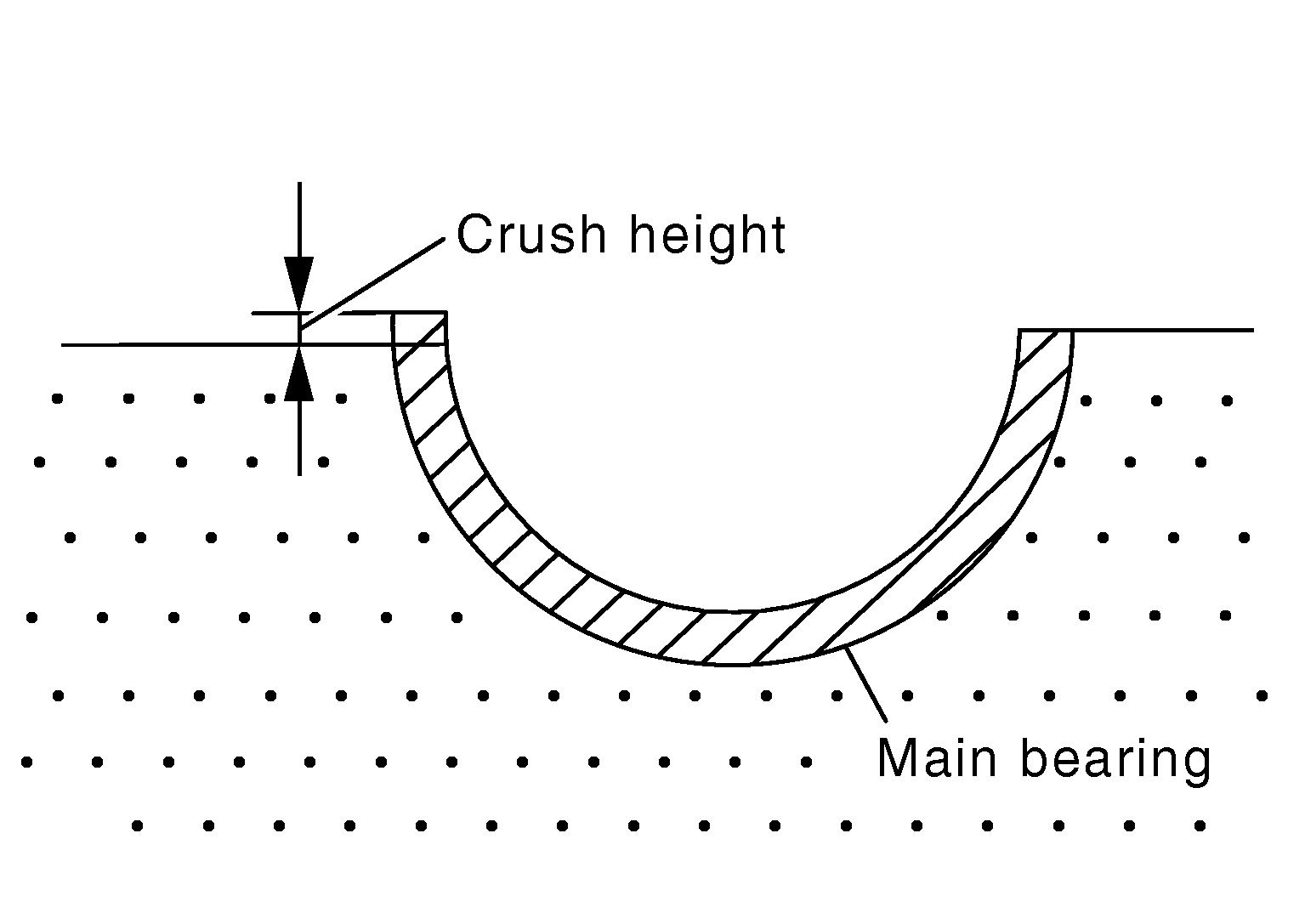

When lower cylinder block is removed after being tightened to the specified torque with main bearings installed, the tip end of bearing must protrude. Refer to Disassembly and Assembly for the tightening procedure.

Courtesy of NISSAN NORTH AMERICA, INC.

Standard

: There must be crush height.

If the standard is not met, replace main bearings.
