Crankshaft Pin Journal Diameter
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

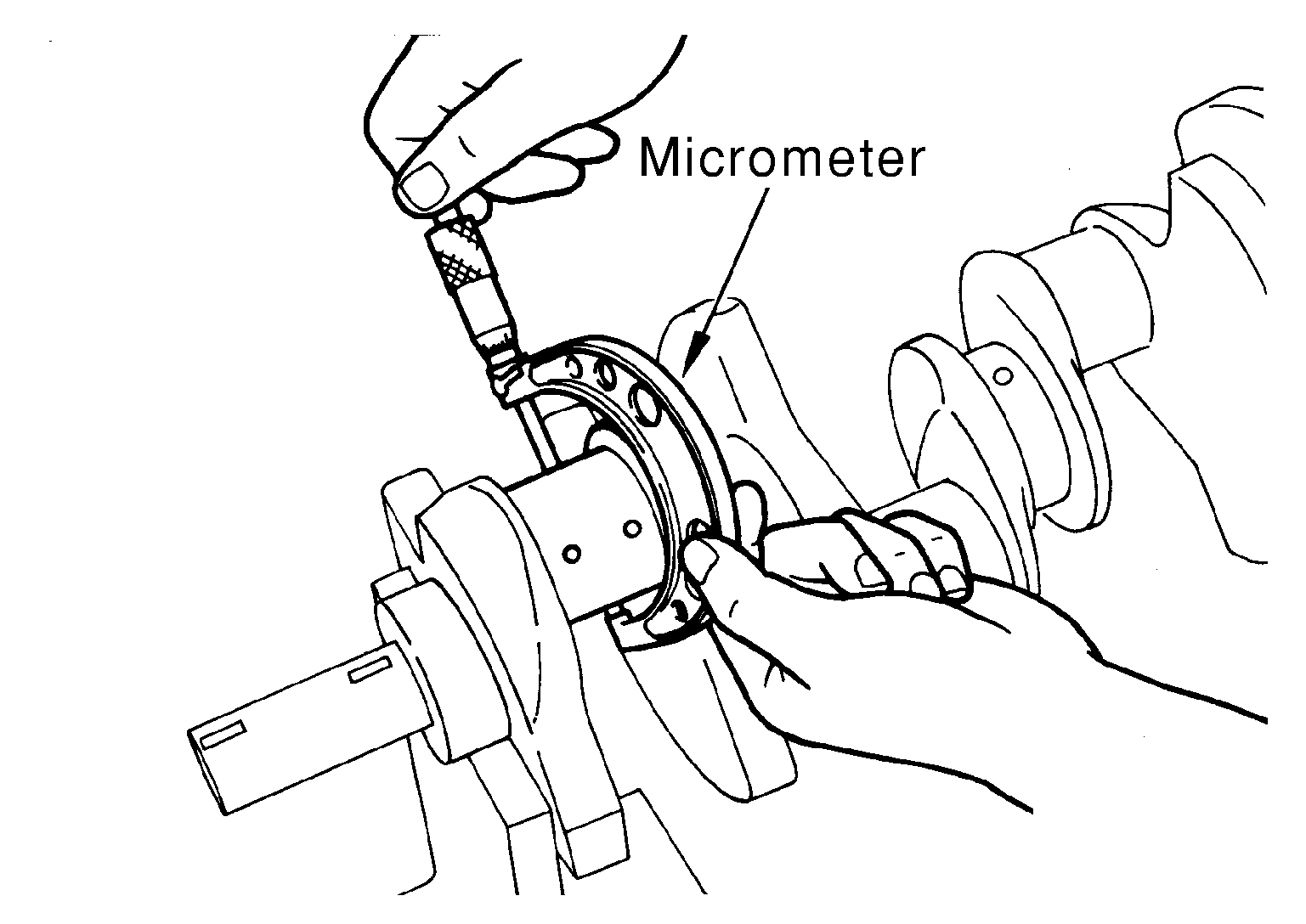

- Measure the outer diameter of crankshaft pin journal with micrometer.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Standard
|
: 53.956 - 53.974 mm (2.1242 - 2.1250 in) diameter.
|
- If out of the standard, measure the connecting rod bearing oil clearance. Then use undersize bearing.
