Crankshaft End Play

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

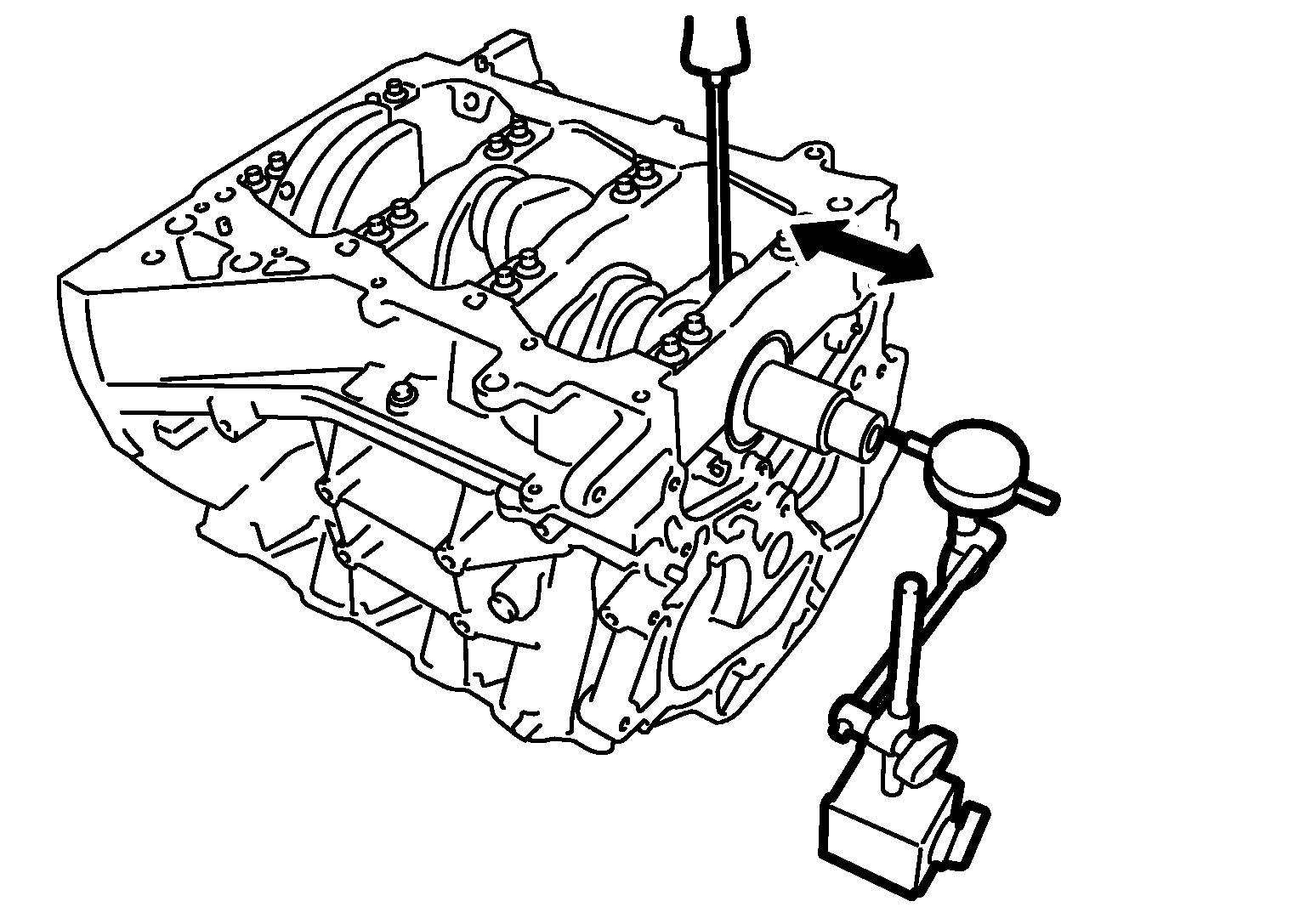

Measure the clearance between thrust bearings and crankshaft arm when crankshaft is moved fully forward or backward with dial indicator.

Courtesy of NISSAN NORTH AMERICA, INC.

Standard	: 0.10 - 0.25 mm (0.0039 - 0.0098 in)
Limit	: 0.30 mm (0.0118 in)

If the measured value exceeds the limit, replace thrust bearings, and measure again. If it still exceeds the limit, replace crankshaft also.
