Connecting Rod Diameter (Big End)

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Install connecting rod bearing cap without installing connecting rod bearing, and tightening connecting rod bolts to the specified torque. Refer to Disassembly and Assembly for the tightening procedure.

Courtesy of NISSAN NORTH AMERICA, INC.

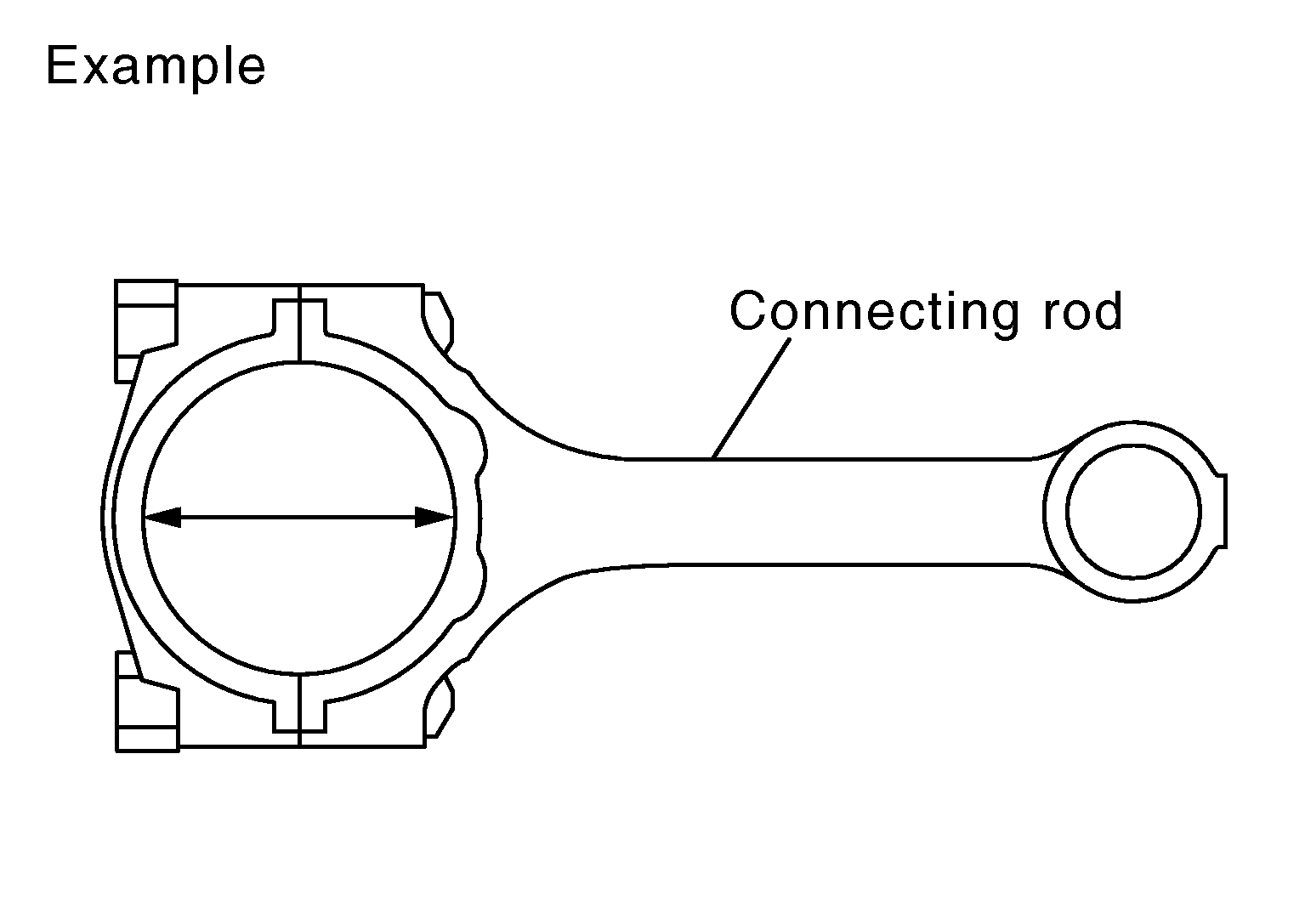

Measure the inner diameter of connecting rod big end with inside micrometer.

Standard

: 57.000 - 57.013 mm (2.2441 - 2.2446 in)

If out of the standard, replace connecting rod assembly.
