Connecting Rod Bolt Outer Diameter
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

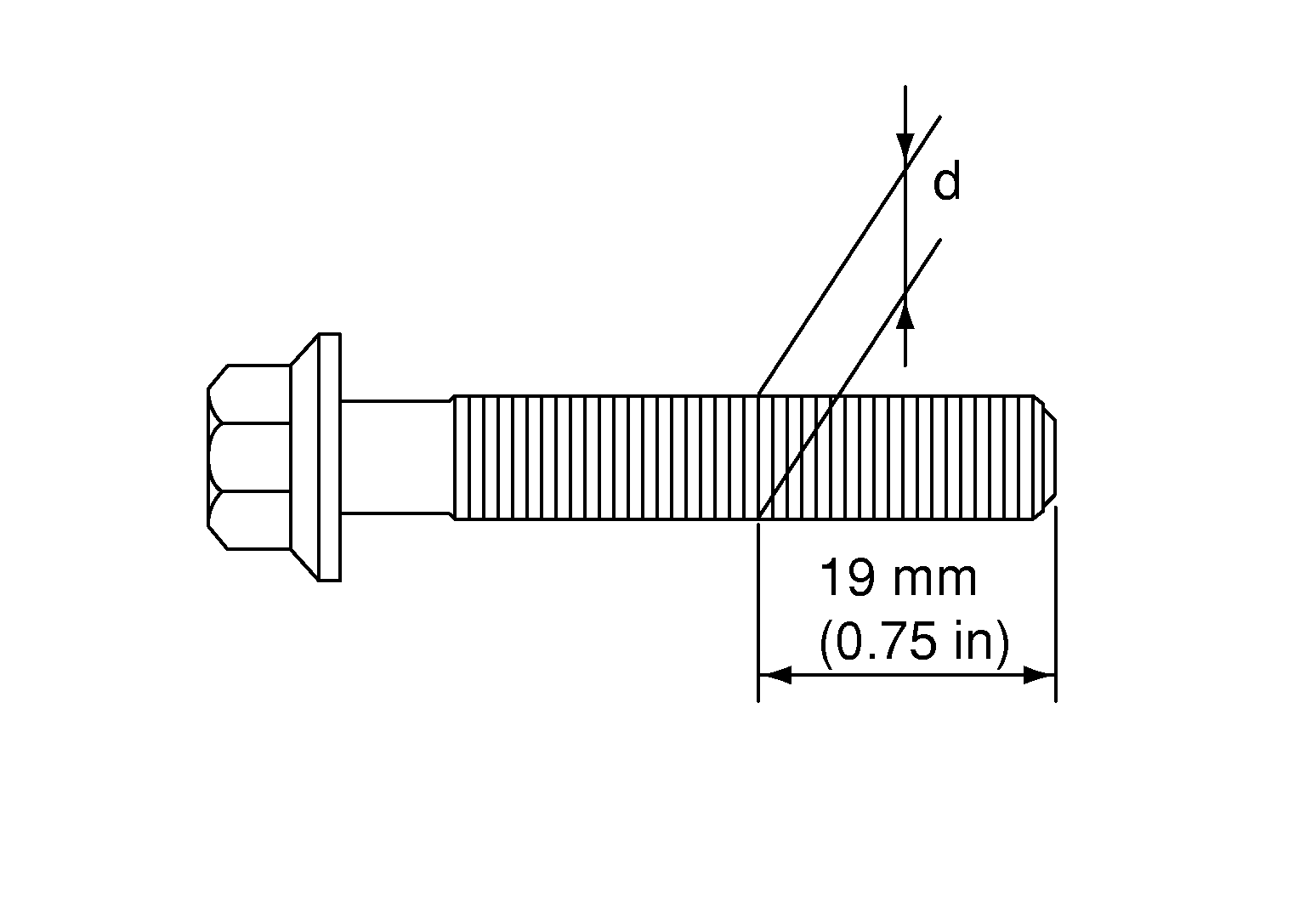

- Measure the outer diameter (d) at position shown.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- If the reduction appears in a position other than (d), regard it as (d).
|
Limit
|
: 7.75 mm (0.3051 in)
|
- When (d) exceeds the limit (when it becomes thinner), replace connecting rod bolt with new one.
