Connecting Rod Bend And Torsion
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

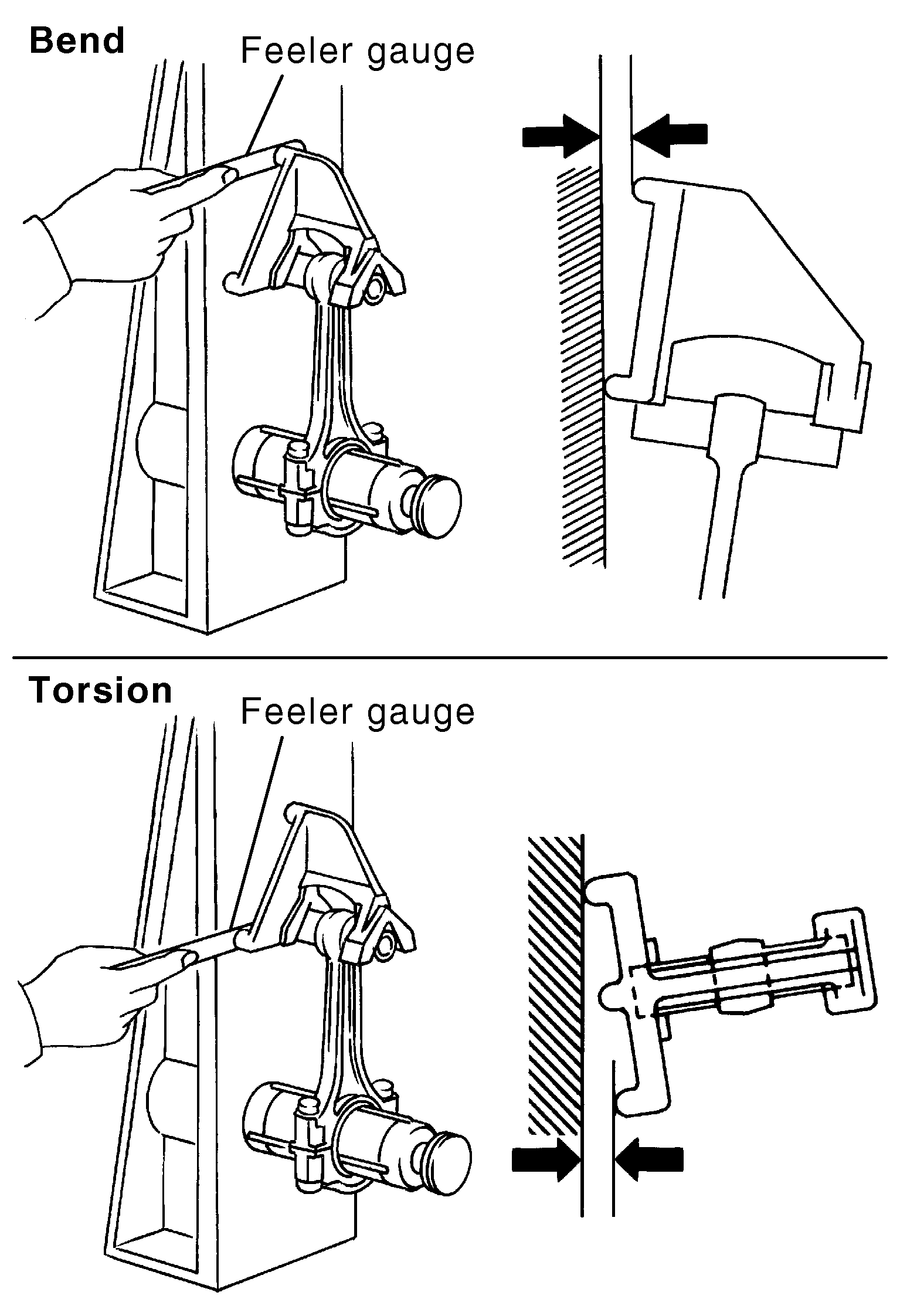

- Check with connecting rod aligner.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Bend:
|
|
Limit: 0.15 mm (0.0059 in) per 100 mm (3.94 in) length
|
|
Torsion:
|
|
Limit: 0.30 mm (0.0118 in) per 100 mm (3.94 in) length
|
- If it exceeds the limit, replace connecting rod assembly.
