Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|

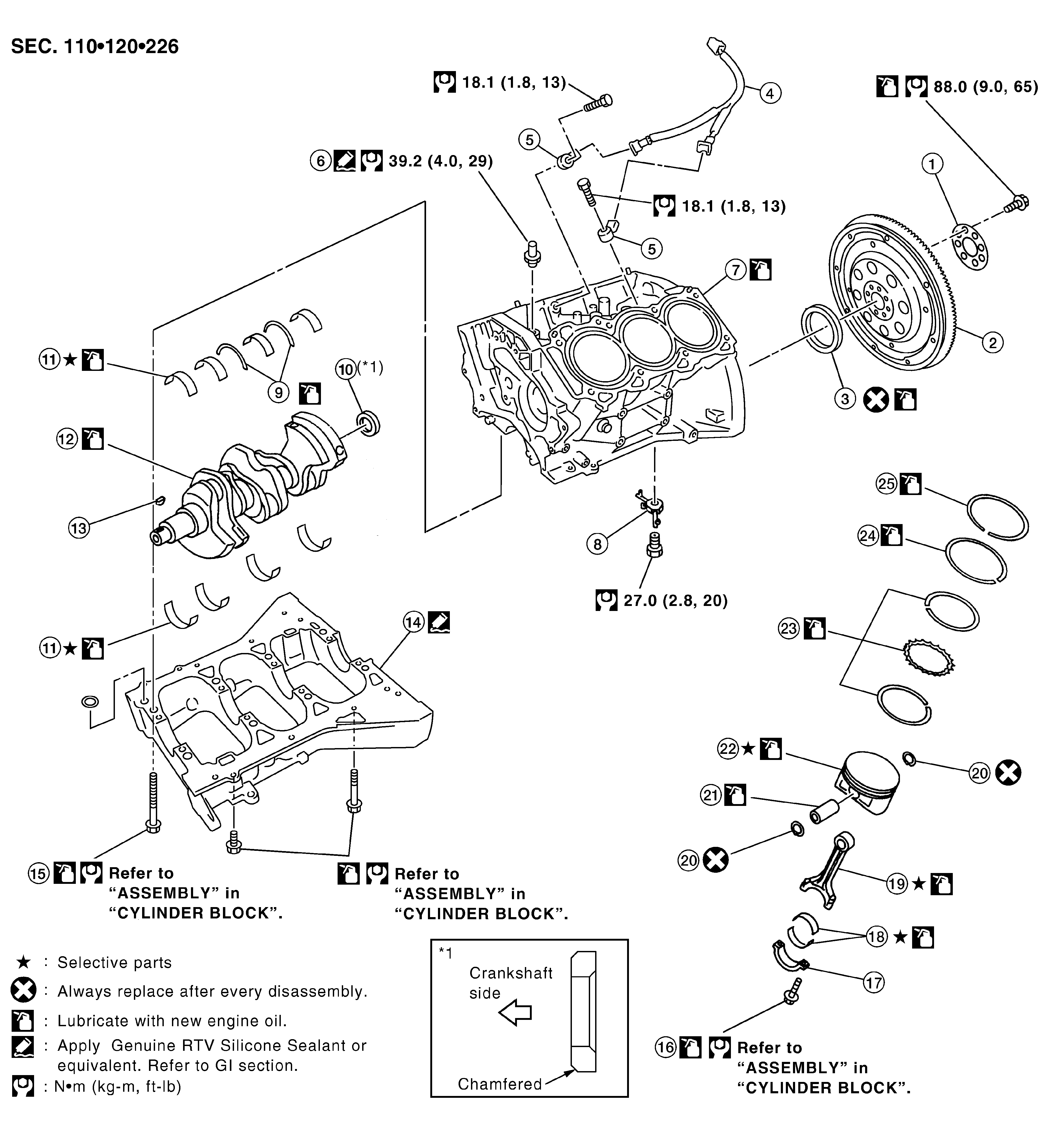

1. |
Reinforcement plate |
2. |
Drive plate |
3. |
Rear oil seal |
|
4. |
Sub harness |
5. |
Knock sensor |
6. |
Water connector |
|
7. |
Cylinder block |
8. |
Oil jet |
9. |
Thrust bearing |
|
10. |
Pilot converter |
11. |
Main bearing |
12. |
Crankshaft |
|
13. |
Crankshaft key |
14. |
Lower cylinder block |
15. |
Lower cylinder block bolt |
|
16. |
Connecting rod bolt |
17. |
Connecting rod bearing cap |
18. |
Connecting rod bearing |
|
19. |
Connecting rod |
20. |
Snap ring |
21. |
Piston pin |
|
22. |
Piston |
23. |
Oil ring |
24. |
Second ring |
|
25. |
Top ring |
|

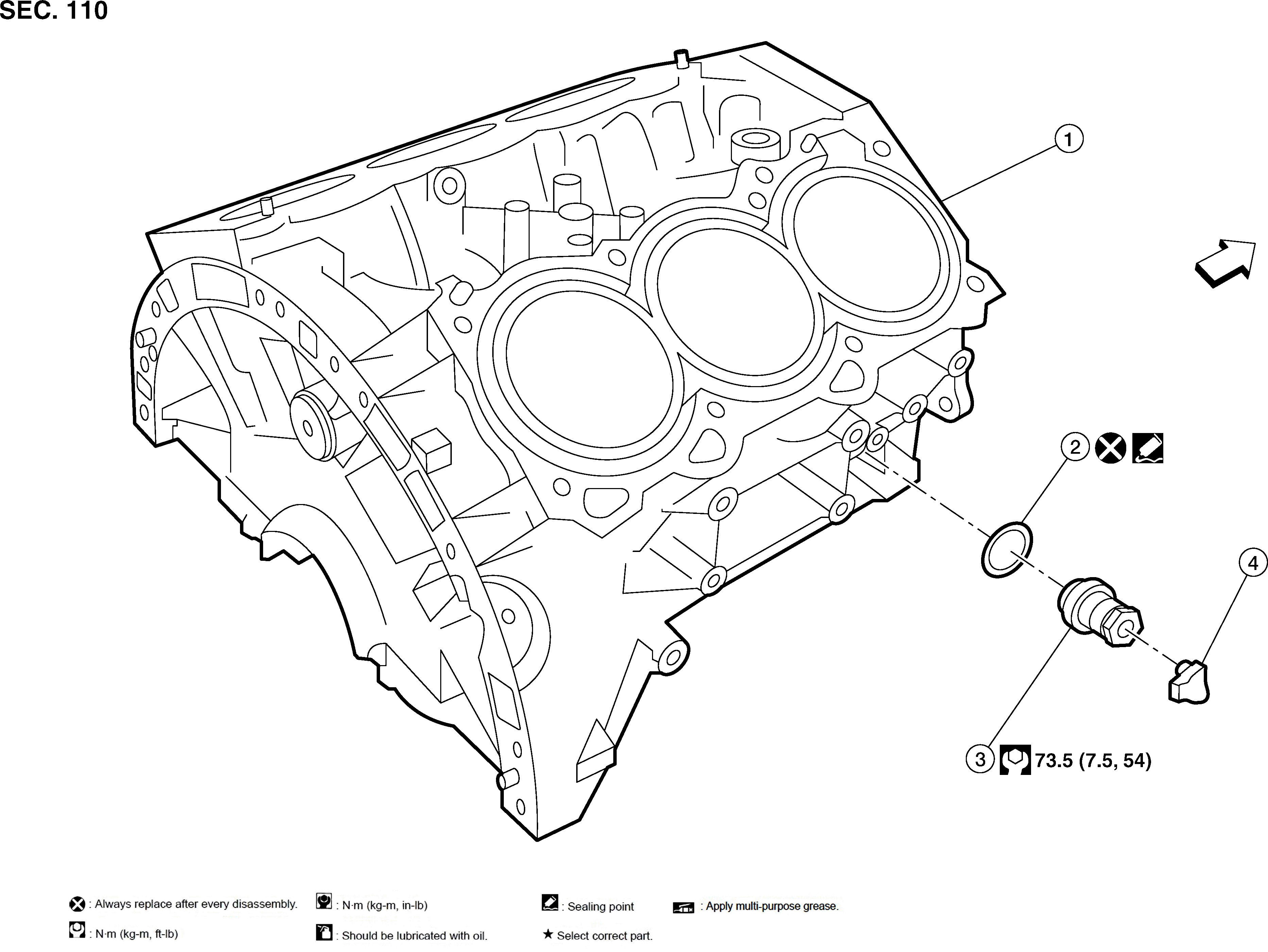

1. |
Cylinder block |
2. |
Gasket |
3. |
Coolant heater |
|
4. |
Connector protector cap |
|
Engine front |
NOTE:
- Remove liquid gasket completely after removing coolant heater.
- Apply sealant to both sides of new gasket.
- Install coolant heater with heater element inward as shown in Exploded View.
