Inspection After Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Inspect all timing chains and associated parts for wear or damage, replace as necessary.

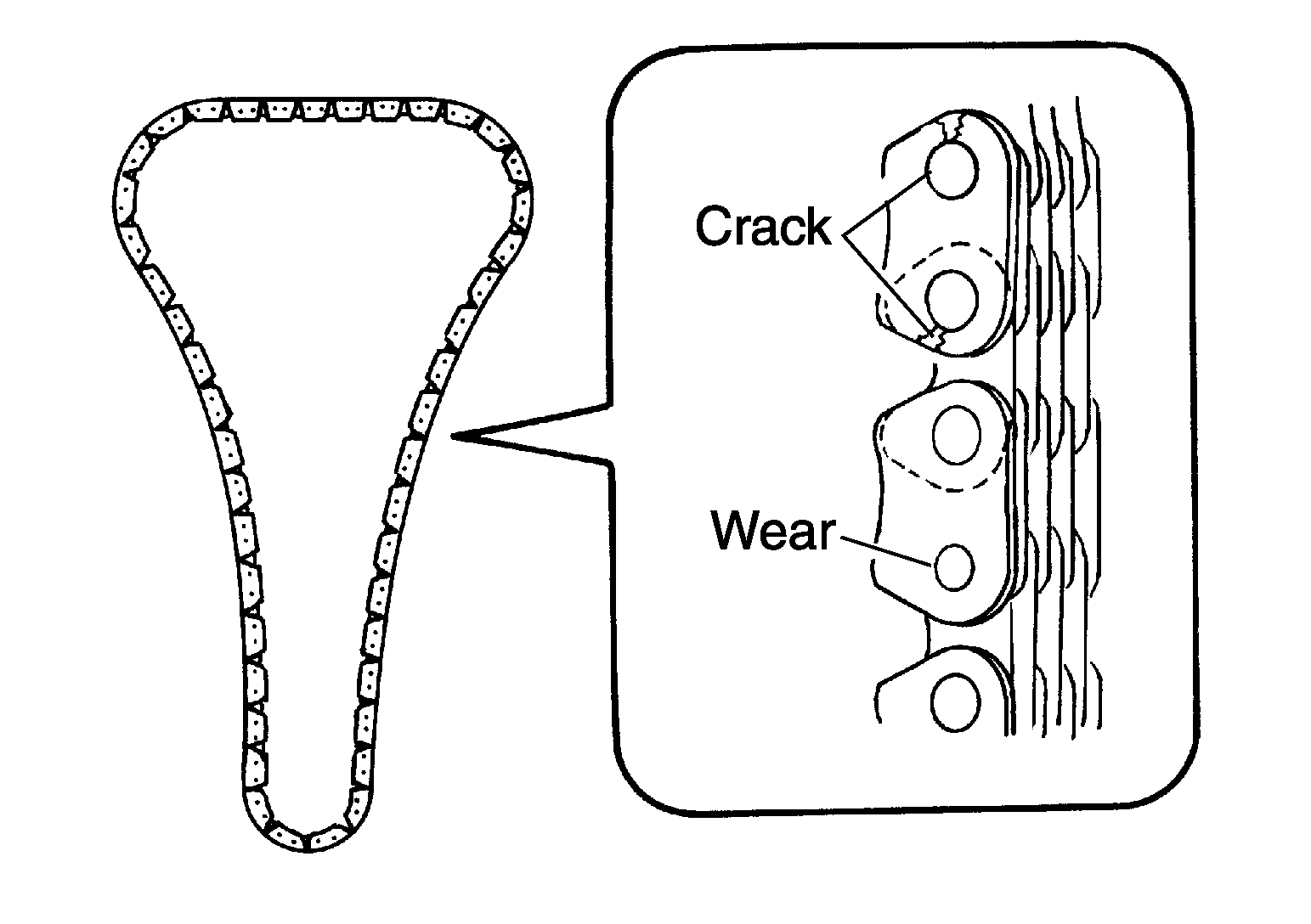

G04072972Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION: Check for cracks and any excessive wear at link plates. Replace chain (if necessary).
