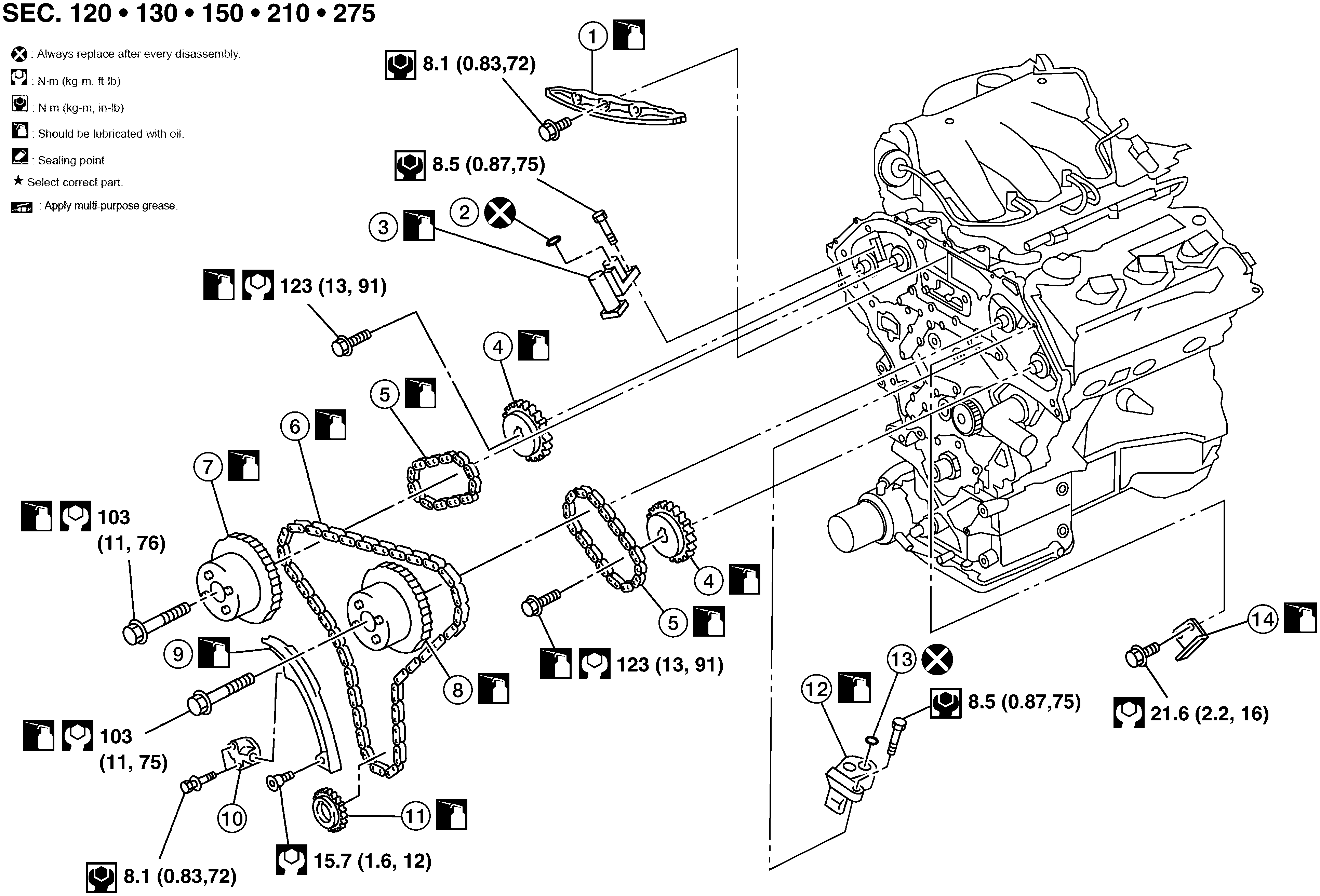

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Internal chain guide |
2. |
O-ring |
3. |
Timing chain tensioner (secondary) (RH) |
|
4. |
Camshaft sprocket (EXH) |
5. |
Timing chain (secondary) |
6. |
Timing chain (primary) |
|
7. |
Camshaft sprocket RH (INT) |
8. |
Camshaft sprocket LH (INT) |
9. |
Slack guide |
|
10. |
Timing chain tensioner (primary) |
11. |
Crankshaft sprocket |
12. |
Timing chain tensioner (secondary) (LH) |
|
13. |
O-ring |
14. |
Tension guide |
