Removal and Installation (Secondary Timing Chain Tensioner S: Removal
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the timing chains (secondary). Refer to Removal and Installation .

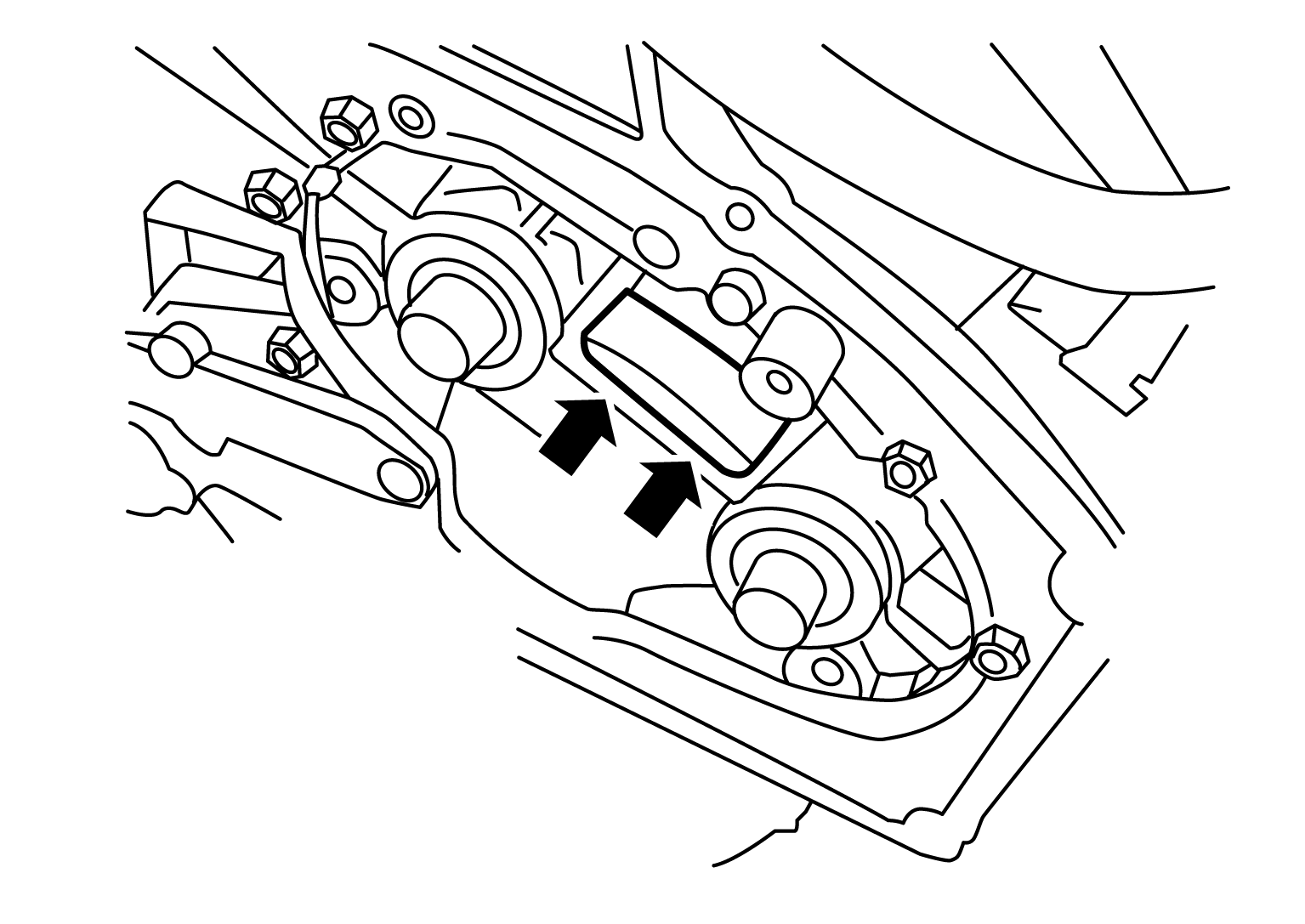

- Remove the secondary timing chain tensioner shoe by evenly prying at base of shoe with suitable tool as shown.
