Removal and Installation (Secondary Timing Chain Tensioner S: Installation
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

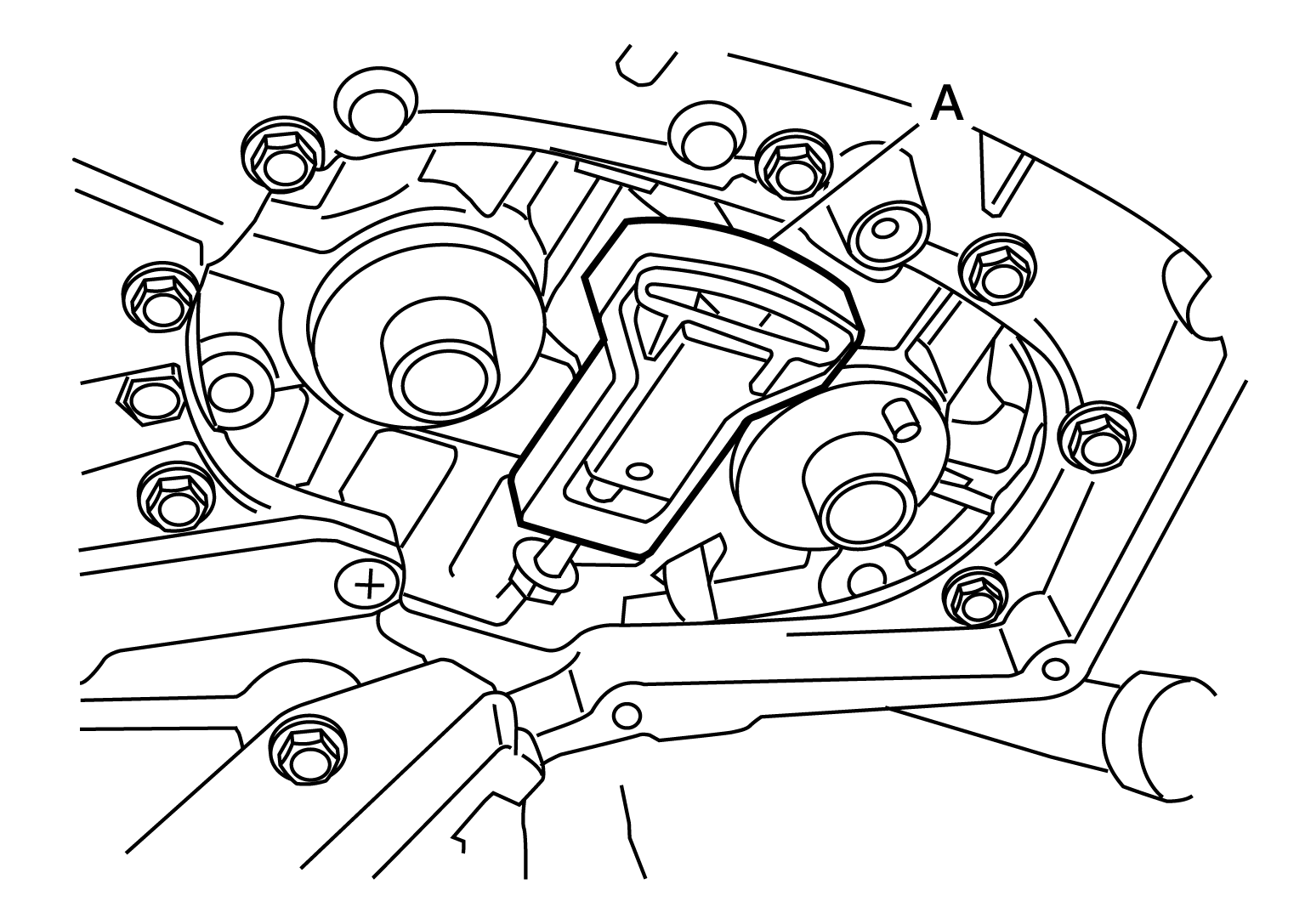

- Install new secondary timing chain tensioner shoe using Tool (A) as shown.
- Tighten the bolt until the secondary timing chain tensioner shoe is fully seated on the secondary timing chain tensioner.CAUTION: Do not overtighten bolt.
Tool number (A)
: --(J-50246)
- Tighten the bolt until the secondary timing chain tensioner shoe is fully seated on the secondary timing chain tensioner.
- Installation of the remaining components is in the reverse order of removal.
