Removal and Installation of Rear Oil Seal: Installation

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply new engine oil to new rear oil seal joint surface and seal lip.
    CAUTION: Do not reuse rear oil seal.
  2. Install rear oil seal so that each seal lip is oriented as shown.
    G00529940Courtesy of NISSAN NORTH AMERICA, INC.

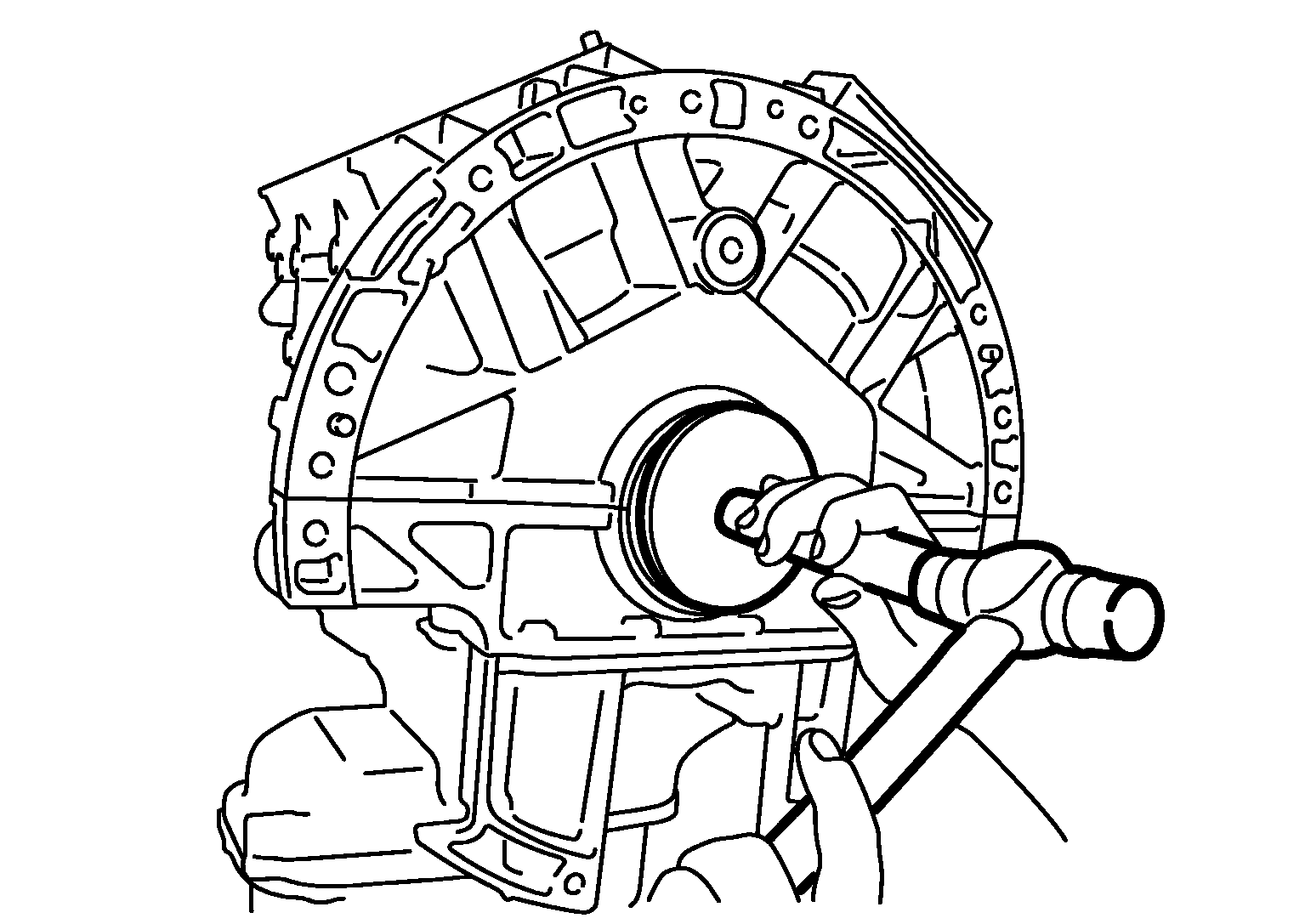

    • Install new rear oil seal using Tool.
      G06602733Courtesy of NISSAN NORTH AMERICA, INC.

      Tool number

      : -- (J-49815)

      : -- (J-8092)
      CAUTION:
      • Be careful not to damage crankshaft or cylinder block.
      • Press-fit oil seal straight to avoid causing burrs or tilting.
      • Do not touch grease applied to oil seal lip.

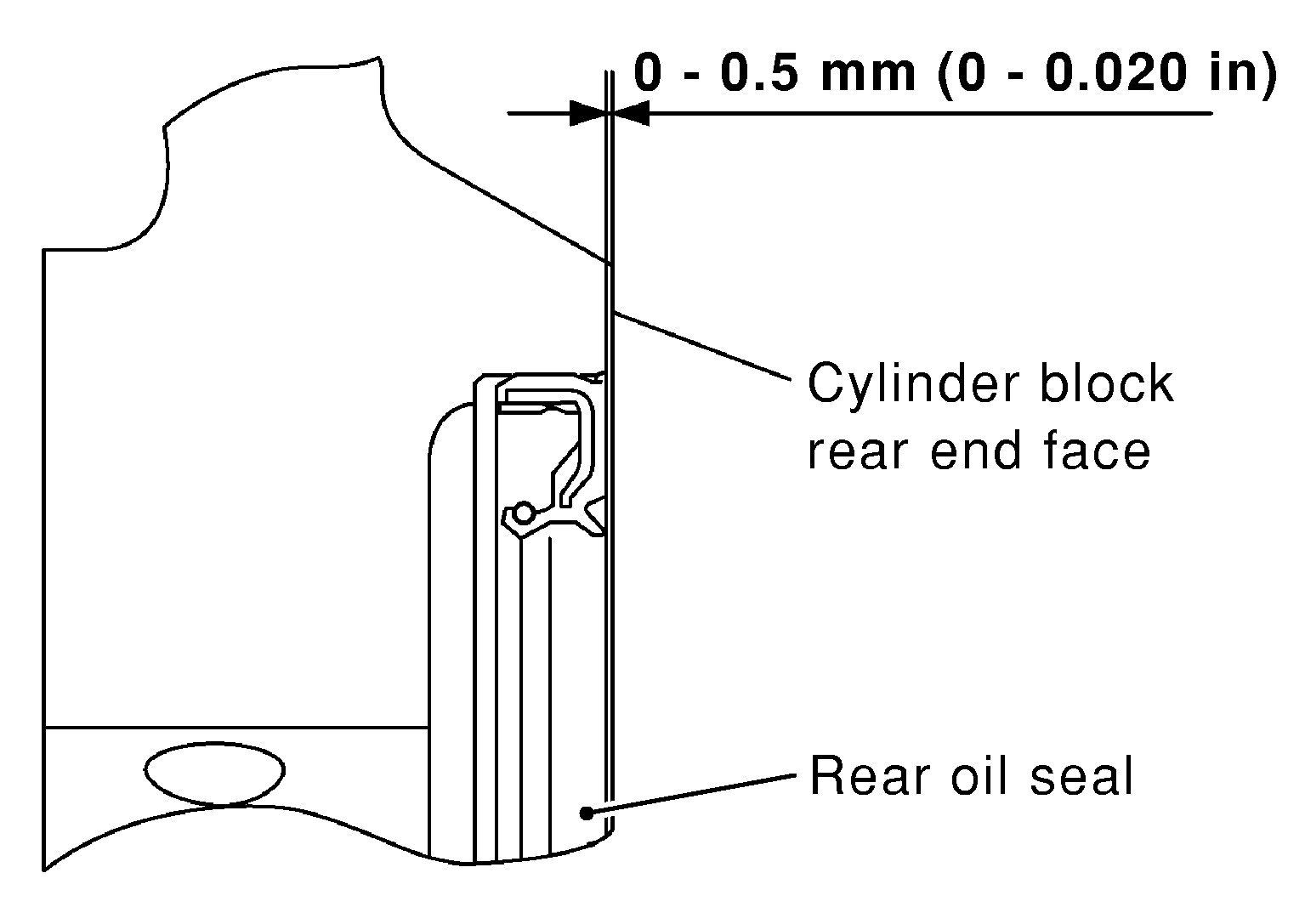

    • Press in rear oil seal to the position as shown.
      G04146457Courtesy of NISSAN NORTH AMERICA, INC.
  3. Installation of the remaining components is in the reverse order of removal.
    CAUTION:
    • When replacing an engine or transmission, ensure the dowels are installed correctly during reassembly.
    • Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of drivetrain components.
