Oil Pan Upper

Removal

1. Remove the front under cover. Refer to Removal and Installation .
2. Remove air duct and resonator assembly. Refer to Removal and Installation .
3. Remove the crankcase ventilation hose.
4. Remove drive belt. Refer to Removal and Installation .
5. Drain engine coolant. Refer to Changing Engine Coolant .
6. Remove oil level gauge and oil level gauge guide.
7. Disconnect A/T fluid cooler tube brackets and position out of the way.
8. Disconnect oil cooler hoses and remove oil cooler (if necessary). Refer to Removal and Installation .
9. Remove the fender protector (RH). Refer to Removal and Installation .
10. Remove the heat shield bolts (RH) and reposition the heat shield (RH).
11. Remove the starter heat shield.
12. Disconnect starter assembly.
13. Remove the air conditioning compressor and set aside without disconnecting the A/C pipes and hoses. Refer to Removal and Installation for A/C Compressor - VQ40DE .
14. Disconnect oil pressure switch and remove (if necessary).
15. Remove oil pan (lower). Refer to OIL PAN LOWER.
16. Remove oil strainer.
17. Remove rear cover plate.
18. Remove transmission joint bolts which pierce oil pan (upper).
19. Loosen oil pan (upper) bolts with power tool in reverse order as shown.

    Courtesy of NISSAN NORTH AMERICA, INC.

    • Insert Tool between oil pan (upper) and lower cylinder block.
      • Tap (1) Tool to insert it and then slide (2) it by tapping on the side of the Tool as shown.

    Courtesy of NISSAN NORTH AMERICA, INC.

    Tool number

    : KV10111100 (J-37228)

    CAUTION: Be careful not to damage mating surfaces.
20. Remove the oil pan (upper).
21. Remove O-rings from bottom of lower cylinder block and oil pump.

    Courtesy of NISSAN NORTH AMERICA, INC.

    CAUTION: Do not reuse O-rings.

Inspection After Removal

Clean oil strainer.

Installation

1. Install oil pan (upper) as follows:

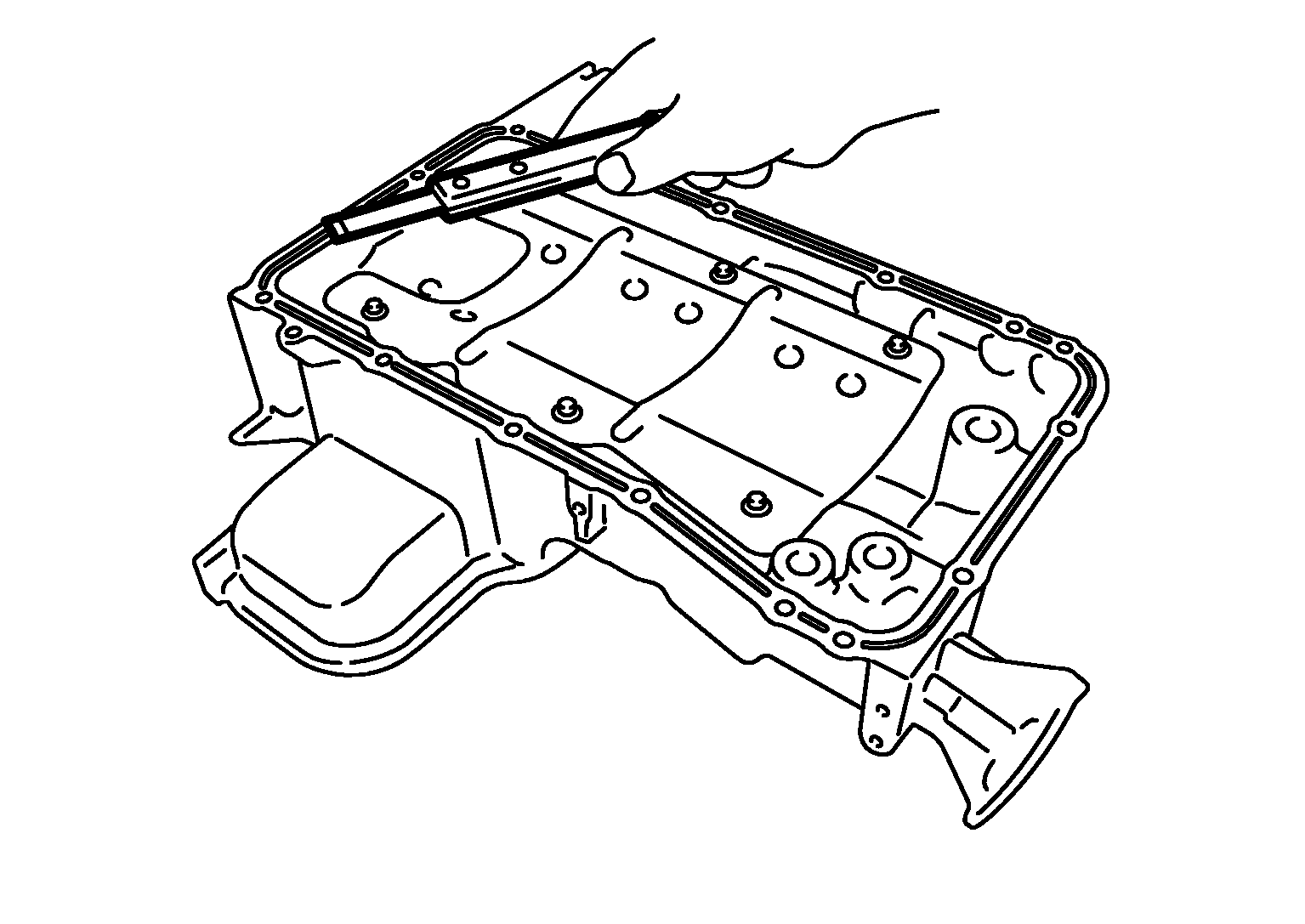

   1. Use scraper to remove old liquid gasket from mating surfaces.

      Courtesy of NISSAN NORTH AMERICA, INC.

      • Also remove the old liquid gasket from mating surface of lower cylinder block.
      • Remove old liquid gasket from the bolt holes and threads.
      CAUTION: Do not scratch or damage the mating surfaces when cleaning off old liquid gasket.

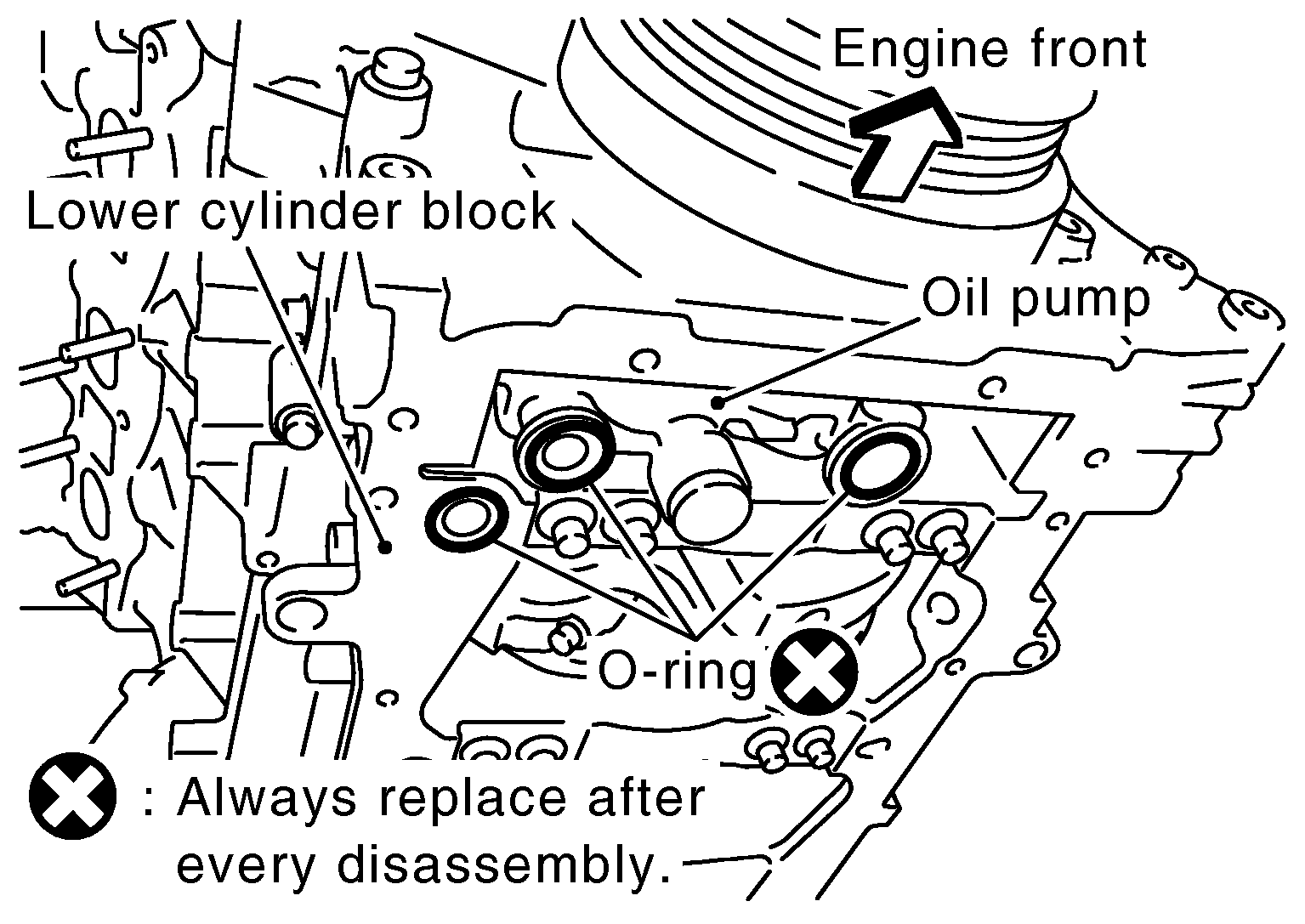

   2. Install new O-rings on the bottom of lower cylinder block and oil pump.

      Courtesy of NISSAN NORTH AMERICA, INC.

      CAUTION: Do not reuse O-rings.

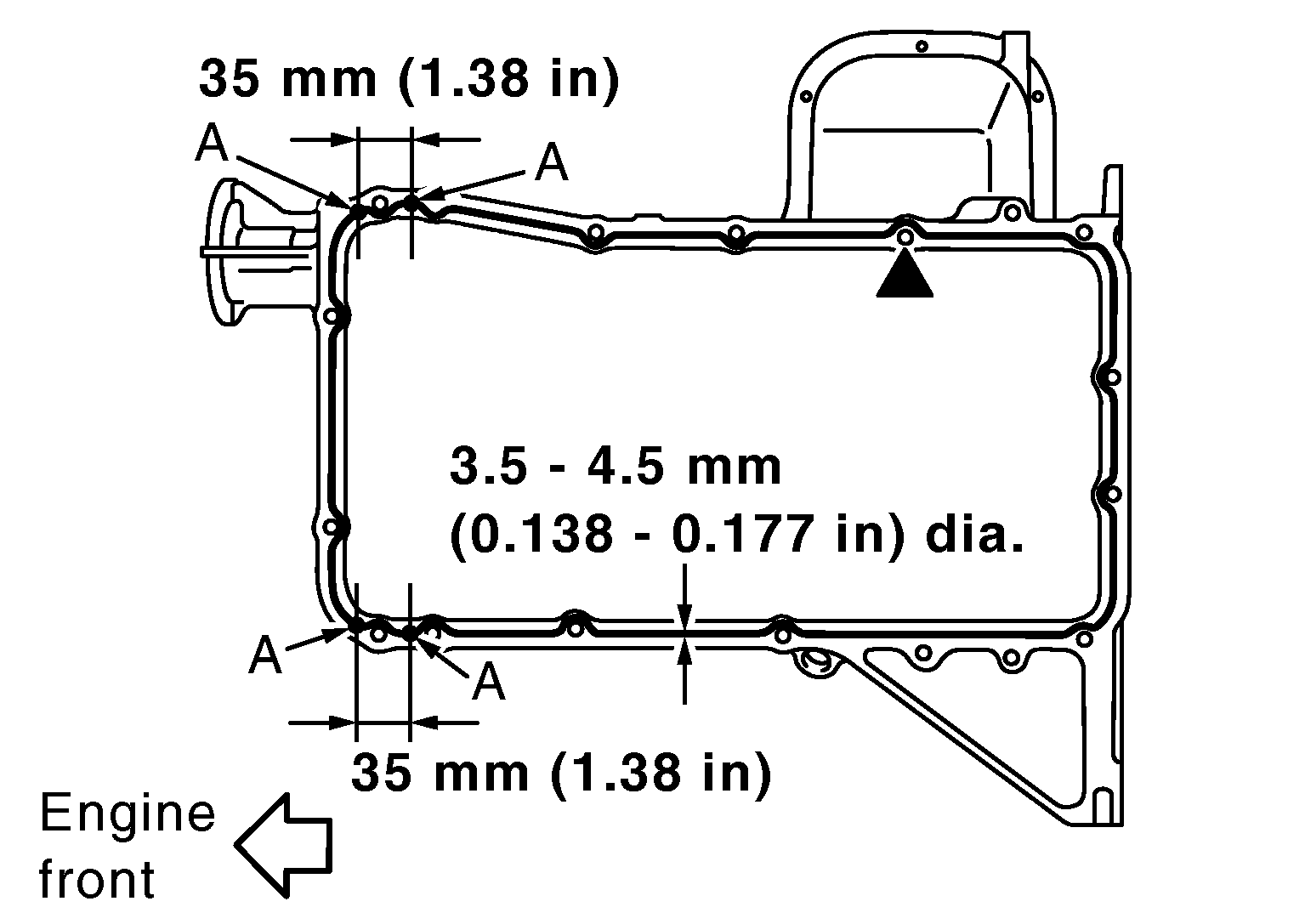

   3. Apply a continuous bead of liquid gasket using a suitable tool to the lower cylinder block mating surfaces of oil pan (upper) as shown.

      Courtesy of NISSAN NORTH AMERICA, INC.

      CAUTION:

      • Remove water, oil, dust, dirt, or other foreign material on all sealing surfaces prior to installation.
      • For bolt holes with mark, apply liquid gasket outside the hole.
      • Apply a bead of 4.5 to 5.5 mm (0.177 to 0.217 in) in diameter to area (A).
      • Attaching should be done within 5 minutes after coating.
      • The components must be installed within 5 minutes of the liquid gasket application. Then allow 30 minutes for the liquid gasket to set before refilling the engine oil.
      • Use Genuine RTV Silicone Sealant or equivalent. Refer to Recommended Chemical Products and Sealants .
   4. Install oil pan (upper).
      CAUTION:

      • Do not reuse O-rings.
      • Install avoiding misalignment of both oil pan gaskets and O-rings.

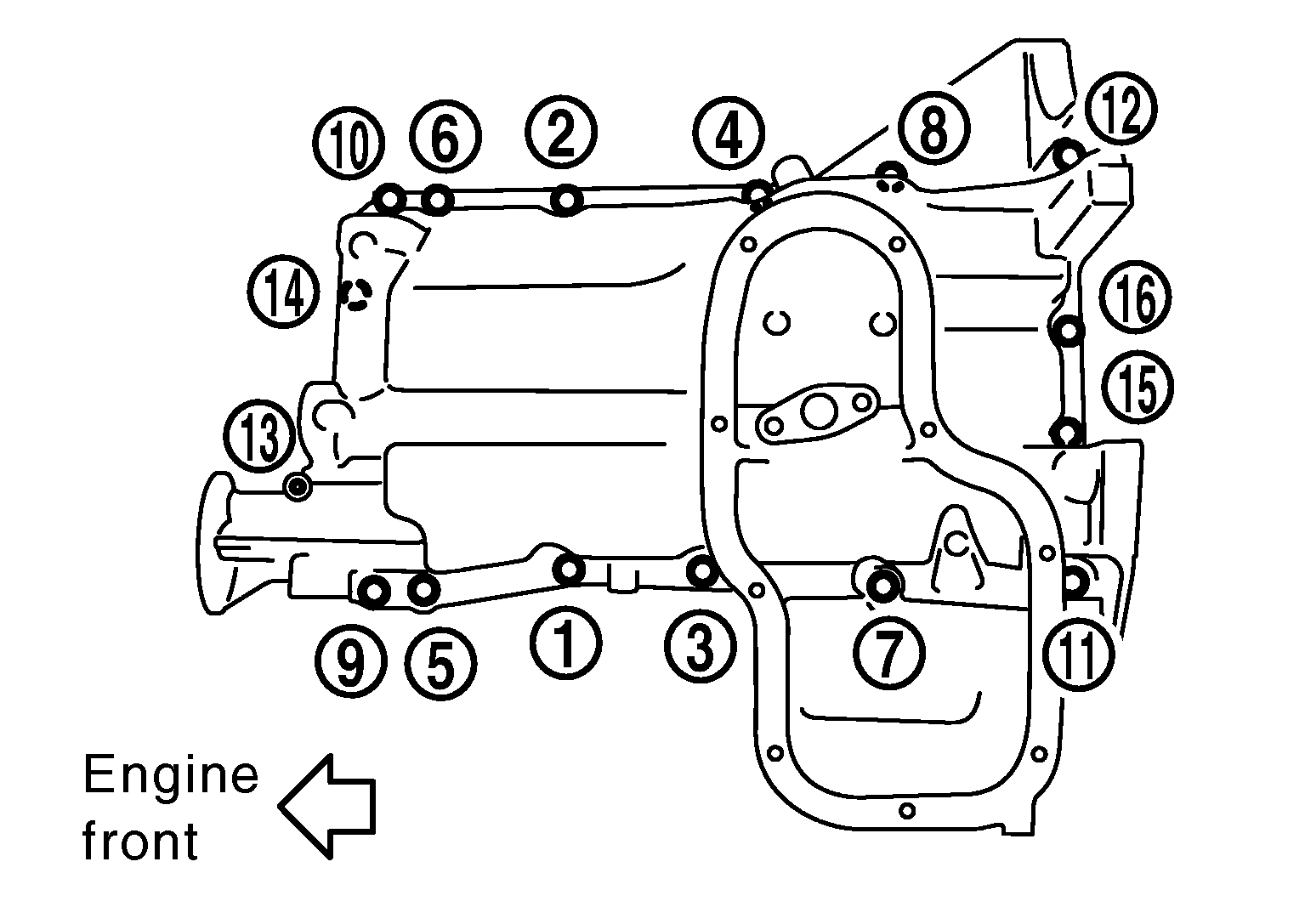

      • Tighten oil pan (upper) bolts in numerical order as shown.
        Fig 1: Oil Pan (Upper) Bolts Tightening Sequence

        Courtesy of NISSAN NORTH AMERICA, INC.
      • There are two types of bolts.

        M8 x 100 mm (3.97 in)	: 7, 11, 12, 13
        M8 x 25 mm (0.98 in)	: All except the above

   5. Tighten transmission joint bolts.
2. Install oil strainer to oil pan (upper).
3. Install oil pan lower. Refer to OIL PAN LOWER.
4. Installation of the remaining components is in the reverse order of removal.

Inspection After Installation

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required quantity, fill to the specified level. Refer to Fluids and Lubricants .
• Use procedure below to check for fuel leakage.
• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leakage at connection points.
• Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.
  NOTE: If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop after hydraulic pressure rises.
• Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gas, or any oils/fluids including engine oil and engine coolant.
• Bleed air from passages in lines and hoses, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to specified level, if necessary.
• Summary of the inspection items:

  Item		Before starting engine	Engine running	After engine stopped
  Engine coolant		Level	Leakage	Level
  Engine oil		Level	Leakage	Level
  Transmission/transaxle fluid	A/T and CVT Models	Leakage	Level/Leakage	Leakage
  	M/T Models	Level/Leakage	Leakage	Level/Leakage
  Other oils and fluids*		Level	Leakage	Level
  Fuel		Leakage	Leakage	Leakage
  Exhaust gas		--	Leakage	--

  *Power steering fluid, brake fluid, etc.
