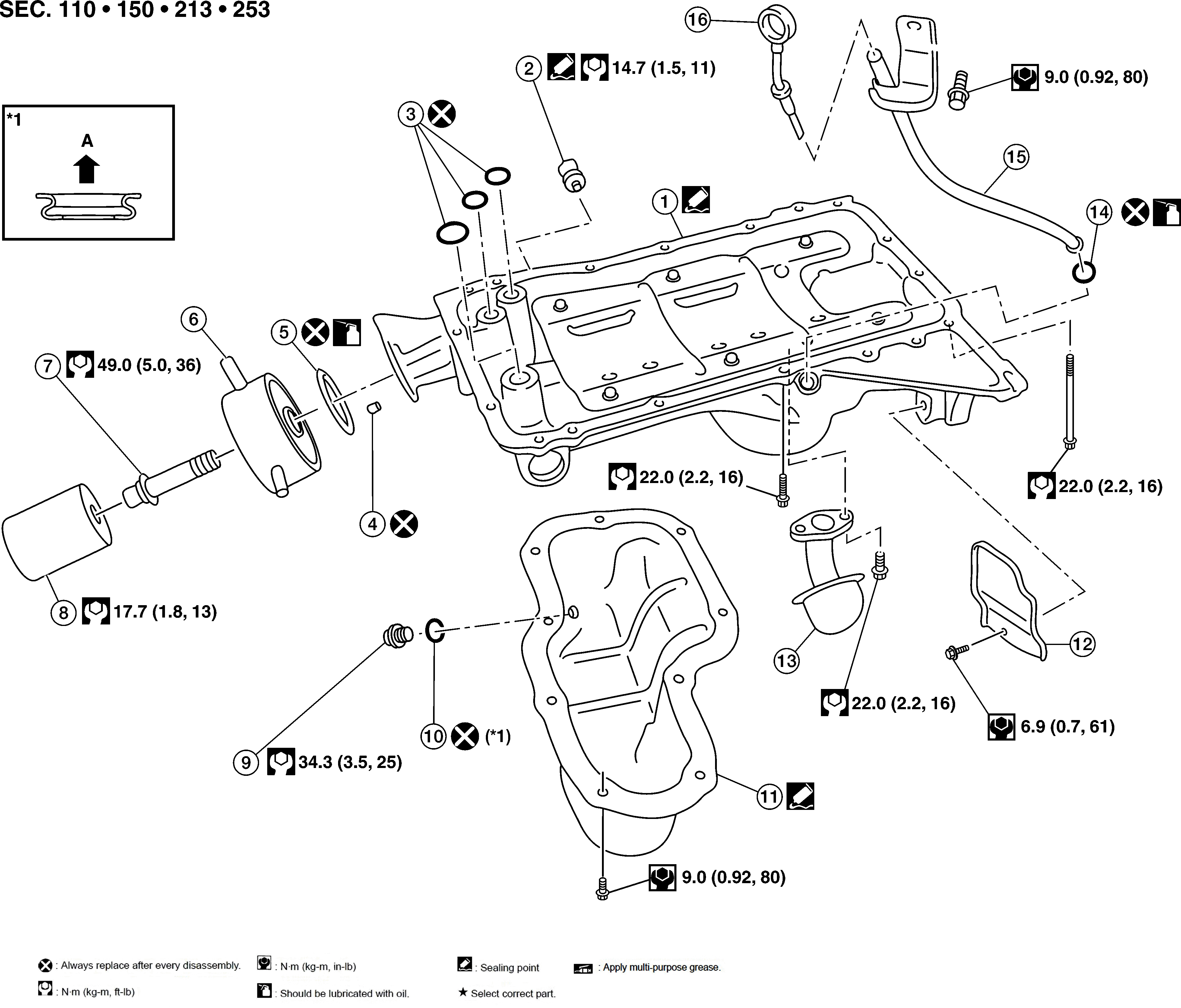

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Oil pan (upper) |
2. |
Oil pressure switch |
3. |
O-rings |
|
4. |
Relief valve |
5. |
O-ring |
6. |
Oil cooler |
|
7. |
Connector bolt |
8. |
Oil filter |
9. |
Drain plug |
|
10. |
Drain plug washer |
11. |
Oil pan (lower) |
12. |
Rear cover plate |
|
13. |
Oil strainer |
14. |
O-ring |
15. |
Oil level gauge guide |
|
16. |
Oil level gauge |
A. |
Oil pan side |
