Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove intake manifold collector. Refer to Removal and Installation .
  2. Remove fuel tube and fuel injector assembly. Refer to Removal and Installation .

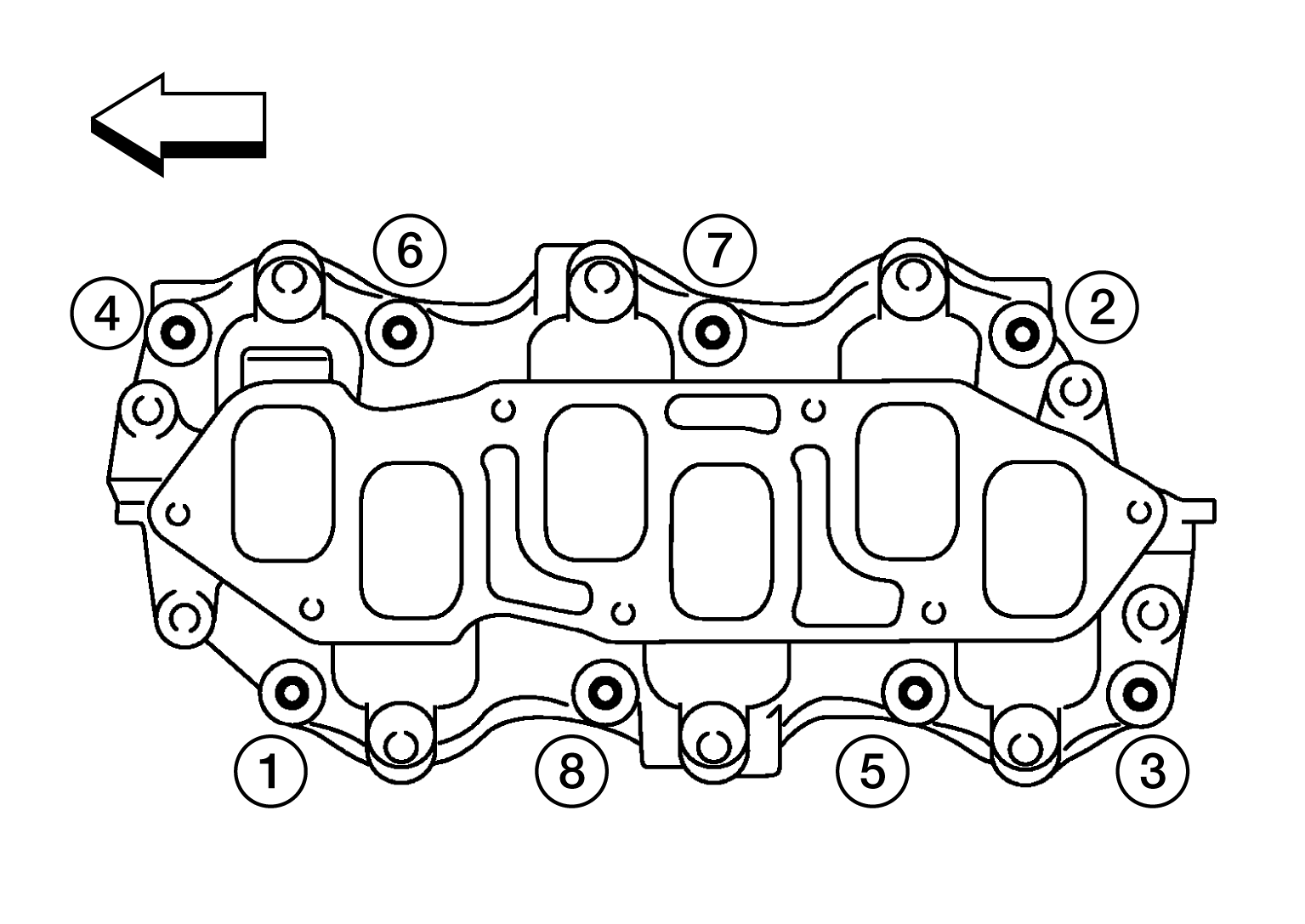

  3. Loosen nuts and bolts in the order as shown to remove the intake manifold.
    G08161221Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  4. Remove gaskets.
    CAUTION: Cover engine openings to avoid entry of foreign materials.
