Removal and Installation: Installation

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal. Note the following:

Intake Manifold

If stud bolts were removed from cylinder head, install them and tighten to the specified torque.

NOTE: Remove water, oil, dust, dirt, or other foreign material on all sealing surfaces prior to installation.

Intake manifold studs

: 10.8 N.m (1.1 kg-m, 8 ft-lb)

Tighten all nuts and bolts to the specified torque in two or more steps in numerical order as shown.

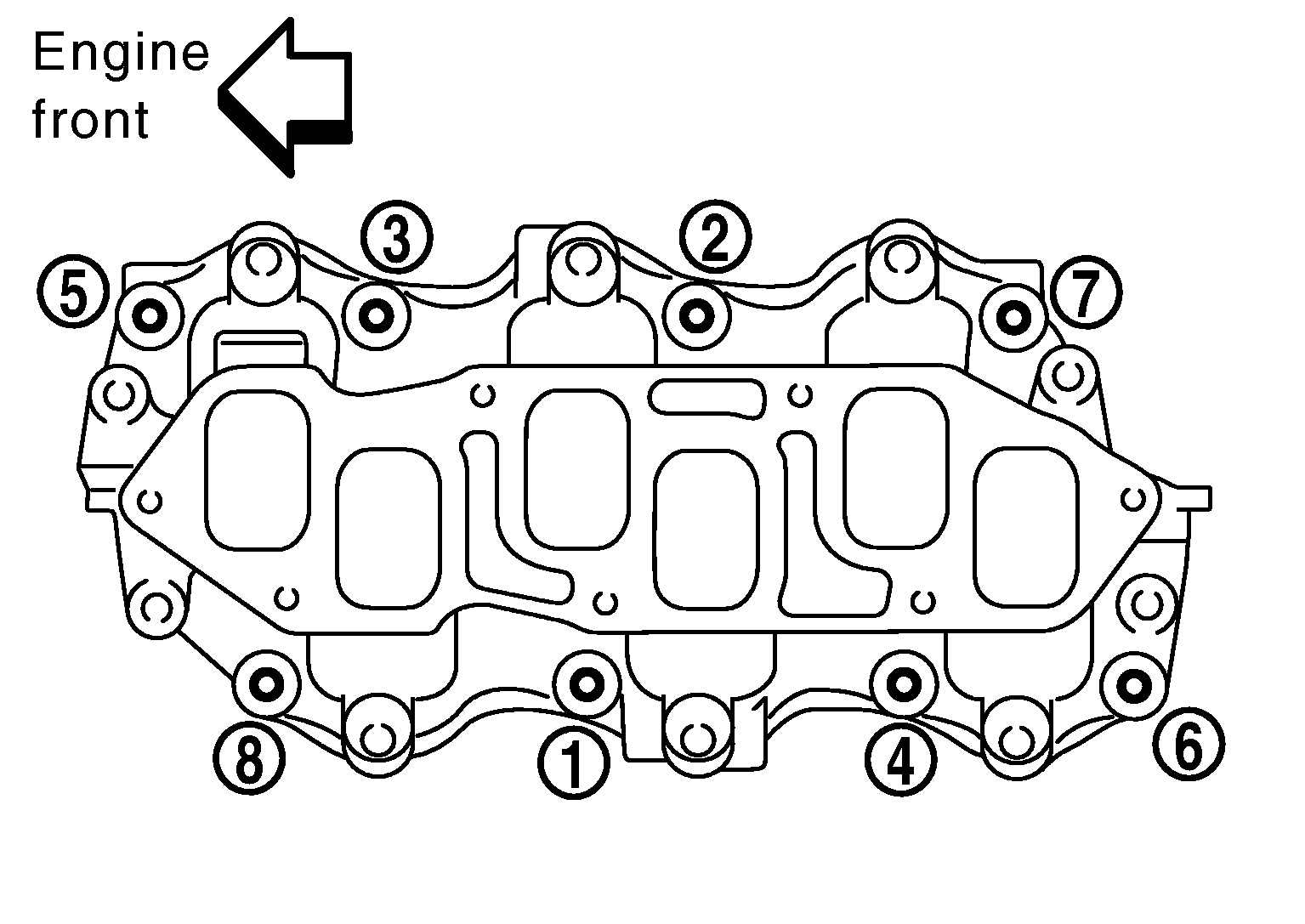

Fig 1: Intake Manifold Bolt And Nut Tightening Sequence

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse gasket.

Intake manifold bolt and nuts
1st step	: 7.4 N.m (0.75 kg-m, 65 in-lb)
2nd step and after	: 29.0 N.m (3.0 kg-m, 21 ft-lb)

Adjust the neutral position steering angle sensor. Refer to Description .
Erase the ECM memory. Refer to Description .
