Inspection After Removal
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
Surface Distortion

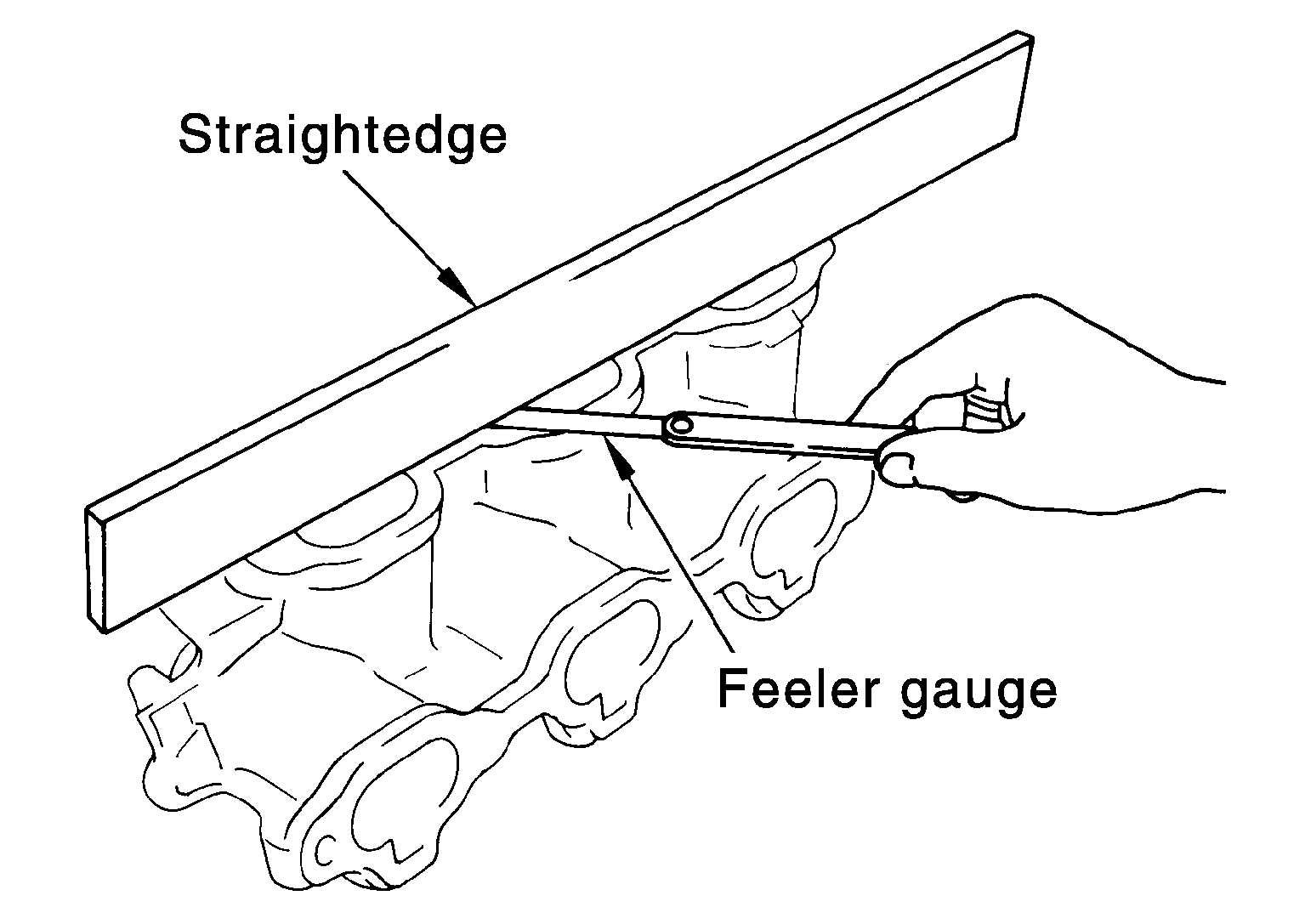

- Check the surface distortion of the intake manifold mating surface with a straightedge and feeler gauge.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Limit
|
: 0.1 mm (0.004 in)
|
- Replace the intake manifold if the surface distortion exceeds the limit.
