Removal and Installation: Installation

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal. Note the following:

Intake Manifold Collector

If intake manifold collector stud bolts were removed from intake manifold, install them and tighten to the specified torque.

Intake manifold collector stud bolts

: 6.9 N.m (0.7 kg-m, 61 in-lb)

Tighten intake manifold collector bolts and nuts in numerical order as shown.

CAUTION: Do not reuse gasket.

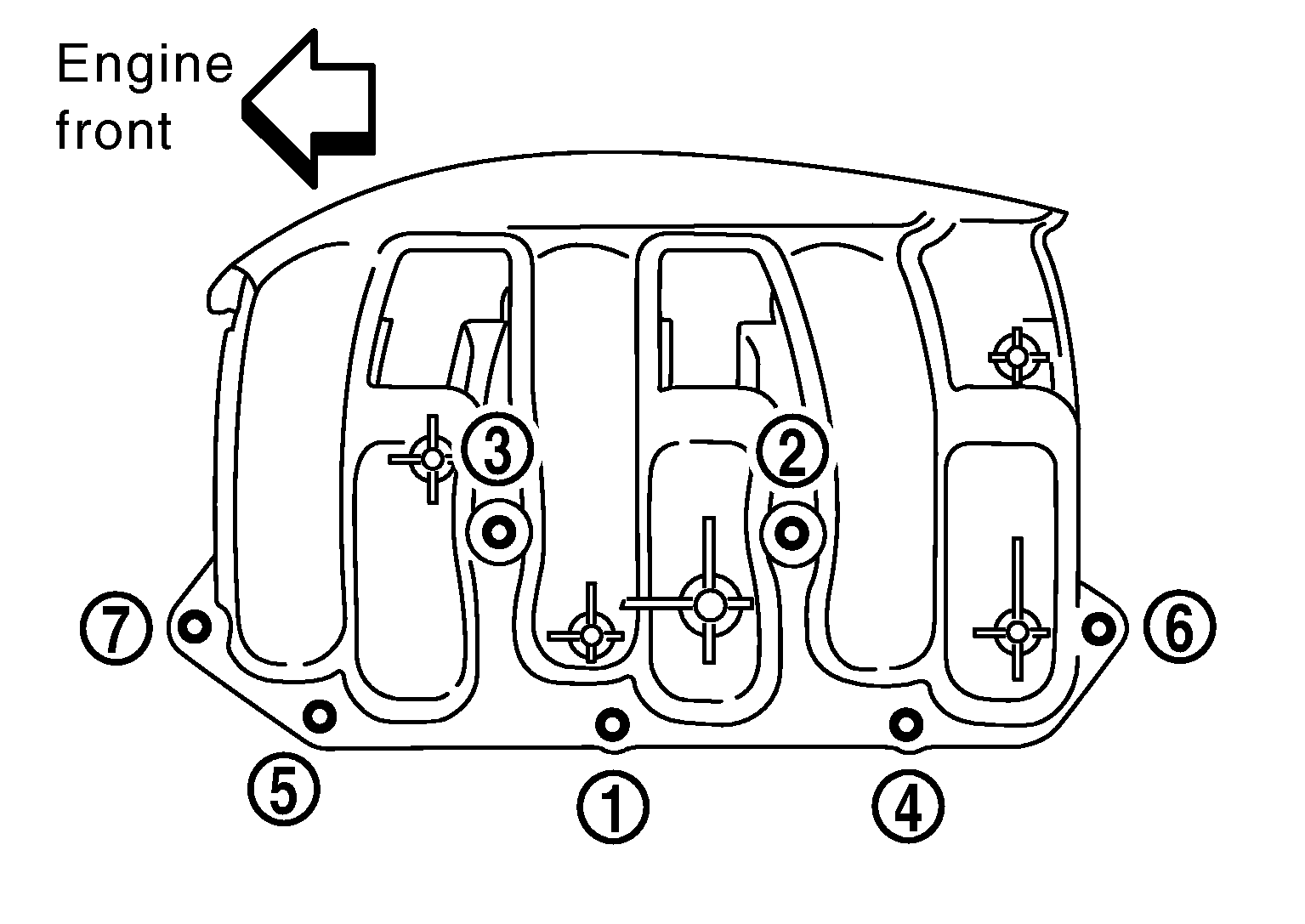

Fig 1: Intake Manifold Collector Bolts Tightening Sequence

Courtesy of NISSAN NORTH AMERICA, INC.

Intake manifold collector bolts and nuts

: 11.0 N.m (1.1 kg-m, 8 ft-lb)

Tighten bolts in the order shown to install the intake manifold collector support.

Courtesy of NISSAN NORTH AMERICA, INC.

Electric Throttle Control Actuator

Tighten bolts in numerical order as shown.

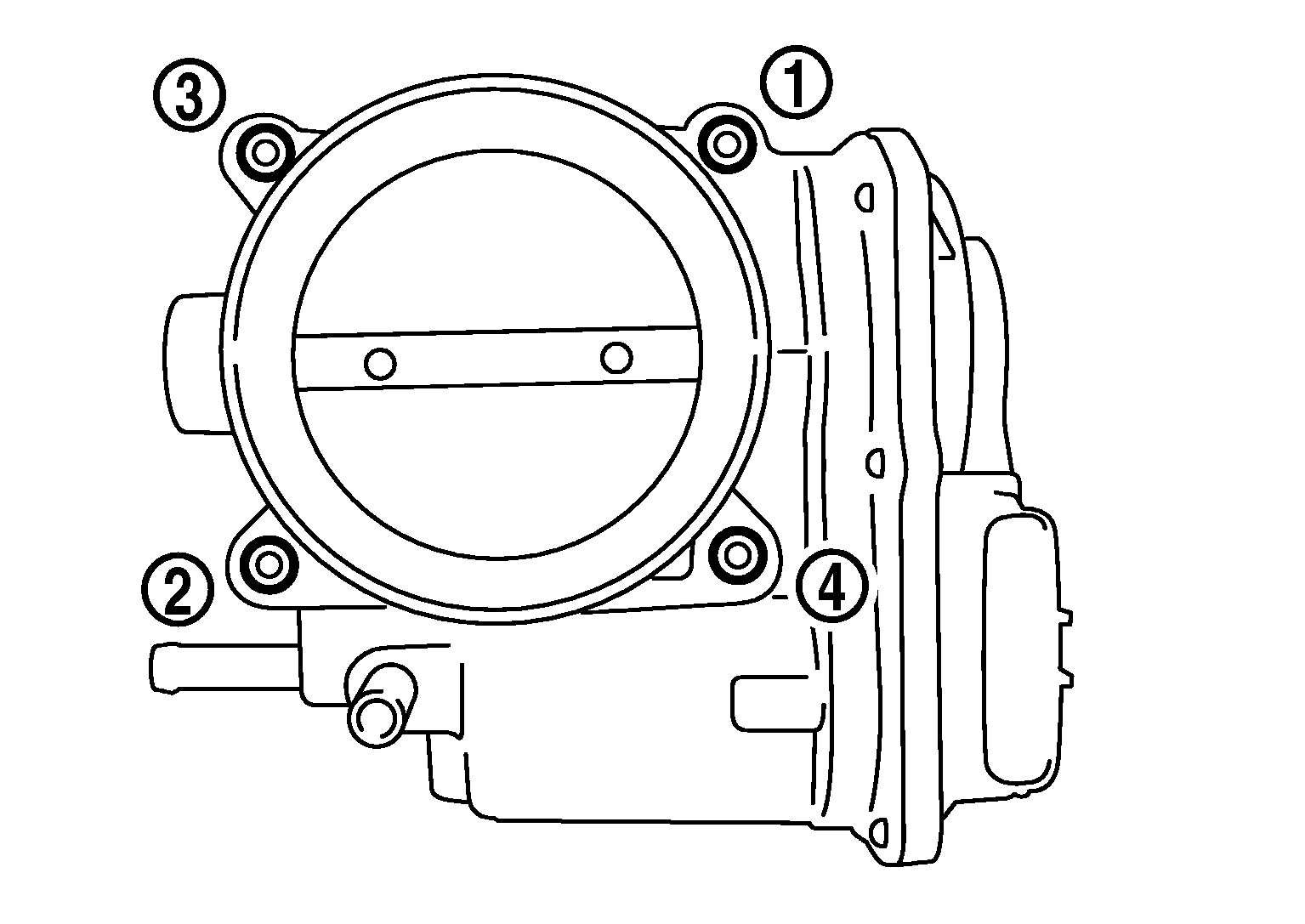

Fig 2: Electric Throttle Control Actuator Bolts Tightening Sequence
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse gasket.
Perform the "Throttle Valve Closed Position Learning" when harness connector of electric throttle control actuator is disconnected. Refer to Description .
Perform the "Idle Air Volume Learning" and "Throttle Valve Closed Position Learning" when electric throttle control actuator is replaced. Refer to Description .
