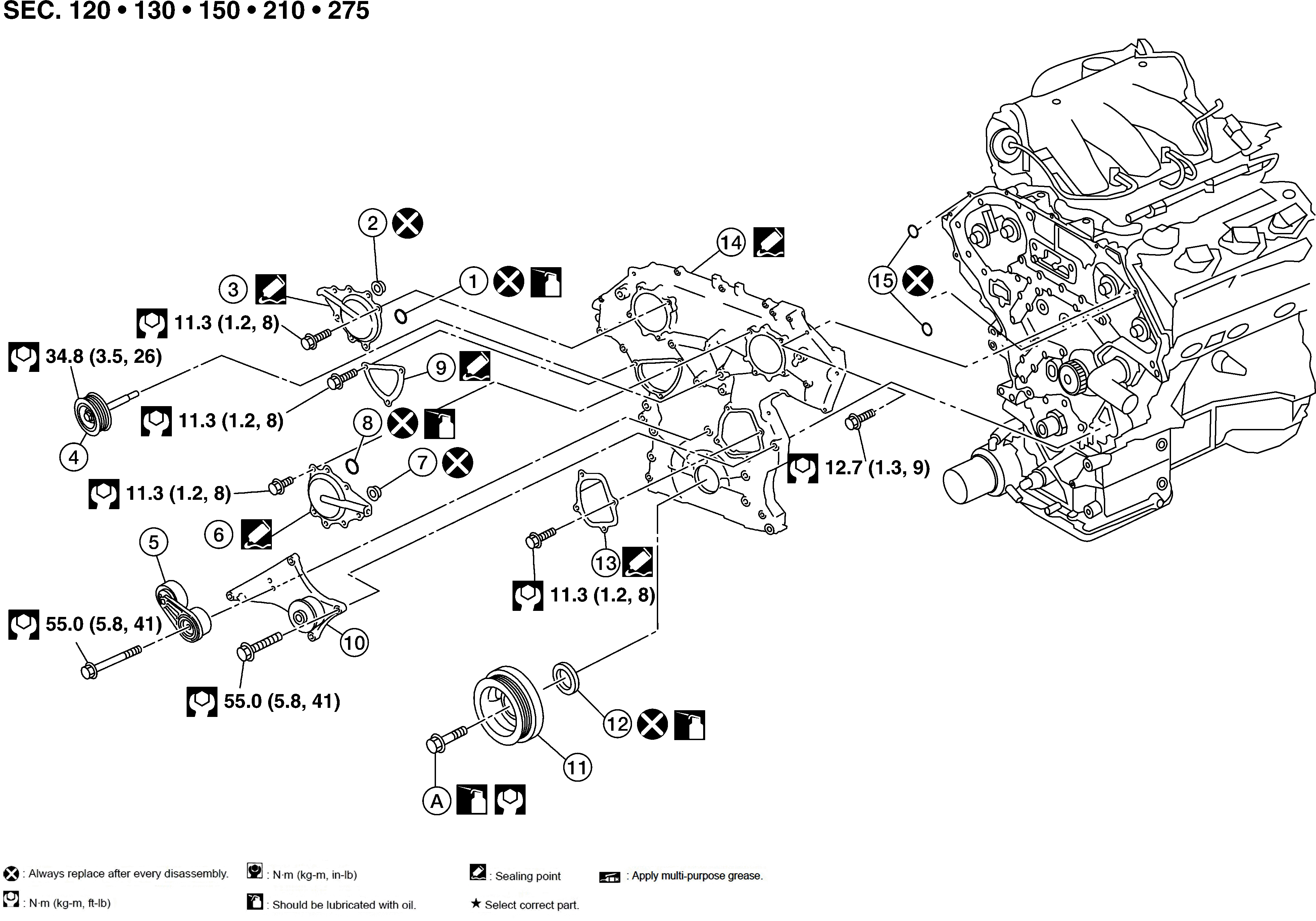

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
O-ring |
2. |
Collared O-ring |
3. |
Intake valve timing control cover (RH) |
|
4. |
Idler pulley |
5. |
Drive belt auto-tensioner |
6. |
Intake valve timing control cover (LH) |
|
7. |
Collared O-ring |
8. |
O-ring |
9. |
Chain tensioner cover |
|
10. |
Cooling fan bracket |
11. |
Crankshaft pulley |
12. |
Front oil seal |
|
13. |
Water pump cover |
14. |
Front timing chain case |
15. |
O-ring |
|
A. |
Refer to Removal and Installation . |
