Removal and Installation (Three Way Catalyst): Notes
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|

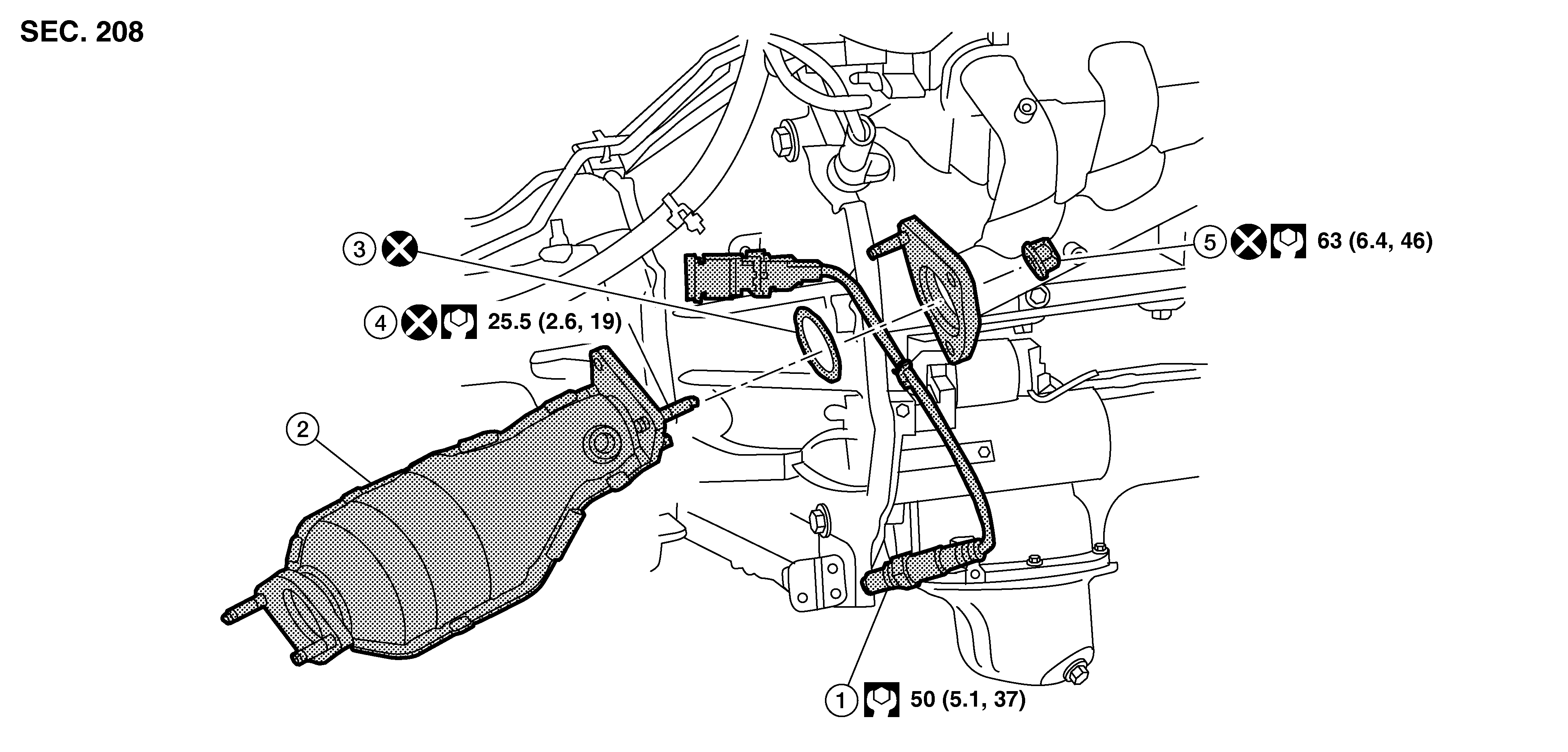

1. |
Air fuel ratio sensor 1 |
2. |
Three way catalyst |
3. |
Gasket |
|
4. |
Studs |
5. |
Nuts |
WARNING:
Perform the work when the exhaust and cooling system have cooled sufficiently.
NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
