Removal and Installation (Exhaust Manifold): Installation

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Courtesy of NISSAN NORTH AMERICA, INC.

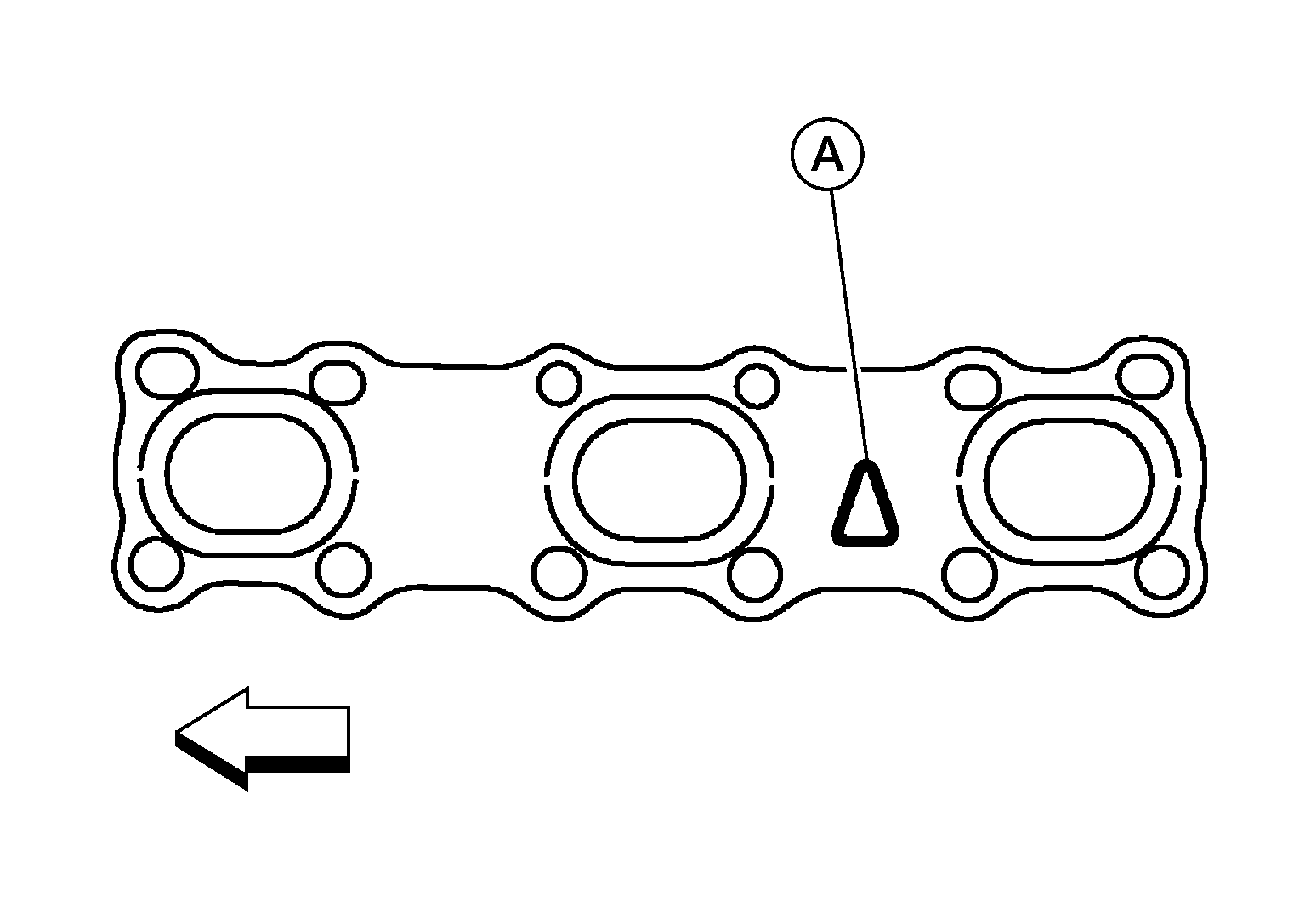

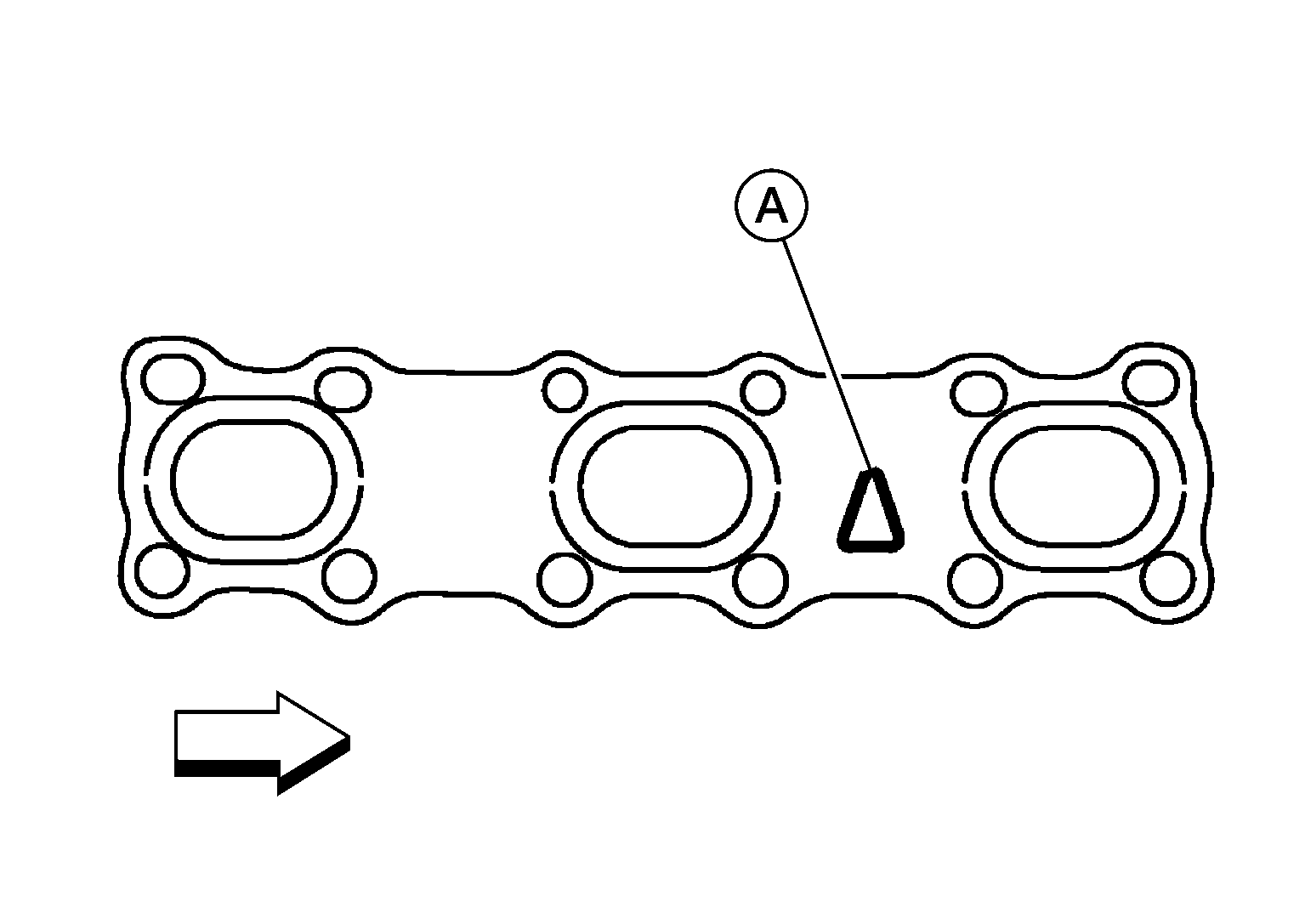

Install the exhaust manifold gasket in direction as shown.
CAUTION: Do not reuse gasket.

: Front

(A): Identification hole

Courtesy of NISSAN NORTH AMERICA, INC.

Install the exhaust manifold studs and tighten to specification (if removed).

Exhaust manifold studs

: 14.7 N.m (1.5 kg-m, 11 ft-lb)

Install exhaust manifold and tighten nuts to specification in numerical order as shown.

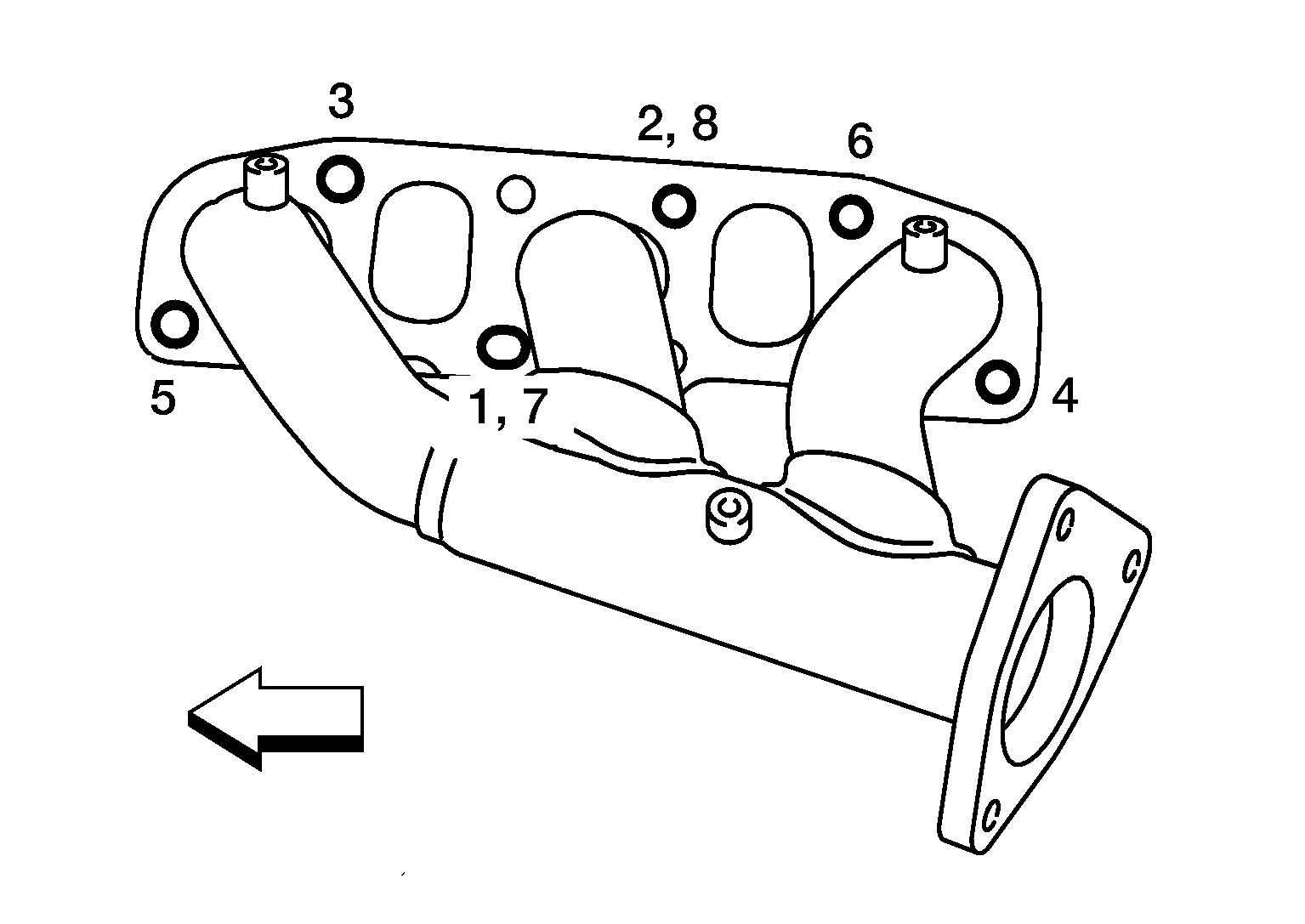

Fig 1: Exhaust Manifold Nut Tightening Sequence (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

: Front

CAUTION: Use new exhaust manifold nuts for installation.

NOTE: Tighten nuts No. 1 and 2 in two steps. The numerical order No. 7 and 8 show second step.

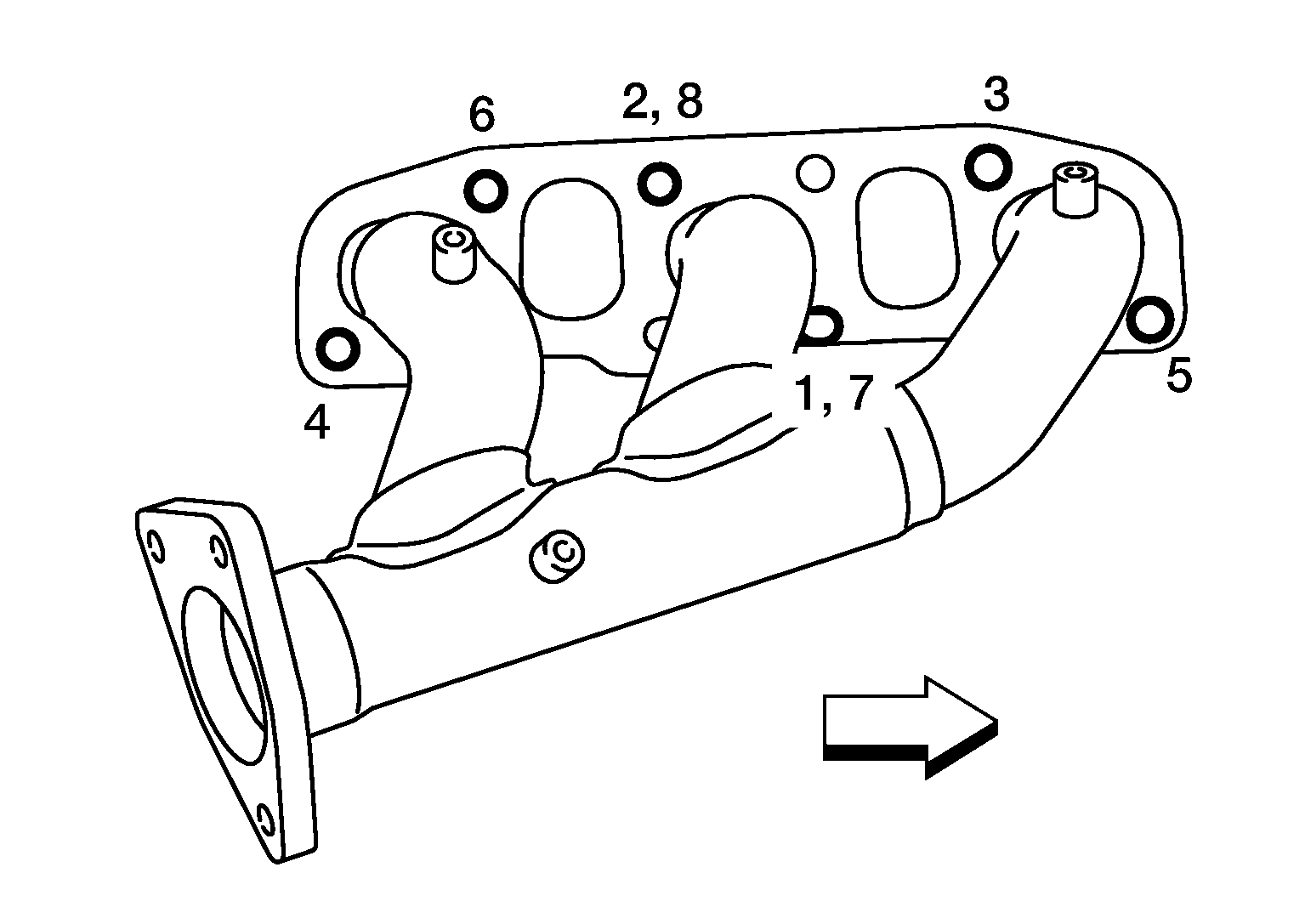

Fig 2: Exhaust Manifold Nut Tightening Sequence (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
