Inspection After Removal
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
Surface Distortion

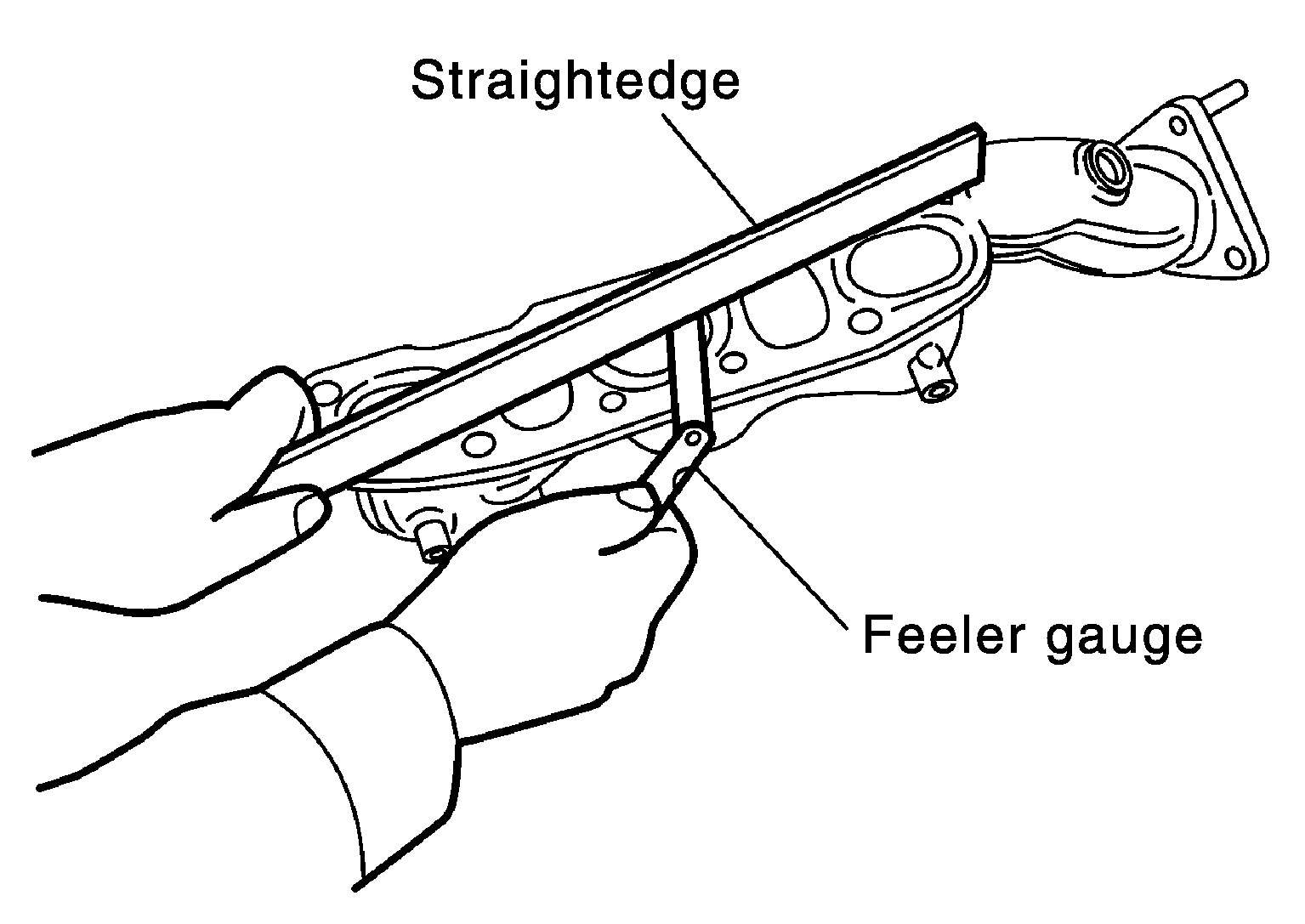

- Check the flatness of each exhaust manifold flange surface using suitable tools.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Limit
|
: 0.3 mm (0.012 in)
|
- Replace the exhaust manifold if the surface distortion exceeds the limit.
