Exploded View

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

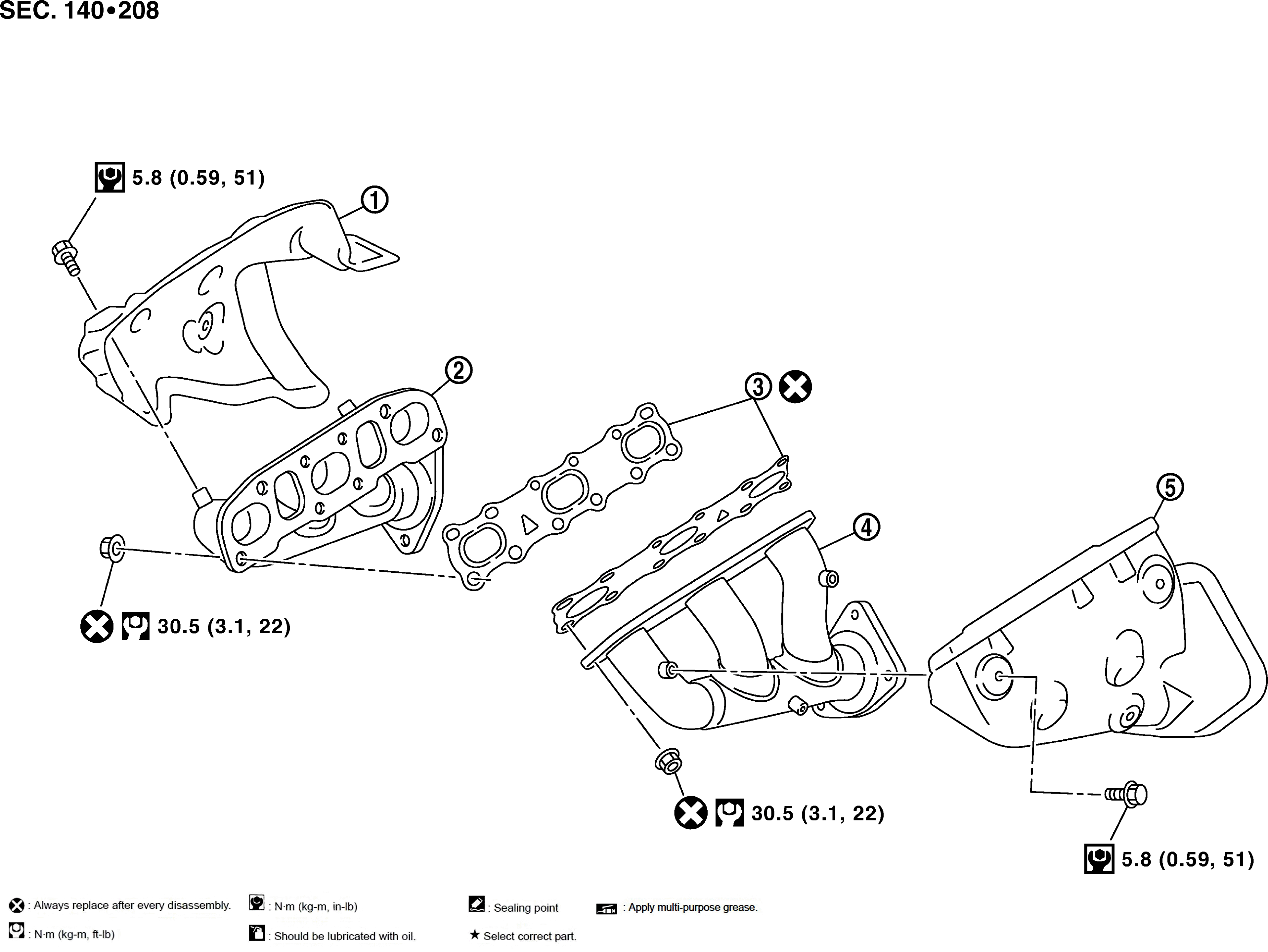

Fig 1: Exhaust Manifold And Three Way Catalyst Components With Torque Specifications
GNSAWBIA1071GB-071Courtesy of NISSAN NORTH AMERICA, INC.

1.

Exhaust manifold cover (RH)

2.

Exhaust manifold (RH)

3.

Gasket

4.

Exhaust manifold (LH)

5.

Exhaust manifold cover (LH)
