Exploded View

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

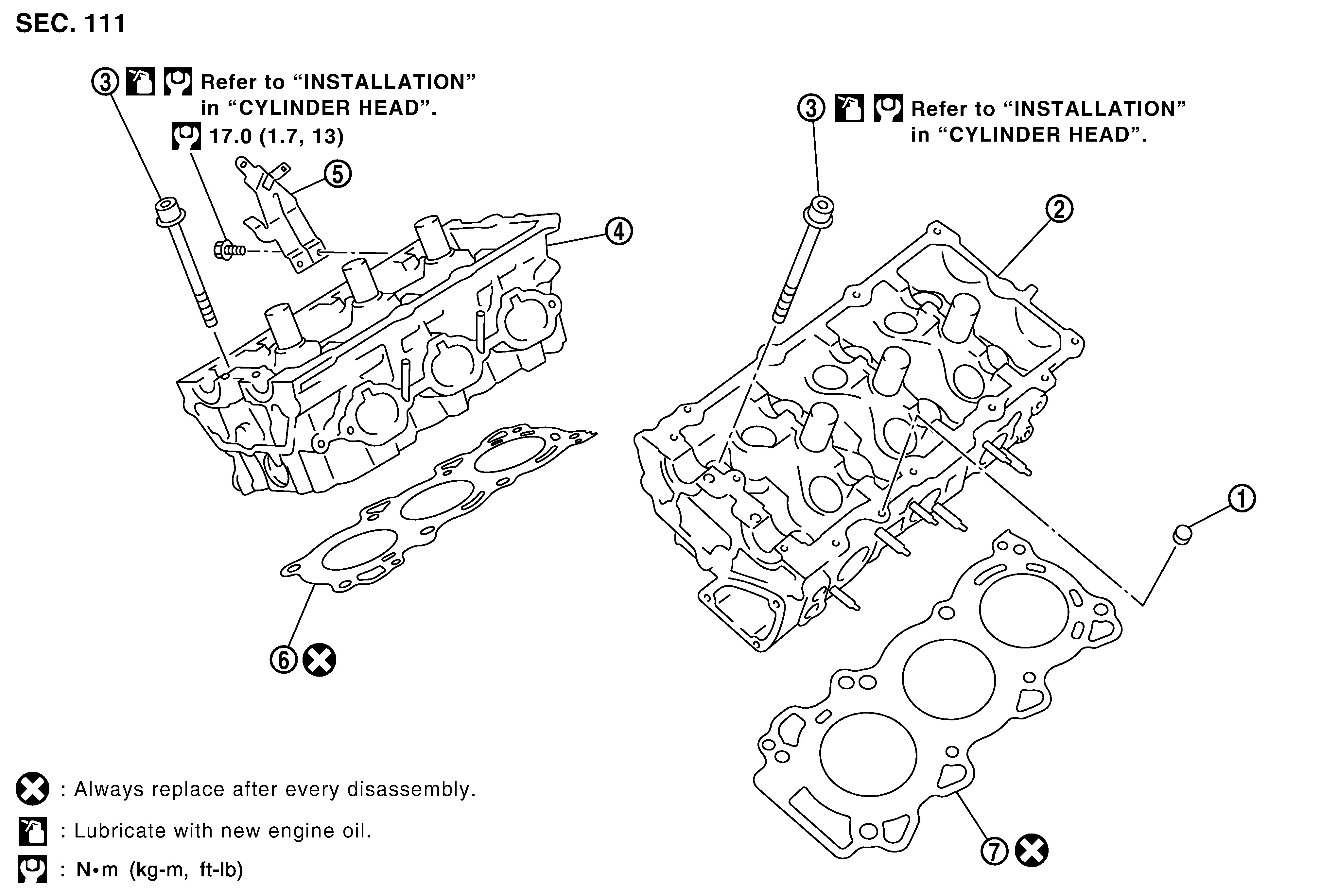

Fig 1: Cylinder Head Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rubber plug	2.	Cylinder head (left bank)	3.	Cylinder head bolt
4.	Cylinder head (right bank)	5.	Harness bracket	6.	Cylinder head gasket (right bank)
7.	Cylinder head gasket (left bank)

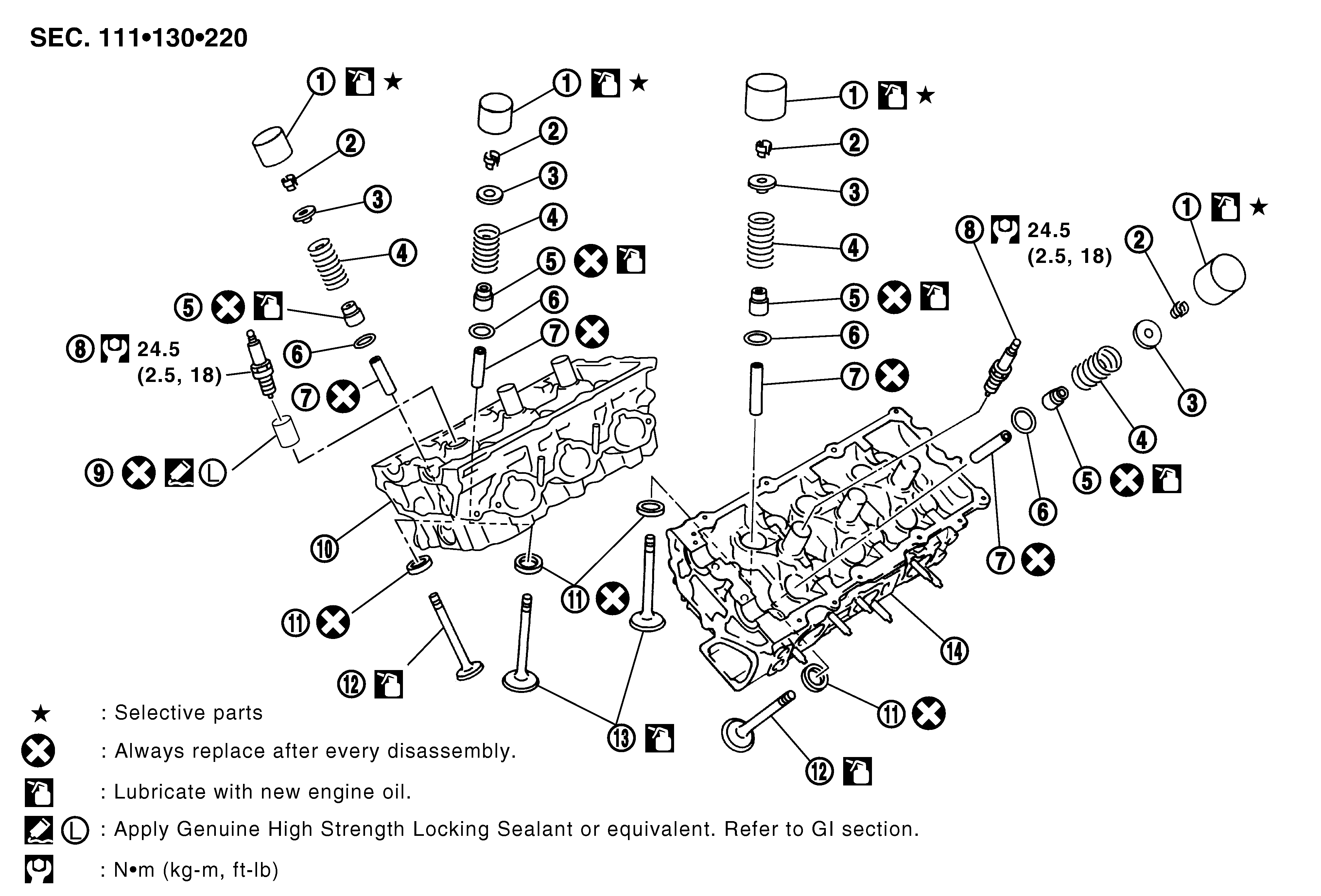

Fig 1: Cylinder Head Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Valve lifter	2.	Valve collet	3.	Valve spring retainer
4.	Valve spring	5.	Valve oil seal	6.	Valve spring seat
7.	Valve guide	8.	Spark plug	9.	Spark plug tube
10.	Cylinder head (right bank)	11.	Valve seat	12.	Valve (EXH)
13.	Valve (INT)	14.	Cylinder head (left bank)
