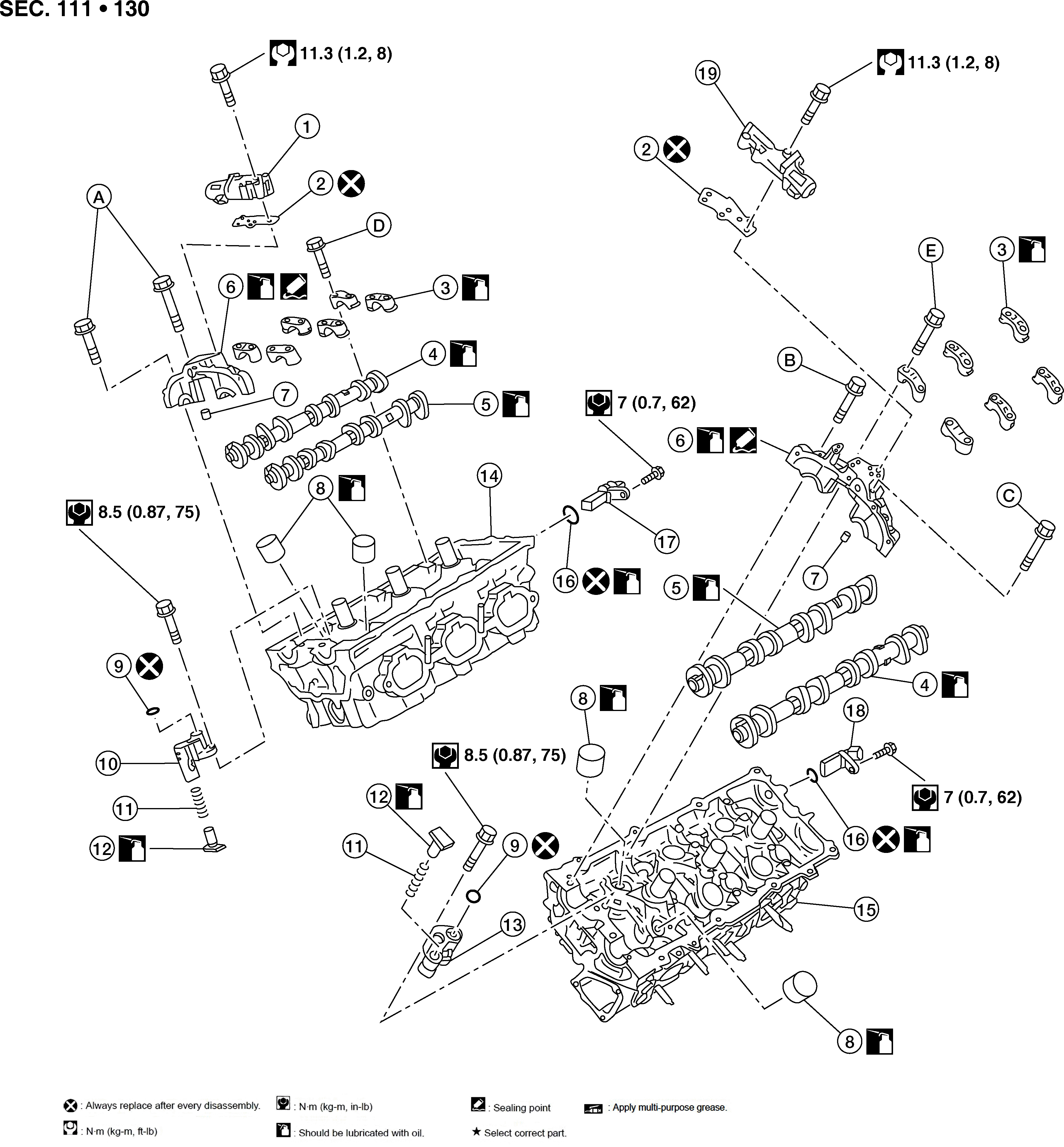

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Intake valve timing control solenoid valve (RH bank) |
2. |
Gasket |
3. |
Camshaft bracket (No. 2 to 4) |
|
4. |
Camshaft (EXH) |
5. |
Camshaft (INT) |
6. |
Camshaft bracket (No. 1) |
|
7. |
Dowel pin |
8. |
Valve lifter |
9. |
O-ring |
|
10. |
Timing chain tensioner (secondary) (RH bank) |
11. |
Spring |
12. |
Plunger |
|
13. |
Timing chain tensioner (secondary) (LH bank) |
14. |
Cylinder head (RH bank) |
15. |
Cylinder head (LH bank) |
|
16. |
O-ring |
17. |
Camshaft position sensor (PHASE) (RH bank) |
18. |
Camshaft position sensor (PHASE) (LH bank) |
|
19. |
Intake valve timing control solenoid valve (LH bank) |
A |
Refer to installation |
B |
Refer to installation |
|
C |
Refer to installation |
D |
Refer to installation |
E |
Refer to installation |
