Exploded View

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

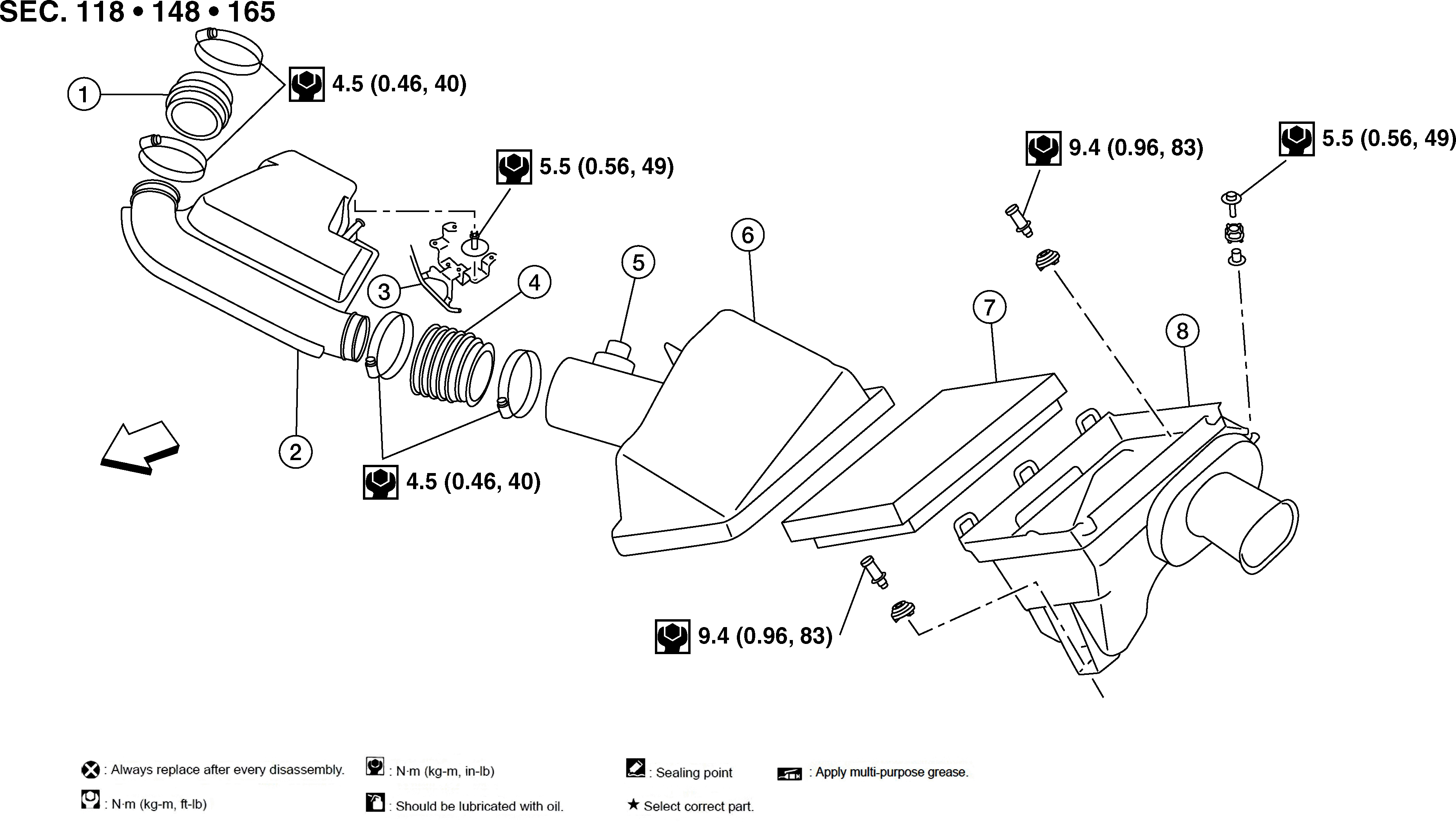

Fig 1: Air Cleaner And Air Duct Components With Torque Specifications
GNSAWBIA0108Z-108Courtesy of NISSAN NORTH AMERICA, INC.

1.

Hose

2.

Air duct and resonator

3.

Bracket

4.

Hose

5.

MAF/IAT sensor

6.

Air cleaner case (upper)

7.

Air cleaner filter

8.

Air cleaner case (lower)

SYMBOL

Front
