Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air duct and resonator assembly. Refer to Removal and Installation .
  2. Remove the crankcase ventilation hose.

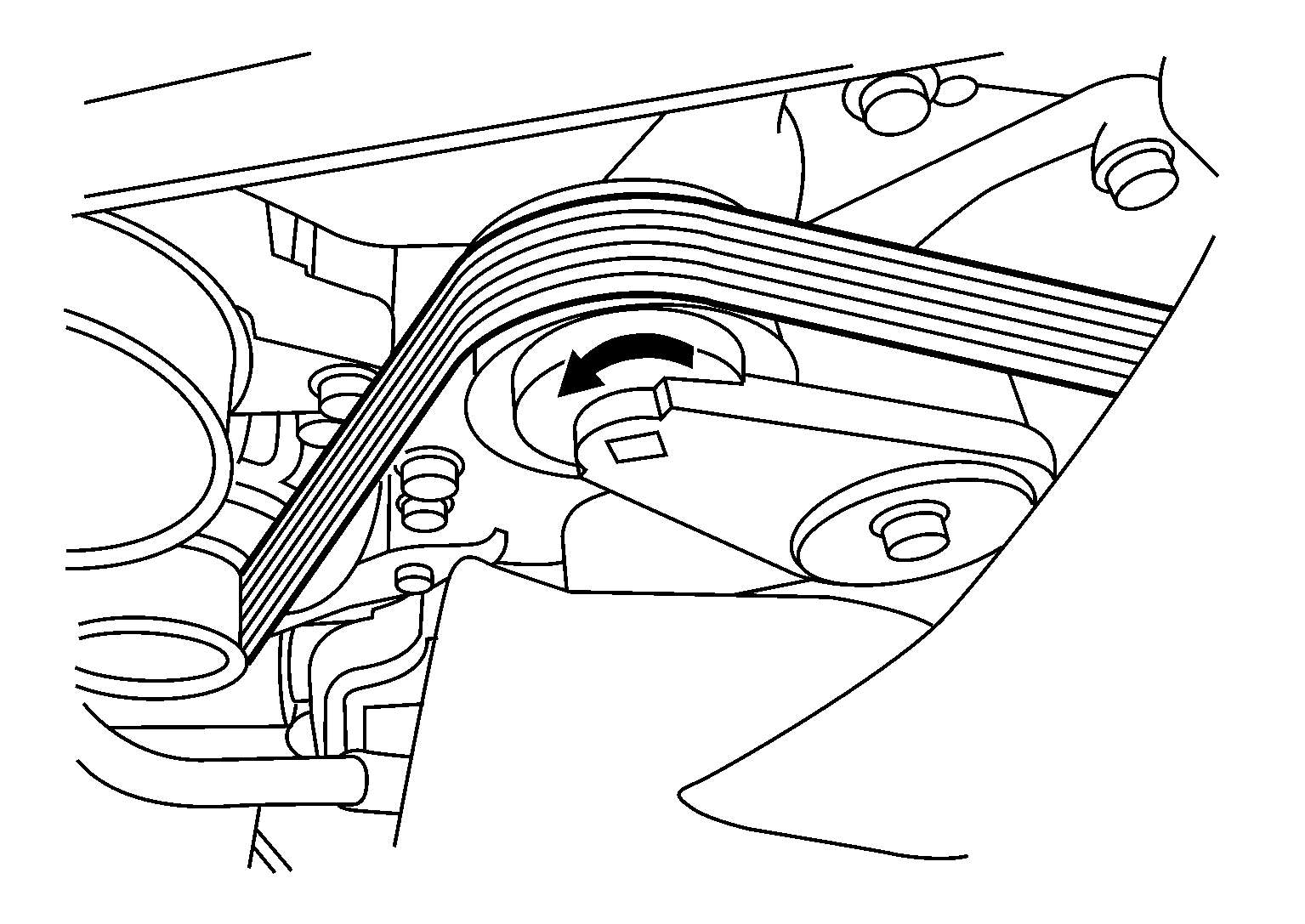

  3. Rotate the drive belt auto-tensioner in the direction of arrow (loosening direction of tensioner) as shown, using suitable tool.
    G04146550Courtesy of NISSAN NORTH AMERICA, INC.
    WARNING: Avoid placing hand in a location where pinching may occur if the tool accidentally comes off.
  4. Remove the drive belt.
