Component Inspection
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK CAMSHAFT POSITION (CMP) SENSOR (PHASE)-1
- Turn ignition switch OFF.
- Loosen the fixing bolt of the sensor.
- Disconnect camshaft position (CMP) sensor (PHASE) harness connector.
- Remove the sensor.

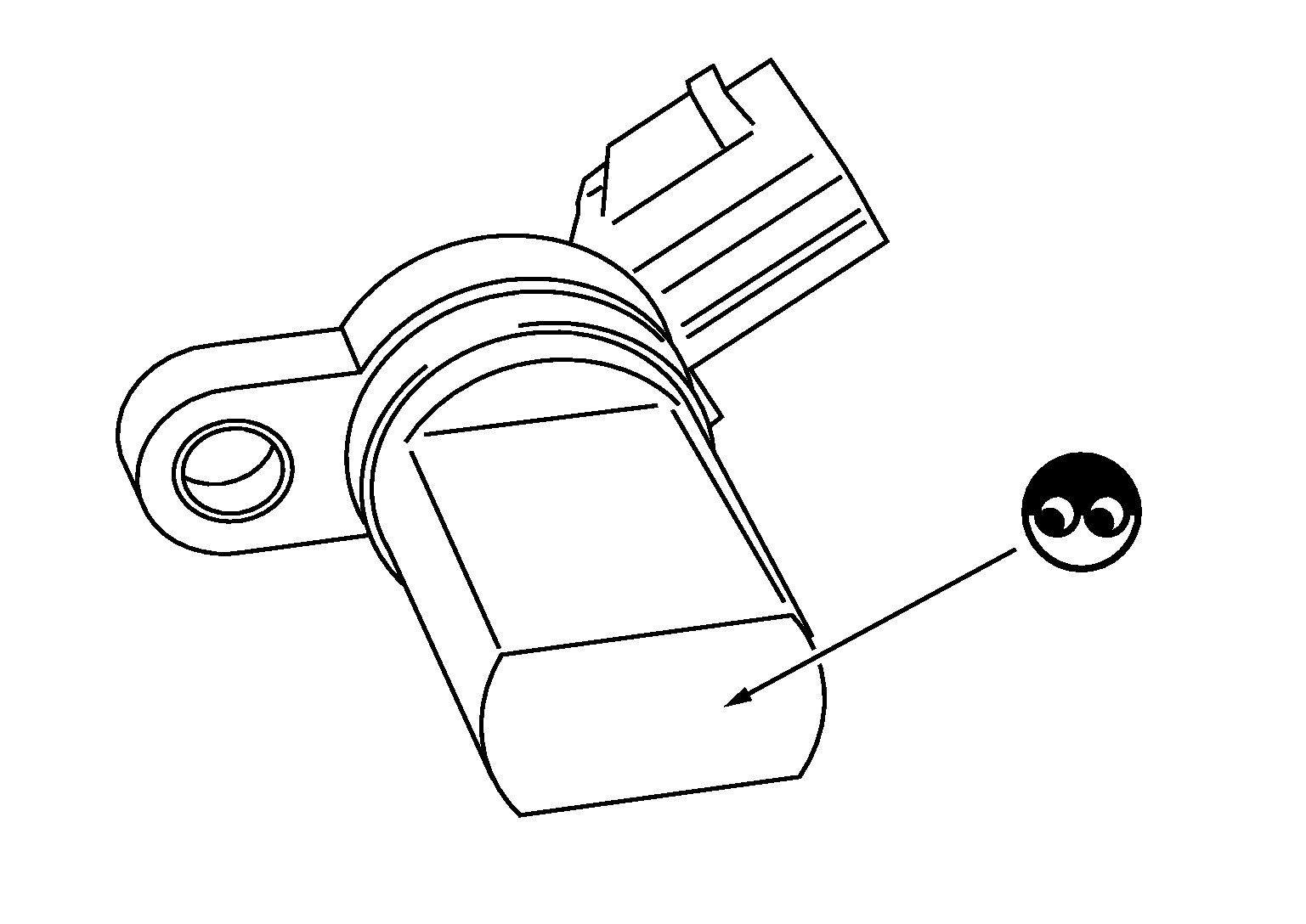

- Visually check the sensor for chipping.
Is the inspection result normal?
YES
GO TO 2.
NO
Replace CMP sensor (PHASE).
- CHECK CMP SENSOR (PHASE)-2
Check the resistance CMP sensor (PHASE) terminals as per the following.
CMP sensor (PHASE)
Resistance [ Ohm at 25 deg.C (77 deg.F)]
+
-
Terminals (Polarity)
1
2
Except 0 or INF.
3
2
3
Is the inspection result normal?
YES
INSPECTION END
NO
Replace CMP sensor (PHASE). Refer to Removal and Installation .
