DTC Diagnosis Procedure

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK STARTING SYSTEM

    Turn ignition switch to START position.

    Does the engine turn over? Does the starter motor operate?

    YES

    GO TO 2.

    NO

    Check starting system. (Refer to Work Flow .)

  2. CHECK CAMSHAFT POSITION (CMP) SENSOR (PHASE) POWER SUPPLY
    1. Disconnect camshaft position (CMP) sensor (PHASE) harness connector.
    2. Turn ignition switch ON.
    3. Check the voltage between CMP sensor (PHASE) harness connector and ground.

      +

      -

      Voltage

      (Approx.)

      CMP sensor (PHASE)

      Bank

      Connector

      Terminal

      1

      F66

      3

      Ground

      Battery voltage

    Is the inspection result normal?

    YES

    GO TO 4.

    NO

    GO TO 3.

  3. CHECK CMP SENSOR (PHASE) POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect IPDM E/R harness connector.
    3. Check the continuity between CMP sensor (PHASE) harness connector and IPDM E/R harness connector.

      +

      -

      Continuity

      CMP sensor (PHASE)

      IPDM E/R

      Bank

      Connector

      Terminal

      Connector

      Terminal

      1

      F66

      3

      E119

      4

      Existed

    Is the inspection result normal?

    YES

    Perform the trouble diagnosis for power supply circuit.

    NO

    Repair or replace error-detected parts.

  4. CHECK CMP SENSOR (PHASE) GROUND CIRCUIT
    1. Turn ignition switch OFF.
    2. Check the continuity between CMP sensor (PHASE) harness connector and ground.

      +

      -

      Continuity

      CMP sensor (PHASE)

      Bank

      Connector

      Terminal

      1

      F66

      1

      Ground

      Existed

    3. Also check harness for short to power.

    Is the inspection result normal?

    YES

    GO TO 5.

    NO

    Repair or replace error-detected parts.

  5. CHECK CMP SENSOR (PHASE) INPUT SIGNAL CIRCUIT
    1. Disconnect ECM harness connector.
    2. Check the continuity between CMP sensor (PHASE) harness connector and ECM harness connector.

      +

      -

      Continuity

      CMP sensor (PHASE)

      ECM

      Bank

      Connector

      Terminal

      Connector

      Terminal

      1

      F66

      2

      F77

      84

      Existed

    3. Also check harness for short to ground and short to power.

    Is the inspection result normal?

    YES

    GO TO 6.

    NO

    Repair or replace error-detected parts.

  6. CHECK CAMSHAFT POSITION SENSOR (PHASE)

    Refer to Component Inspection .

    Is the inspection result normal?

    YES

    GO TO 7.

    NO

    Replace malfunctioning camshaft position sensor (PHASE).

  7. CHECK CAMSHAFT (INTAKE)

    Check the following.

    • Accumulation of debris to the signal plate of camshaft front end

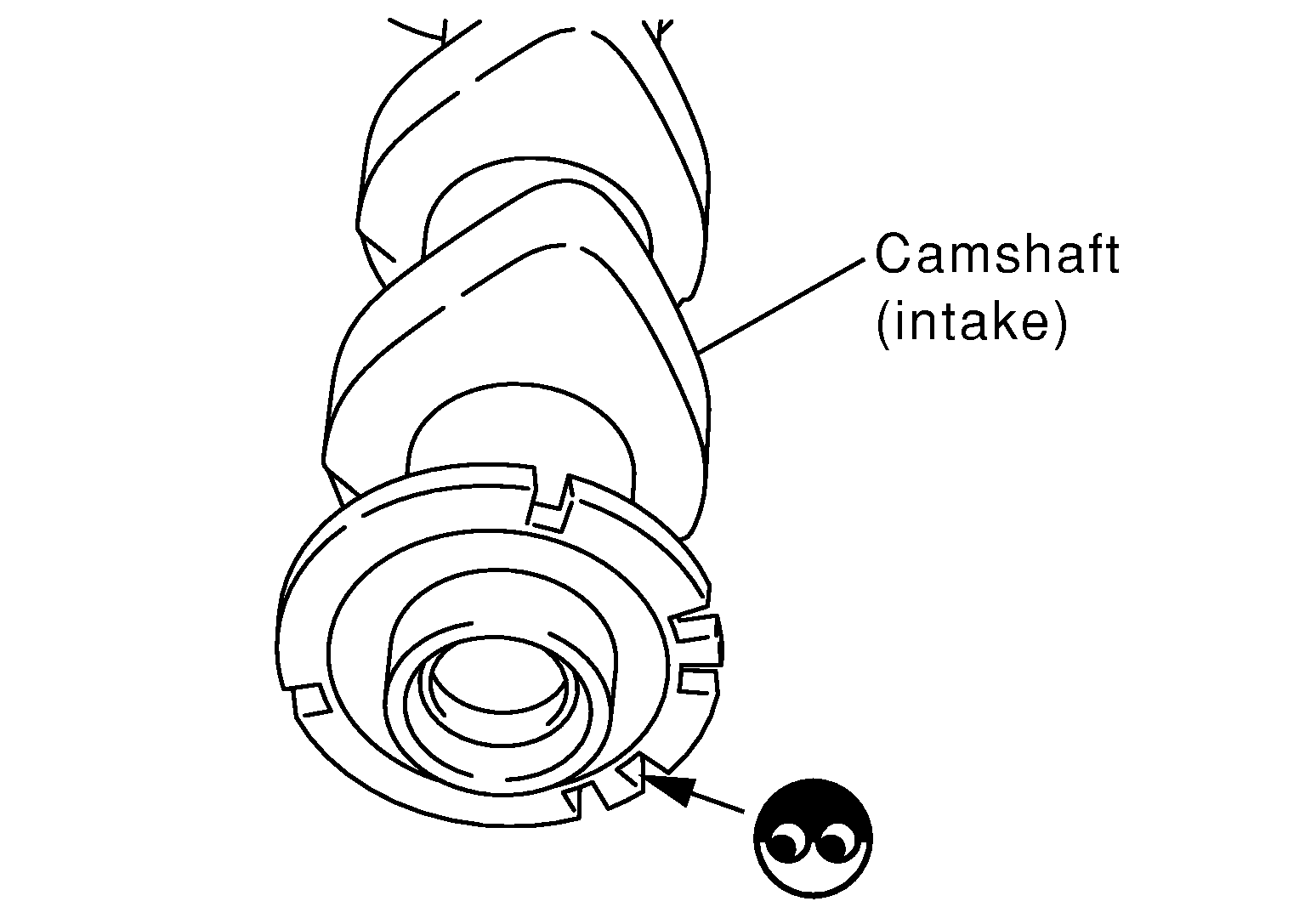

      G04073791Courtesy of NISSAN NORTH AMERICA, INC.
    • Chipping signal plate of camshaft front end

    Is the inspection result normal?

    YES

    Check intermittent incident. Refer to Intermittent Incident .

    NO

    Remove debris and clean the signal plate of camshaft front end or replace camshaft.
